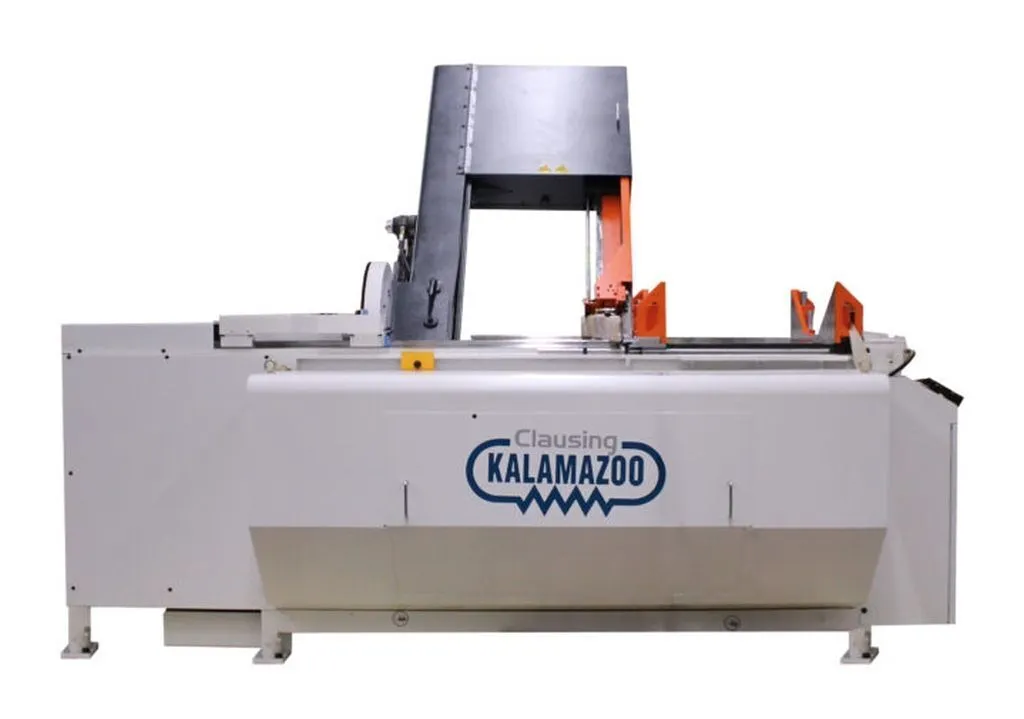

New 2025 Clausing Kalamazoo VG510SA Vertical Tilt Head Bandsaw "In Stock Now"
Have one to sell?
ConditionNew
1 available
New
Introducing the 2025 Clausing Kalamazoo VG510SA Vertical Tilt Head Bandsaw. Experience precision with a 7.5 hp motor, 20" max vise, and hydraulic features. Cut effortlessly with carbide guides and coolant system. Ideal for diverse material handling.
Specifications:
• Machine Style..........Vertical Tilt Head Saw
• Drive Type.......... Motor to Gearbox
• Maximum Cutting Capacity 0 ° frame cant.......... 5 ° frame cant
- 90° Rectangle (inch).......... 20 x 26.4.......... 20 x 24
- 45° Rectangle Left (inch).......... 20 x 18.3.......... 20 x 16.7
- 60° Rectangle Left (inch).......... 20 x 12.8.......... 20 x 11.8
- 45° Rectangle Right (inch).......... 20 x 17.1.......... 20 x 15.7
- 60° Rectangle Right (inch).......... 20 x 10.4.......... 20 x 10
• Maximum Vise Opening (inch)..........20
• Blade Speed ft/min..........66 – 264
• Blade Size (inch)..........205.9 x 1.25 x 0.043
• Blade Tension..........Hydraulic Controlled
• Blade Guide..........Tungsten Carbide
• Guide Arm..........Hydraulic Positioning on Linear Guide
• Saw Blade Drive Motor Horsepower..........7.5
• Hydraulic Motor Horsepower..........1
• Hydraulic Tank Capacity (gal)..........22.1
• Hydraulic Output Pressure (PSI)..........540 – 640
• Coolant Pump Horsepower..........1/4
• Coolant Tank Capacity (gal)..........34
• Head Feed Range (lb/ft)..........0 – 132
• Work Table Size (inch)..........33 x 20
• Floor Space Required (WxDxH inch)..........98.5 x 102.4 x 98.5
• Machine Weight (lbs.)..........3795
Machine Features:
• Powerful 7.5 Hp Drive Motor
• Inverter variable speed drive
• Left and Right duel hydraulic rack gear vises are operated from the control panel. Independent operation of the left and right jaw or both together
• Hydraulic pressure gauges are mounted in the control panel. This lets the operator easily adjust blade cutting pressure and vise clamping pressure
• Solid carbide blade guides
• Flood coolant system
• Hydraulic head tilt operation from 90 to 60 degrees left or right with digital display of miter angle 0.1 degree accuracy
• Hydraulic guide arm positioning for proper work height material
• Hydraulic blade tension
• Optional roller tables available
• 2 year limited warranty
Introducing the 2025 Clausing Kalamazoo VG510SA Vertical Tilt Head Bandsaw. Experience precision with a 7.5 hp motor, 20" max vise, and hydraulic features. Cut effortlessly with carbide guides and coolant system. Ideal for diverse material handling.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
The Vertical Tilt Head Saw comes with a heavy duty cast iron work table with two way tilt (60°L & 60°R), dual (left/right) hydraulic vises for solid work piece clamping. 7.5 Hp Blade drive motor and 1 Hp hydraulic system.
Front mounted control panel controls all sawing functions such as blade speed, frame feed speed, hydraulic tilt, hydraulic left or right vise clamping, hydraulic guide arm height adjustment, start/stop with the HMI touch screen.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine. 230 or 460 voltage, other voltages will need a transformer.
Imperial
| Throat | 20" |
| Work Height | 26.4" |
| Power | 7.5 hp |
| Blade Width | 1.25" |
| Blade Length | 205.9" |
| FPM | 264 |
| Dimensions | 98.5" x 102.4"x 98.5" |
| Weight | 3,795Lbs. |
Specifications:
• Machine Style..........Vertical Tilt Head Saw
• Drive Type.......... Motor to Gearbox
• Maximum Cutting Capacity 0 ° frame cant.......... 5 ° frame cant
- 90° Rectangle (inch).......... 20 x 26.4.......... 20 x 24
- 45° Rectangle Left (inch).......... 20 x 18.3.......... 20 x 16.7
- 60° Rectangle Left (inch).......... 20 x 12.8.......... 20 x 11.8
- 45° Rectangle Right (inch).......... 20 x 17.1.......... 20 x 15.7
- 60° Rectangle Right (inch).......... 20 x 10.4.......... 20 x 10
• Maximum Vise Opening (inch)..........20
• Blade Speed ft/min..........66 – 264
• Blade Size (inch)..........205.9 x 1.25 x 0.043
• Blade Tension..........Hydraulic Controlled
• Blade Guide..........Tungsten Carbide
• Guide Arm..........Hydraulic Positioning on Linear Guide
• Saw Blade Drive Motor Horsepower..........7.5
• Hydraulic Motor Horsepower..........1
• Hydraulic Tank Capacity (gal)..........22.1
• Hydraulic Output Pressure (PSI)..........540 – 640
• Coolant Pump Horsepower..........1/4
• Coolant Tank Capacity (gal)..........34
• Head Feed Range (lb/ft)..........0 – 132
• Work Table Size (inch)..........33 x 20
• Floor Space Required (WxDxH inch)..........98.5 x 102.4 x 98.5
• Machine Weight (lbs.)..........3795
Machine Features:
• Powerful 7.5 Hp Drive Motor
• Inverter variable speed drive
• Left and Right duel hydraulic rack gear vises are operated from the control panel. Independent operation of the left and right jaw or both together
• Hydraulic pressure gauges are mounted in the control panel. This lets the operator easily adjust blade cutting pressure and vise clamping pressure
• Solid carbide blade guides
• Flood coolant system
• Hydraulic head tilt operation from 90 to 60 degrees left or right with digital display of miter angle 0.1 degree accuracy
• Hydraulic guide arm positioning for proper work height material
• Hydraulic blade tension
• Optional roller tables available
• 2 year limited warranty
