New 2025 OB7-Stretch Collaborative Robot

New 2025 OB7-Stretch Collaborative Robot

Have one to sell?
(440) 359-2655
leads@wigglesworth.com
ConditionNew
100 available
Have one to sell?

Overview

Type:
Collaborative Robot
Manufacturer:
PRODUCTIVE ROBOTICS
Model:
OB7-Stretch
Condition:
New OEM Stock
Year:
2025
Stock #:
12960
Status:
For Sale

Description

Introducing the new 2025 OB7-Stretch Collaborative Robot by Productive Robotics. With 7-axis reach, a 1.25m span, and 4 kg payload, it excels in diverse tasks. Zero programming needed—simply teach by demonstration. Ideal for flexible industrial applications.

# Axis77
Payload4 kg8.8 lb
Horizontal Reach1.25"31.75 mm
Reach1.25m1.25m
Repeatability+/- 0.1mm ~ .004"+/- 0.1mm ~ .004"
Speed0-2+ m/s0-2+ m/s
IP Class6161
Joint Ranges+/- 360 Degrees (all)+/- 360 Degrees (all)
ProgrammingNo Programming Learns by DemonstrationNo Programming Learns by Demonstration
SafetyISO 10218-1 CompliantISO 10218-1 Compliant
Robot Mounting Flange Diameter220 mm: OB7220 mm: OB7
Gripper Mounting Flange:ISO 9409-1-50-4-M6ISO 9409-1-50-4-M6
Working Temperature:0-37 Celsius 32-100 Fahrenheit0-37 Celsius 32-100 Fahrenheit
Power Source100 - 240 VAC 50-60hz100 - 240 VAC 50-60hz
Uninterruptible Power:10 minutes (robot stopped) for moving robot to new location10 minutes (robot stopped) for moving robot to new location
Power Consumption:OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payloadOB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload
Linear Speed:2m/s max (Dependent on position)2m/s max (Dependent on position)
MountVertical: table/ceiling &/or Horizontal: wallVertical: table/ceiling &/or Horizontal: wall
Weight58 lbs.58 lbs.

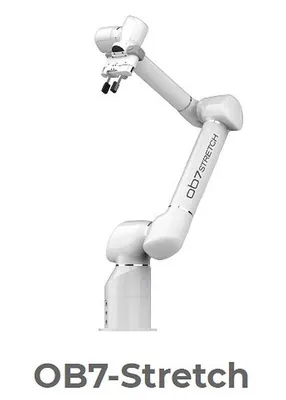

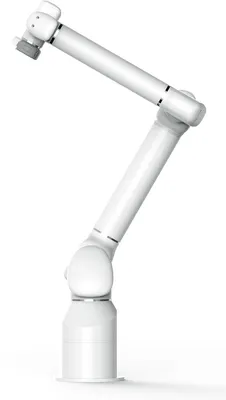

OB7 Stretch Collaborative Robot
Zero programming cobot with extra reach—our most popular for lathes
​Designed and built in the USA with direct factory support

7-axis joints reach where 6-axis cobots can't

Set up in about an hour. Teach a job in minutes.
• Payload: 4 kg (8.8 lbs)
• Reach: 1.25 m (49.2”)
• Weight: 22 kg (58 lbs)
• Mounting Flange: 220 mm (8.6”)
• IP Rating:‭ ‬ IP61

Control Computer:
• IP Rating:‭ ‬ IP30
• Communications‭ ‬Hardware:‭ ‬ Ethernet 100MB
• Protocols:‭ ‬ Ethernet IP‭, ‬TCP/IP‭, ‬Modbus
• Power:‭ ‬ 100-240‭ ‬VAC 50-60‭ ‬HZ

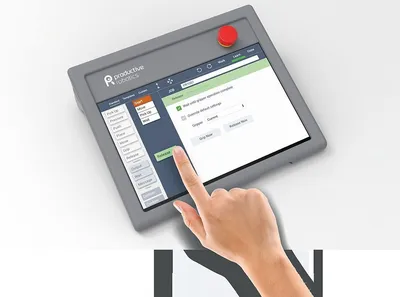

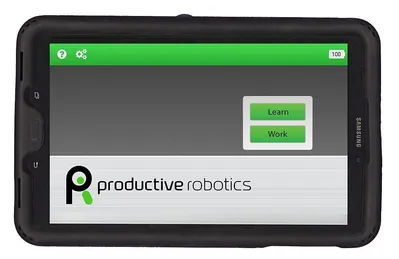

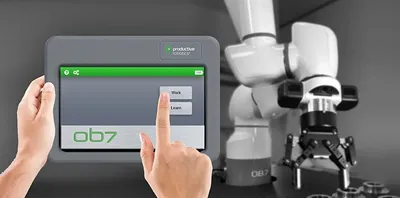

Zero programming tablet:
Using visual‭ ‬‘tiles’‭ ‬and a‭ ‬drag & drop‭ ‬interface‭, ‬control tablet is incredibly intuitive to use.
Specifications
• IP Rating: IP41
• Connection:‭ ‬ USB
• Dimensions:‭ ‬ 253‭ ‬mm x 125‭ ‬mm x 37‭ ‬mm ‭(‬10”‭ ‬x 5”‭ ‬x‭ ‬1.5”‭)‬
• Cable: 5‭ ‬meters‭ (‬16‭ ‬ft‭)‬

USA direct factory support
Fast online support by our welding and robotics experts.
