Equipment
Collaborative Robot
New 2025 OB7-Max 8 Collaborative Robot

New 2025 OB7-Max 8 Collaborative Robot

Have one to sell?
(440) 359-2655
leads@wigglesworth.com
ConditionNew
100 available
Have one to sell?

Overview

Type:
Collaborative Robot
Manufacturer:
PRODUCTIVE ROBOTICS
Model:
OB7-Max 8
Condition:
New OEM Stock
Year:
2025
Stock #:
12962
Status:
For Sale

Description

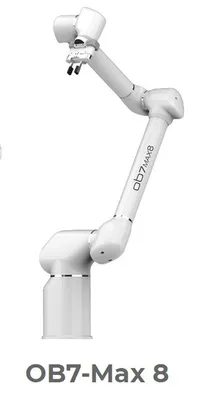

Introducing the new 2025 OB7-Max 8 Collaborative Robot by PRODUCTIVE ROBOTICS. This state-of-the-art cobot offers a 7-axis design with 8 kg payload, 1.7m reach, and intuitive demonstration-based programming. ISO 10218-1 safety compliant, perfect for automation needs.

# Axis77
Payload8 kg17.6 lb
Horizontal Reach1.7 m66.929"
Reach1.7m1.7m
Repeatability+/- 0.1mm ~ .004"+/- 0.1mm ~ .004"
Speed0-2+ m/s0-2+ m/s
IP Class6161
Joint Ranges+/- 360 Degrees (all)+/- 360 Degrees (all)
ProgrammingNo Programming Learns by DemonstrationNo Programming Learns by Demonstration
SafetyISO 10218-1 CompliantISO 10218-1 Compliant
Robot Mounting Flange Diameter250 mm: OB7-Max250 mm: OB7-Max
Gripper Mounting Flange:ISO 9409-1-50-4-M6ISO 9409-1-50-4-M6
Working Temperature:0-37 Celsius 32-100 Fahrenheit0-37 Celsius 32-100 Fahrenheit
Power Source100 - 240 VAC 50-60hz100 - 240 VAC 50-60hz
Uninterruptible Power:10 minutes (robot stopped) for moving robot to new location10 minutes (robot stopped) for moving robot to new location
Power Consumption:OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payloadOB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload
Linear Speed:2m/s max (Dependent on position)2m/s max (Dependent on position)
MountVertical: table/ceiling &/or Horizontal: wallVertical: table/ceiling &/or Horizontal: wall
Weight128 lbs. / 58 kgs.128 lbs. / 58 kgs.

OB7 Max 12 Collaborative Robot
Zero programming cobot with heavy‬ payload capacity
​Designed and built in the USA with direct factory support

7-axis joints reach where 6-axis cobots can't.
Set up in about an hour. Teach a job in minutes.
Payload: 12‭ ‬kg‭ (‬26‭ ‬lbs‭)‬
Reach: 1.3‭ ‬m‭ (‬51.1”‭)‬
Weight: 58‭ ‬kg‭ (‬127‭ ‬lbs‭)‬
Mounting Flange: 250‭ ‬mm‭ (‬9.8”‭)‬

Control Computer:
Specifications
IP Rating:‭ ‬ IP30
Communications‭ ‬Hardware:‭ ‬ Ethernet 100MB
Protocols:‭ ‬ Ethernet IP‭, ‬TCP/IP‭, ‬Modbus
Power:‭ ‬ 100-240‭ ‬VAC 50-60‭ ‬HZ

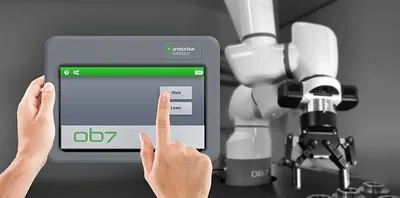

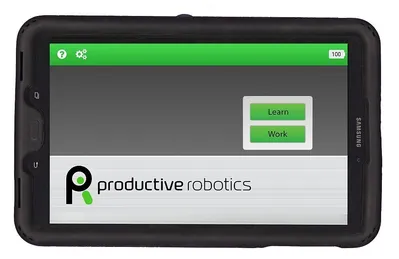

Zero programming tablet:
Using visual‭ ‬‘tiles’‭ ‬and a‭ ‬drag & drop‭ ‬interface‭, ‬control tablet is incredibly intuitive to use.
Specifications
IP Rating: IP41
Connection:‭ ‬ USB
Dimensions:‭ ‬‬10”‭ ‬x 5”‭ ‬x‭ ‬1.5”‭‬
Cable: 5‭ ‬meters‭ (‬16‭ ‬ft‭)‬

USA direct factory support
Fast online support by our welding and robotics experts at our US factory. We speak your language.
