Equipment
Collaborative Robot
New 2025 OB7-Max 16 Collaborative Robot

New 2025 OB7-Max 16 Collaborative Robot

Have one to sell?
(440) 359-2655
leads@wigglesworth.com
ConditionNew
100 available
Have one to sell?

Overview

Type:
Collaborative Robot
Manufacturer:
PRODUCTIVE ROBOTICS
Model:
OB7-Max 16
Condition:
New OEM Stock
Year:
2025
Stock #:
12964
Status:
For Sale

Description

Unlock automation with the new 2025 OB7-Max 16 Collaborative Robot by PRODUCTIVE ROBOTICS. Featuring 7 axes, 16 kg payload, 1m reach, and zero programming. Built in the USA, it's ISO 10218-1 compliant and designed for seamless integration.

# Axis77
Payload16 kg35.3 lb
Horizontal Reach1 m39.37"
Reach1m1m
Repeatability+/- 0.1mm ~ .004"+/- 0.1mm ~ .004"
Speed0-2+ m/s0-2+ m/s
IP Class6161
Joint Ranges+/- 360 Degrees (all)+/- 360 Degrees (all)
ProgrammingNo Programming Learns by DemonstrationNo Programming Learns by Demonstration
SafetyISO 10218-1 CompliantISO 10218-1 Compliant
Robot Mounting Flange Diameter250 mm: OB7-Max250 mm: OB7-Max
Gripper Mounting Flange:ISO 9409-1-50-4-M6ISO 9409-1-50-4-M6
Working Temperature:0-37 Celsius 32-100 Fahrenheit0-37 Celsius 32-100 Fahrenheit
Power Source100 - 240 VAC 50-60hz100 - 240 VAC 50-60hz
Uninterruptible Power:10 minutes (robot stopped) for moving robot to new location10 minutes (robot stopped) for moving robot to new location
Power Consumption:OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payloadOB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload
Linear Speed:2m/s max (Dependent on position)2m/s max (Dependent on position)
MountVertical: table/ceiling &/or Horizontal: wallVertical: table/ceiling &/or Horizontal: wall
Weight127 lbs. / 58 kgs.127 lbs. / 58 kgs.

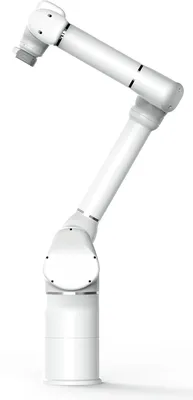

OB7 Max 16 Collaborative Robot
Zero programming cobot with our highest payload capacity
​Designed and built in the USA with direct factory support

7-axis joints reach where 6-axis cobots can't
Set up in about an hour. Teach a job in minutes.

• Payload: 16Kg (35.2 lbs)
• Reach: 1000 mm (39")
• Weight: 58‭ ‬kg‭ (‬127‭ ‬lbs‭)‬
• Mounting Flange: 250‭ ‬mm‭ (‬9.8”‭)‬
• IP Rating:‭ ‬ IP61

Control Computer:
• IP Rating:‭ ‬ IP30
• Communications‭ ‬Hardware:‭ ‬ Ethernet 100MB
• Protocols:‭ ‬ Ethernet IP‭, ‬TCP/IP‭, ‬Modbus
• Power:‭ ‬ 100-240‭ ‬VAC 50-60‭ ‬HZ

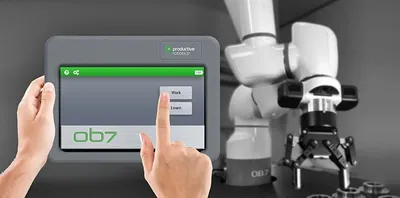

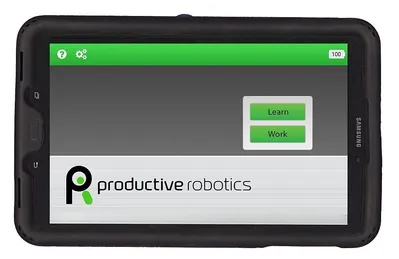

Zero programming tablet:
• Using visual‭ ‬‘tiles’‭ ‬and a‭ ‬drag & drop‭ ‬interface‭, ‬control tablet is incredibly intuitive to use.
• IP Rating: IP41
• Connection:‭ ‬ USB
• Dimensions:‭ ‬ ‭(‬10”‭ ‬x 5”‭ ‬x‭ ‬1.5”‭)‬
• Cable: 5‭ ‬meters‭ (‬16‭ ‬ft‭)‬

USA direct factory support
Fast online support by our welding and robotics experts.
