New 2025 OB7 Collaborative Robot - CNC Tending Package - Mills

New 2025 OB7 Collaborative Robot - CNC Tending Package - Mills

Have one to sell?
(440) 359-2655
leads@wigglesworth.com
ConditionNew
1 available
Have one to sell?

Overview

Type:
Collaborative Robot
Manufacturer:
PRODUCTIVE ROBOTICS
Model:
OB7
Condition:
New OEM Stock
Year:
2025
Stock #:
12965
Status:
For Sale

Description

Discover the future of automation with the all-new 2025 OB7 Collaborative Robot CNC Tending Package by PRODUCTIVE ROBOTICS. Ideal for enhancing productivity, this state-of-the-art robot is ready to transform your workspace. Secure the latest model today.

# Axis77
Payload5 kg11 lb
Horizontal Reach1 m39.37"
Reach1m1m
Repeatability+/- 0.1mm ~ .004"+/- 0.1mm ~ .004"
Speed0-2+ m/s0-2+ m/s
IP Class6161
Joint Ranges+/- 360 Degrees (all)+/- 360 Degrees (all)
ProgrammingNo Programming Learns by DemonstrationNo Programming Learns by Demonstration
SafetyISO 10218-1 CompliantISO 10218-1 Compliant
Robot Mounting Flange Diameter220 mm: OB7220 mm: OB7
Gripper Mounting Flange:ISO 9409-1-50-4-M6ISO 9409-1-50-4-M6
Working Temperature:0-37 Celsius 32-100 Fahrenheit0-37 Celsius 32-100 Fahrenheit
Power Source100 - 240 VAC 50-60hz100 - 240 VAC 50-60hz
Uninterruptible Power:10 minutes (robot stopped) for moving robot to new location10 minutes (robot stopped) for moving robot to new location
Power Consumption:OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payloadOB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload
Linear Speed:2m/s max (Dependent on position)2m/s max (Dependent on position)

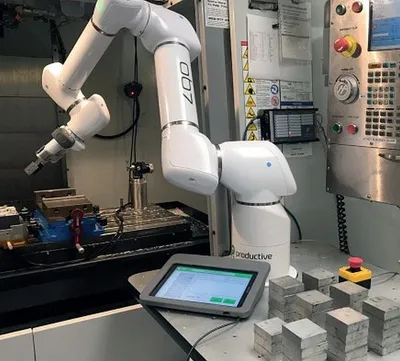

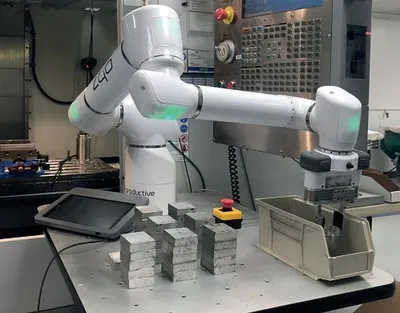

OB7 Collaborative Robot - CNC Tending Package - Mills
The original zero programming, teach-by-touch collaborative robot and the simplest to use—by far.
​Designed and built in the USA with direct factory support.
7-axis joints reach where 6-axis cobots can't.

Set up in about an hour. Teach a job in minutes.
• Payload: 5 kg (11 lbs)
• Reach: 1 m (39.3”)
• IP Rating: IP61
• Weight: 22 kg (58 lbs)
• Mounting Flange: 220 mm (8.6”)

Control Computer:
• IP Rating:‭ ‬ IP30
• Communications‭ ‬Hardware:‭ ‬ Ethernet 100MB
• Protocols:‭ ‬ Ethernet IP‭, ‬TCP/IP‭, ‬Modbus
• Power:‭ ‬ 100-240‭ ‬VAC 50-60‭ ‬HZ

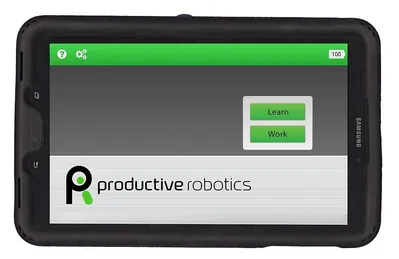

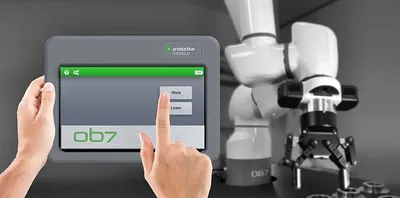

Zero programming tablet:
• Using visual‭ ‬‘tiles’‭ ‬and a‭ ‬drag & drop‭ ‬interface‭, ‬control tablet is incredibly intuitive to use.
• IP Rating: IP41
• Connection:‭ ‬ USB
• Dimensions:‭ ‬ 253‭ ‬mm x 125‭ ‬mm x 37‭ ‬mm ‭(‬10”‭ ‬x 5”‭ ‬x‭ ‬1.5”‭)‬
• Cable: 5‭ ‬meters‭ (‬16‭ ‬ft‭)‬

USA direct factory support
Fast online support by our welding and robotics experts at our US factory. We speak your language.
