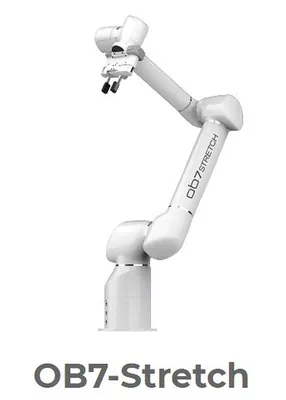

New 2025 OB7-Stretch Collaborative Robot - CNC Tending Package

New 2025 OB7-Stretch Collaborative Robot - CNC Tending Package

Have one to sell?
(440) 359-2655
leads@wigglesworth.com
ConditionNew
100 available
Have one to sell?

Overview

Type:
Collaborative Robot
Manufacturer:
PRODUCTIVE ROBOTICS
Model:
OB7-Stretch
Condition:
New - In-Stock
Year:
2025
Stock #:
12966
Status:
For Sale

Description

Discover the future of automation with the all-new 2025 OB7 Collaborative Robot CNC Tending Package by PRODUCTIVE ROBOTICS. Ideal for enhancing productivity, this state-of-the-art robot is ready to transform your workspace. Secure the latest model today.

# Axis77
Payload4 kg8.8 lb
Horizontal Reach1.2 m49.213"
Reach1.25m1.25m
Repeatability+/- 0.1mm ~ .004"+/- 0.1mm ~ .004"
Speed0-2+ m/s0-2+ m/s
IP Class6161
Joint Ranges+/- 360 Degrees (all)+/- 360 Degrees (all)
ProgrammingNo Programming Learns by DemonstrationNo Programming Learns by Demonstration
SafetyISO 10218-1 Compliant ; Power and force limitedISO 10218-1 Compliant ; Power and force limited
Robot Mounting Flange Diameter220 mm: OB7220 mm: OB7
Gripper Mounting Flange:ISO 9409-1-50-4-M6ISO 9409-1-50-4-M6
Working Temperature:0-37 Celsius 32-100 Fahrenheit0-37 Celsius 32-100 Fahrenheit
Power Source100 - 240 VAC 50-60hz100 - 240 VAC 50-60hz
Uninterruptible Power:10 minutes (robot stopped) for moving robot to new location10 minutes (robot stopped) for moving robot to new location
Power Consumption:OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payloadOB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload
Linear Speed:2m/s max (Dependent on position)2m/s max (Dependent on position)
Weight58 lbs.58 lbs.

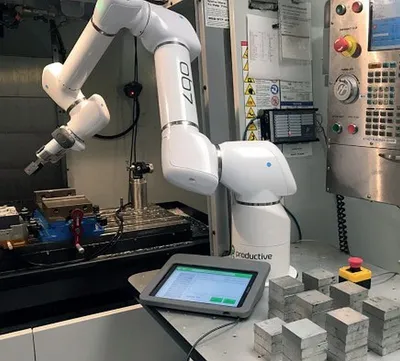

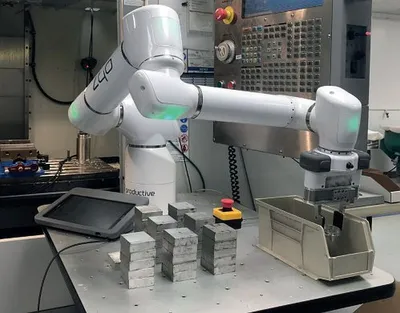

OB7 Collaborative Robot - CNC Tending Package
The original zero programming, teach-by-touch collaborative robot and the simplest to use—by far.
​Designed and built in the USA with direct factory support

• # of Axis:.................... 7
• Payload:..................... 8.8 lb
• Horizontal Reach:...... 1.25m
• Reach:........................ 1.25m
• Repeatability:.............. +/- 0.1mm ~ .004"
• Speed:......................... 0-2+ m/s
• IP Class 61
• Joint Ranges:............. +/- 360 Degrees (all)
• Programming:............ No Programming Learns by Demonstration
• Safety:........................ ISO 10218-1 Compliant
• Robot Mounting Flange Diameter: 220 mm: OB7

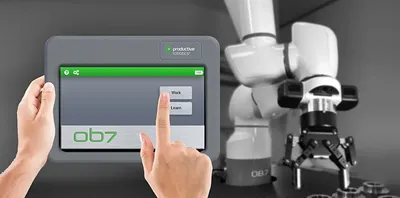

Zero programming tablet:
• Using visual‭ ‬‘tiles’‭ ‬and a‭ ‬drag & drop‭ ‬interface‭, ‬control tablet is incredibly intuitive to use.
• Specifications
• IP Rating: IP41
• Connection:‭ ‬ USB
• Dimensions:‭ ‬ 253‭ ‬mm x 125‭ ‬mm x 37‭ ‬mm ‭(‬10”‭ ‬x 5”‭ ‬x‭ ‬1.5”‭)‬
• Cable: 5‭ ‬meters‭ (‬16‭ ‬ft‭)‬

USA direct factory support
Fast online support by our welding and robotics experts at our US factory. We speak your language.
