New 2025 OB7-Max 16 Collaborative Robot - CNC Tending Package
Have one to sell?
ConditionNew
1 available
New
Discover the future of automation with the all-new 2025 OB7 Max 16 Collaborative Robot CNC Tending Package by PRODUCTIVE ROBOTICS. Ideal for enhancing productivity, this state-of-the-art robot is ready to transform your workspace. Secure the latest model today.
Control Computer:
Specifications
IP Rating: IP30
Communications Hardware: Ethernet 100MB
Protocols: Ethernet IP, TCP/IP, Modbus
Power: 100-240 VAC 50-60 HZ

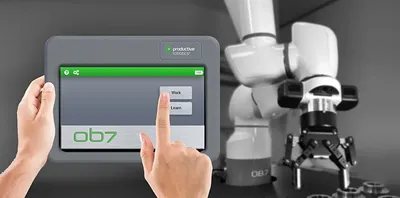

Zero programming tablet:
Using visual ‘tiles’ and a drag & drop interface, control tablet is incredibly intuitive to use.
Specifications
IP Rating: IP41
Connection: USB
Dimensions: 253 mm x 125 mm x 37 mm (10” x 5” x 1.5”)
Cable: 5 meters (16 ft)
USA direct factory support
Fast online support by our welding and robotics experts at our US factory. We speak your language.
Discover the future of automation with the all-new 2025 OB7 Max 16 Collaborative Robot CNC Tending Package by PRODUCTIVE ROBOTICS. Ideal for enhancing productivity, this state-of-the-art robot is ready to transform your workspace. Secure the latest model today.
T.R. Wigglesworth Machinery Company is proud to offer the latest generation of Productive Robots.
OB7 ROBOTS ARE THE NEWEST GENERATION OF COLLABORATIVE ROBOTS
PROVIDING UNMATCHED AUTOMATION PRODUCTIVITY, FLEXIBILITY AND ACCURACY FOR BUSINESSES OF ALL SIZES.
OB7 robots bring home the competitive edge for manufacturers
across all industries including defense, aerospace, electronics,
medicine, food, and others. By providing consistent
repeatable operation in production tasks, OB7 eliminates
errors, reduces scrap, and improves throughput. From
high volume production to short runs and high mix/low
volume jobs, OB7 automates any task you throw at it.
With zero complicated software programming, automation
is fast and simple. Your existing staff can teach OB7
to automate in minutes.
Automation for all
OB7 collaborative robots (cobots) provide high quality, safe automation for small and large businesses alike, for practically any task that needs to be repeated—including machine tending, dispensing, finishing processes, and far more.
By ensuring that every second counts between cycles and processes while maintaining total accuracy, OB7 will provide fast gains in throughput, productivity, and consistency in production.
Zero programming means no coding, classes or special training needed. Anyone can teach OB7 to do hundreds of complex automation jobs simply and quickly. Just ‘show’ OB7 and it learns.
Imperial
| # Axis | 7 |
| Payload | 16 kg |
| Horizontal Reach | 1 m |
| Reach | 1m |
| Repeatability | +/- 0.1mm ~ .004" |
| Speed | 0-2+ m/s |
| IP Class | 61 |
| Joint Ranges | +/- 360 Degrees (all) |
| Programming | No Programming Learns by Demonstration |
| Safety | ISO 10218-1 Compliant ; Power and force limited |
| Robot Mounting Flange Diameter | 250 mm: OB7-Max |
| Gripper Mounting Flange: | ISO 9409-1-50-4-M6 |
| Working Temperature: | 0-37 Celsius 32-100 Fahrenheit |
| Power Source | 100 - 240 VAC 50-60hz |
| Uninterruptible Power: | 10 minutes (robot stopped) for moving robot to new location |
| Power Consumption: | OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload |
| Linear Speed: | 2m/s max (Dependent on position) |
| Mount | Included |
| Weight | 127 lbs. |
Control Computer:
Specifications
IP Rating: IP30
Communications Hardware: Ethernet 100MB
Protocols: Ethernet IP, TCP/IP, Modbus
Power: 100-240 VAC 50-60 HZ

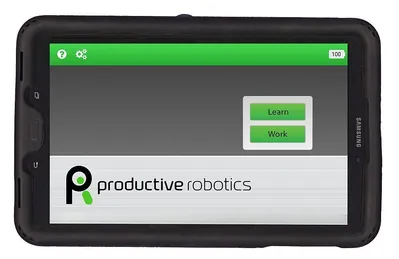

Zero programming tablet:
Using visual ‘tiles’ and a drag & drop interface, control tablet is incredibly intuitive to use.
Specifications
IP Rating: IP41
Connection: USB
Dimensions: 253 mm x 125 mm x 37 mm (10” x 5” x 1.5”)
Cable: 5 meters (16 ft)
USA direct factory support
Fast online support by our welding and robotics experts at our US factory. We speak your language.
