New 2025 OB7-Max 12 Collaborative Robot - CNC Tending Package

New 2025 OB7-Max 12 Collaborative Robot - CNC Tending Package

Have one to sell?
(440) 359-2655
leads@wigglesworth.com
ConditionNew
100 available
Have one to sell?

Overview

Type:
Collaborative Robot
Manufacturer:
PRODUCTIVE ROBOTICS
Model:
OB7-Max 12
Condition:
New OEM Stock
Year:
2025
Stock #:
12968
Status:
For Sale

Description

Discover the future of automation with the all-new 2025 OB7 Collaborative Robot CNC Tending Package by PRODUCTIVE ROBOTICS. Ideal for enhancing productivity, this state-of-the-art robot is ready to transform your workspace. Secure the latest model today.

# Axis77
Payload12 kg26.5 lb
Horizontal Reach1.3 m51.181"
Reach1.3m1.3m
Repeatability+/- 0.1mm ~ .004"+/- 0.1mm ~ .004"
Speed0-2+ m/s0-2+ m/s
IP Class6161
Joint Ranges+/- 360 Degrees (all)+/- 360 Degrees (all)
ProgrammingNo Programming Learns by DemonstrationNo Programming Learns by Demonstration
SafetyISO 10218-1 Compliant ; Power and force limitedISO 10218-1 Compliant ; Power and force limited
Robot Mounting Flange Diameter250 mm: OB7-Max250 mm: OB7-Max
Gripper Mounting Flange:ISO 9409-1-50-4-M6ISO 9409-1-50-4-M6
Working Temperature:0-37 Celsius 32-100 Fahrenheit0-37 Celsius 32-100 Fahrenheit
Power Source100 - 240 VAC 50-60hz100 - 240 VAC 50-60hz
Uninterruptible Power:10 minutes (robot stopped) for moving robot to new location10 minutes (robot stopped) for moving robot to new location
Power Consumption:OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payloadOB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload
Weight127 lbs127 lbs

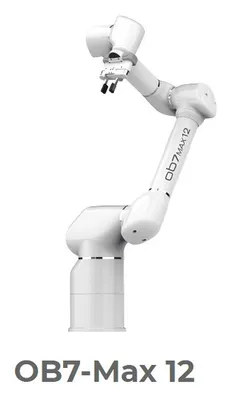

OB7-Max 12 Collaborative Robot - CNC Tending Package
The original zero programming, teach-by-touch collaborative robot and the simplest to use—by far.
​Designed and built in the USA with direct factory support

7-axis joints reach where 6-axis cobots can't

Set up in about an hour. Teach a job in minutes.
Payload: 12 kg​
Reach: 1.3m
Weight: 22 kg (58 lbs)
Mounting Flange: 220 mm (8.6”)

Control Computer:
Specifications
IP Rating:‭ ‬ IP30
Communications‭ ‬Hardware:‭ ‬ Ethernet 100MB
Protocols:‭ ‬ Ethernet IP‭, ‬TCP/IP‭, ‬Modbus
Power:‭ ‬ 100-240‭ ‬VAC 50-60‭ ‬HZ

Zero programming tablet:
Using visual‭ ‬‘tiles’‭ ‬and a‭ ‬drag & drop‭ ‬interface‭, ‬control tablet is incredibly intuitive to use.
Specifications
IP Rating: IP41
Connection:‭ ‬ USB
Dimensions:‭ ‭10”‭ ‬x 5”‭ ‬x‭ ‬1.5”‭
Cable: 5‭ ‬meters‭ (‬16‭ ‬ft‭)‬

USA direct factory support
Fast online support by our welding and robotics experts at our US factory. We speak your language.
