New 2025 OB7 Collaborative Robot - CNC Lathe Tending Package

New 2025 OB7 Collaborative Robot - CNC Lathe Tending Package

Have one to sell?
(440) 359-2655
leads@wigglesworth.com
ConditionNew
100 available
Have one to sell?

Overview

Type:
Collaborative Robot
Manufacturer:
PRODUCTIVE ROBOTICS
Model:
OB7
Condition:
New OEM Stock
Year:
2025
Stock #:
12969
Status:
For Sale

Description

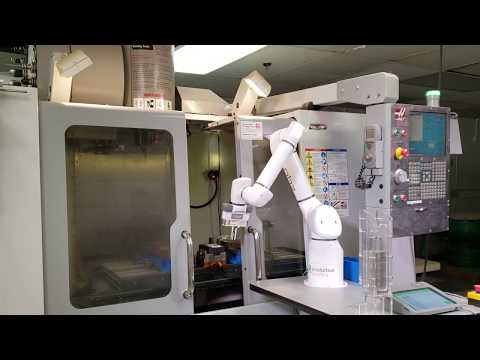

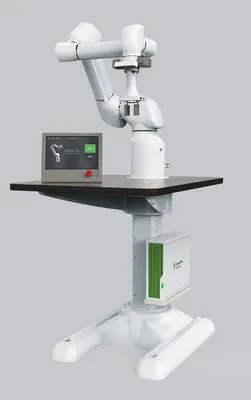

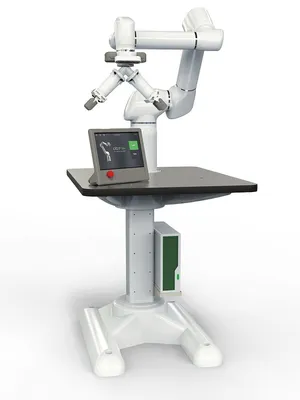

Discover the future of automation with the all-new 2025 OB7 Collaborative Robot CNC Lathe Tending Package by PRODUCTIVE ROBOTICS. Ideal for enhancing productivity, this state-of-the-art robot is ready to transform your workspace. Secure the latest model today.

# Axis77
Payload5 kg11 lb
Horizontal Reach1 m39.37"
Reach1m1m
Repeatability+/- 0.1mm ~ .004"+/- 0.1mm ~ .004"
Speed0-2+ m/s0-2+ m/s
IP Class6161
Joint Ranges+/- 360 Degrees (all)+/- 360 Degrees (all)
ProgrammingNo Programming Learns by DemonstrationNo Programming Learns by Demonstration
SafetyISO 10218-1 Compliant ; Power and force limitedISO 10218-1 Compliant ; Power and force limited
Robot Mounting Flange Diameter220 mm: OB7220 mm: OB7
Gripper Mounting Flange:ISO 9409-1-50-4-M6ISO 9409-1-50-4-M6
Working Temperature:0-37 Celsius 32-100 Fahrenheit0-37 Celsius 32-100 Fahrenheit
Power Source100 - 240 VAC 50-60hz100 - 240 VAC 50-60hz
Uninterruptible Power:10 minutes (robot stopped) for moving robot to new location10 minutes (robot stopped) for moving robot to new location
Power Consumption:OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payloadOB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload
Linear Speed:2m/s max (Dependent on position)2m/s max (Dependent on position)
MountYesYes

Lathe package includes:
CNC PACKAGES........................... FULL LATHE PACKAGE
Robot.................................. OB7, Stretch, Max 8, or Max 12
ACC:RS-1............................... Stand
ACC:AT1................................ Table
ACC:PG2................................ Gripper (x2)
ACC:DUAL GRIPPER ADAPTER............... OB7 Dual Gripper adapter
ACC:I/O2............................... I/O version 2
SPR:CBL-504............................ M12 5Pin A-Code male cable 5 Meter
SPR:CBL-507............................ M12 5pin A-Code male Y-Splitter (x2)
ACC:AIR BLOW-OFF KIT................... Air Blow-Off Kit
ACC:REMOTE RELAY SINGLE................ Remote interface relay (x3)
ACC:PNEU-1............................. Pneumatic controller (x2)
ACC:AIR HOSE........................... 1/4” air hose / 25 ft
TOTAL.................................. OB7, Stretch Package: $39,900
TOTAL.................................. MAX Robot Package: $49,900

COMMON LATHE PACKAGE OPTIONS AND ACCESSORIES
ACC:AIR BLOW-OFF KIT Air Blow-Off Kit
SPR:CBL-503............................ M12 5Pin A-Code male cable 3 Meter
SPR:CBL-504............................ M12 5Pin A-Code male cable 5 Meter
SPR:CBL-505............................ M12 5Pin A-Code Extension cable 5 Meter
SPR:CBL-506............................ M12 5Pin A-Code Female with pigtails - 1 meter
SPR:CBL-507............................ M12 5pin A-Code male Y-Splitter
SPR:CBL-801............................ Handle I/O Accessory Cable

Control Computer:
Specifications
IP Rating:‭ ‬ IP30
Communications‭ ‬Hardware:‭ ‬ Ethernet 100MB
Protocols:‭ ‬ Ethernet IP‭, ‬TCP/IP‭, ‬Modbus
Power:‭ ‬ 100-240‭ ‬VAC 50-60‭ ‬HZ

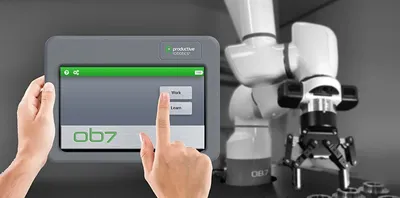

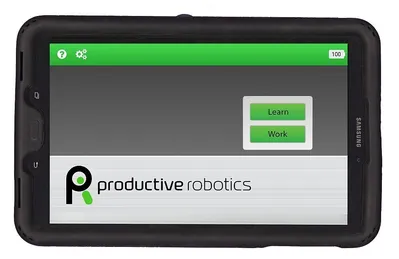

Zero programming tablet:
Using visual‭ ‬‘tiles’‭ ‬and a‭ ‬drag & drop‭ ‬interface‭, ‬control tablet is incredibly intuitive to use.
Specifications
IP Rating: IP41
Connection:‭ ‬ USB
Dimensions:‭ ‬‬10”‭ ‬x 5”‭ ‬x‭ ‬1.5”‭
Cable: 5‭ ‬meters‭ (‬16‭ ‬ft‭)‬

USA direct factory support
Fast online support by our welding and robotics experts at our US factory.
