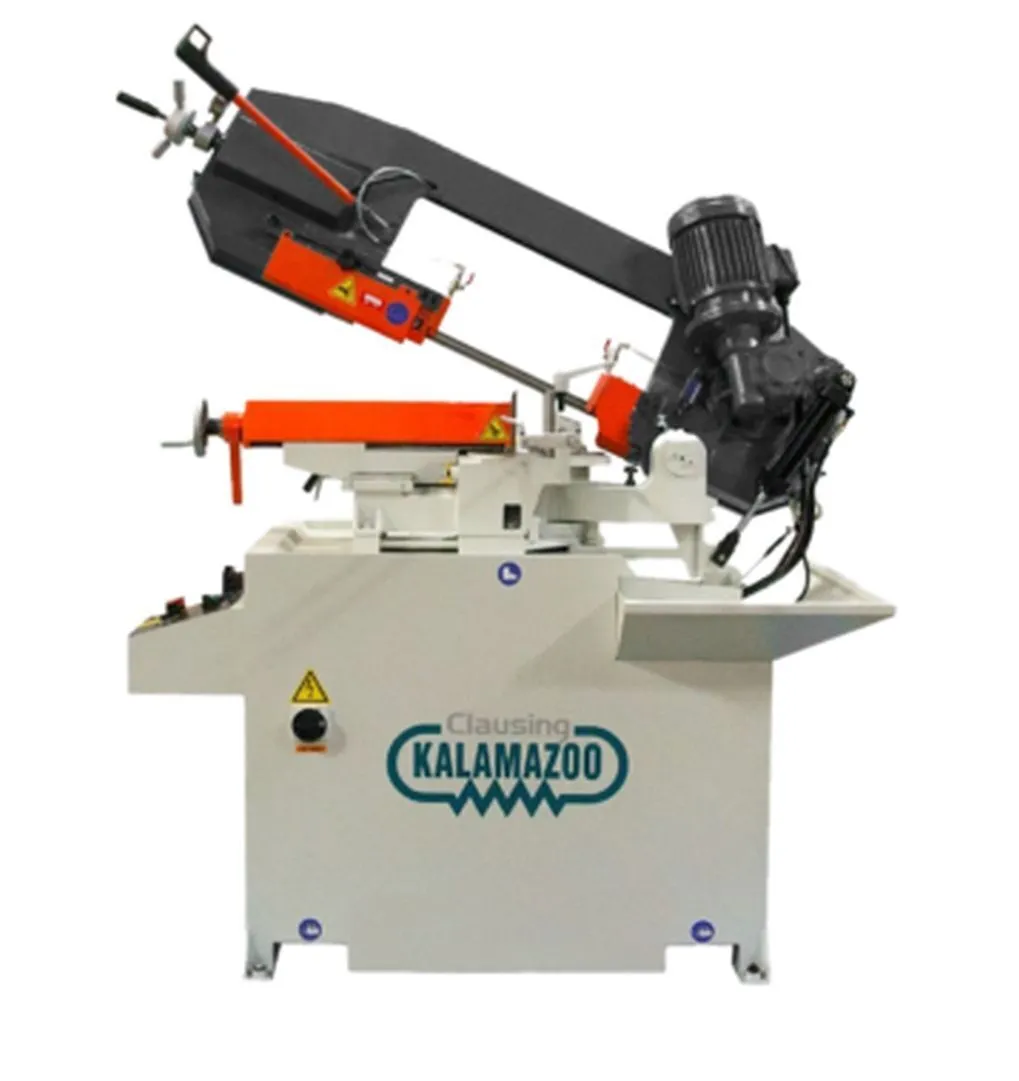

New 2025 Clausing Kalamazoo MS10D Horizontal Miter Bandsaw
Have one to sell?
ConditionNew
New
This Clausing Kalamazoo MS10D Horizontal Miter Bandsaw features a 1.5 hp motor, variable inverter drive, and double miter frame. Cuts up to 13.8"x7.9" rectangles, 10.2" rounds. Blade speeds range from 118–236 SFPM. 230V, 3-phase.
Specifications:
Machine Style..........Manual
Drive Type..........Variable Inverter Drive
Maximum Capacity Round (inch)..........10.2
Maximum Capacity Rectangle (inch)..........13.8 x 7.9
Voltage..........230
Phase..........3
Coolant System..........Yes
Angular Cuts at 45 Degrees (inch)..........8.7 x 7.9
Blade Size..........1” x .035” x 120.3”
Blade Speeds (SFPM)..........118 – 236
Blade Guide Type..........Carbide
Motor Horsepower..........1.5
Machine Features:
• 1.5hp drive motor, heavy-duty reducer, & variable step drive assembly
• Double miter saw frame for adjustable left or right angles
• 2 – speed motor with worm gear driven gear box, worm shaft is hardened and ground
• Blade tension gauge system
• Coolant System
• Machine stand with door
• Bi-metal saw blade
• 2 Year limited warranty
This Clausing Kalamazoo MS10D Horizontal Miter Bandsaw features a 1.5 hp motor, variable inverter drive, and double miter frame. Cuts up to 13.8"x7.9" rectangles, 10.2" rounds. Blade speeds range from 118–236 SFPM. 230V, 3-phase.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Manual wet cutting swivel bandsaw comes with simplified control switches mounted on saw side as well as a swivel miter saw frame for adjustable left 0-60deg angles
Motor with worm gear driven gear box, worm shaft is hardened and ground.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Rect-Cap (H) | 7.9" |
| Rect-Cap (W) | 13.8" |
| Rounds-Cap | 10.2" |
| Power | 1.5 hp |
| Type (Auto, Manual, Semi) | Manual |
| Blade Width | 1" |
| Blade Thickness | 0.035" |
| Blade Length | 120.3" |
Specifications:
Machine Style..........Manual
Drive Type..........Variable Inverter Drive
Maximum Capacity Round (inch)..........10.2
Maximum Capacity Rectangle (inch)..........13.8 x 7.9
Voltage..........230
Phase..........3
Coolant System..........Yes
Angular Cuts at 45 Degrees (inch)..........8.7 x 7.9
Blade Size..........1” x .035” x 120.3”
Blade Speeds (SFPM)..........118 – 236
Blade Guide Type..........Carbide
Motor Horsepower..........1.5
Machine Features:
• 1.5hp drive motor, heavy-duty reducer, & variable step drive assembly
• Double miter saw frame for adjustable left or right angles
• 2 – speed motor with worm gear driven gear box, worm shaft is hardened and ground
• Blade tension gauge system
• Coolant System
• Machine stand with door
• Bi-metal saw blade
• 2 Year limited warranty
