New Clausing Kalamazoo MS1318M Horizontal Miter Bandsaw "In Stock Now"
Have one to sell?
ConditionNew
5 available
New

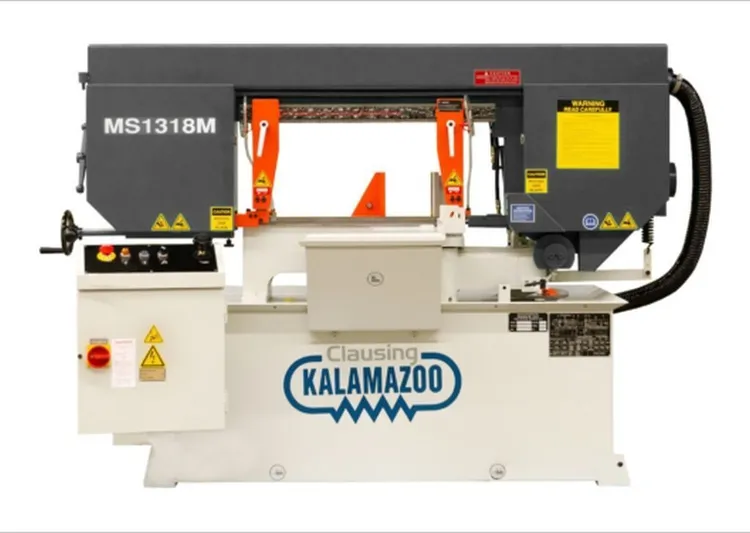

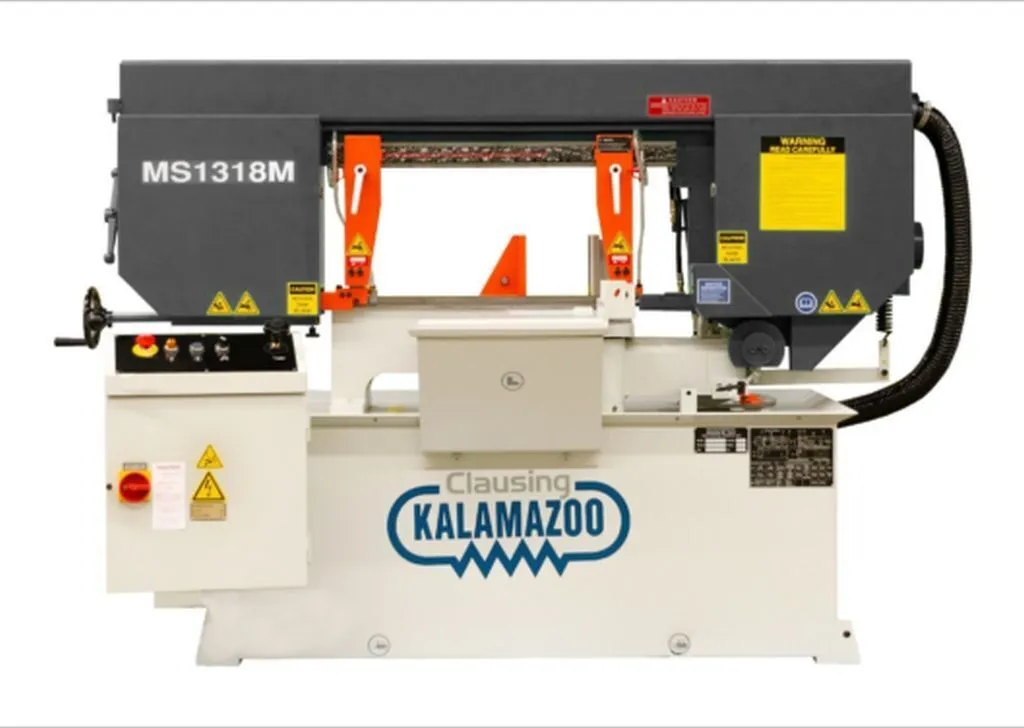

Introducing the new Clausing Kalamazoo MS1318M Horizontal Miter Bandsaw. With a powerful 3hp motor, it excels in cutting up to 18.5" in rectangular capacity. Featuring a manual swivel head for angled cuts and a variable inverter drive, this machine offers precision and efficiency.
Specifications:
• Machine Style..........Manual
• Drive Type..........Variable Inverter
• Maximum Capacity Round (inch)..........13
• Maximum Capacity Rectangle (inch)..........18.5" x 10.6"
• Voltage..........230/460
• Phase..........3
• Coolant System..........Yes
• Angular Cuts at 45 Degrees (inch)..........10.5 x 10.5
• Blade Size..........1” x .035” x 163”
• Blade Speeds (SFPM)..........102 – 377
• Blade Guide Type..........Carbide
• Motor Horsepower..........3
Machine Features:
• 3Hp drive motor with magnetic starter & overload protection
• Manual vise clamping and head rise
• Swivel saw head allows the operator to accurately pivot head for angle cuts from 0º to 60º Swing the head to desired angle with out having to move the cutting material (stock can stay at 90 degrees to saw bed)
• Carbide blade guides provide excellent stability for the saw blade
• Variable blade speed by inverter
• Powered chip brush removes chips from the blade extending blade life
• Integrated coolant system
• Cast iron moveable guide arms provide rigidity for an accurate cut
• Flushing hose
• Adjustable work stop
• 2 Year limited warranty
Introducing the new Clausing Kalamazoo MS1318M Horizontal Miter Bandsaw. With a powerful 3hp motor, it excels in cutting up to 18.5" in rectangular capacity. Featuring a manual swivel head for angled cuts and a variable inverter drive, this machine offers precision and efficiency.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Manual Horizontal Miter Bandsaw
Manual Horizontal Miter Bandsaw can allow the operator to accurately pivot head for angle cuts from 0º, for a 90º cut, to 60º.
Manual 4 speed step pulley drive will adjust the speed of the pulleys with a button or knob. As the 3 hp drive motor with magnetic starter & overload protection.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Rect-Cap (H) | 18.5" |
| Rect-Cap (W) | 10.6" |
| Rounds-Cap | 13" |
| Square-Cap | 10.5" |
| Power | 3 hp |
| Type (Auto, Manual, Semi) | Manual |
| Blade Width | 1" |
| Blade Thickness | 0.035" |
| Blade Length | 163" |
Specifications:
• Machine Style..........Manual
• Drive Type..........Variable Inverter
• Maximum Capacity Round (inch)..........13
• Maximum Capacity Rectangle (inch)..........18.5" x 10.6"
• Voltage..........230/460
• Phase..........3
• Coolant System..........Yes
• Angular Cuts at 45 Degrees (inch)..........10.5 x 10.5
• Blade Size..........1” x .035” x 163”
• Blade Speeds (SFPM)..........102 – 377
• Blade Guide Type..........Carbide
• Motor Horsepower..........3
Machine Features:
• 3Hp drive motor with magnetic starter & overload protection
• Manual vise clamping and head rise
• Swivel saw head allows the operator to accurately pivot head for angle cuts from 0º to 60º Swing the head to desired angle with out having to move the cutting material (stock can stay at 90 degrees to saw bed)
• Carbide blade guides provide excellent stability for the saw blade
• Variable blade speed by inverter
• Powered chip brush removes chips from the blade extending blade life
• Integrated coolant system
• Cast iron moveable guide arms provide rigidity for an accurate cut
• Flushing hose
• Adjustable work stop
• 2 Year limited warranty
