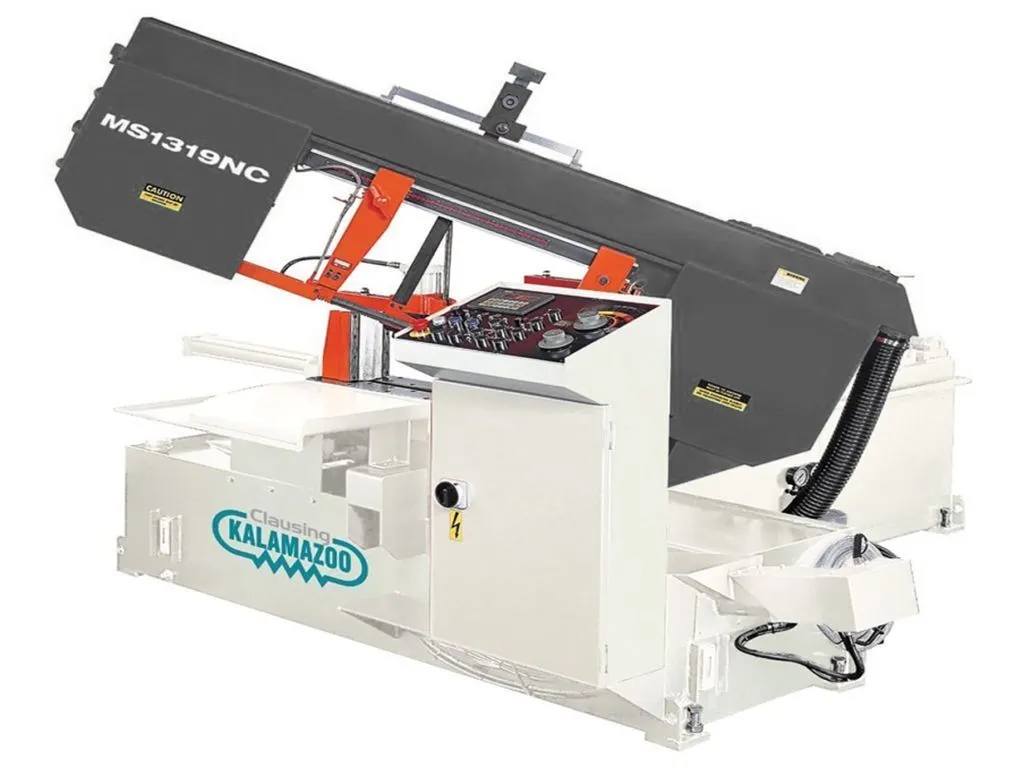

New 2025 Clausing Kalamazoo MS1319NC Horizontal Miter Bandsaw "In Stock Now"
Have one to sell?
ConditionNew
New
Discover precision with the Clausing Kalamazoo MS1319NC Horizontal Miter Bandsaw. Features include a 13” round capacity, variable inverter drive, and Smart NC-100 tech for up to 100 job programs. Achieve accurate cuts with a 5 hp motor and integrated coolant system.
Specifications:
Machine Style..........Automatic
Drive Type..........Variable Inverter Drive
Maximum Capacity Round (inch)..........13
Maximum Capacity Rectangle (inch)..........11 x 19.68
Voltage..........230
Phase..........3
Coolant System..........Yes
Angular Cuts at 45 Degrees (inch)..........10.43 x 10.43
Blade Size..........1.25” x .042” x 193”
Blade Speeds (SFPM)..........66 – 330
Blade Guide Type..........Carbide
Motor Horsepower..........5
Machine Features:
• The swivel mitering saw head allows cutting at any angle between 90° (straight cut) and 45° (miter cut)
• Precision pivot system facilitates easy and accurate adjustment for angle cuts
• Inverter controlled infinitely variable speed
• Smart NC-100 technology programmable up to 100 different jobs
• Carbide blade guides with roller bearings
• Automatic shutoff after preset number of cuts or when out of stock
• 5.7” HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics
• Integrated coolant system
• Automatic kerf loss compensation & computer controlled multiple indexing
• Discharge table with built-in coolant return
• Computer controlled multiple indexing
• Additional flushing hose
• Hydraulic front and rear vises
• 2 Year limited warranty
Discover precision with the Clausing Kalamazoo MS1319NC Horizontal Miter Bandsaw. Features include a 13” round capacity, variable inverter drive, and Smart NC-100 tech for up to 100 job programs. Achieve accurate cuts with a 5 hp motor and integrated coolant system.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Automatic Miter Bandsaw can allow for power vise clamping, head rise and lower. Precision pivot system facilitates easy and accurate adjustment for angle cuts.
A powerful drive motor provides the power, and the Smart NC-100 technology programmable up to 100 different jobs.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Rect-Cap (H) | 11" |
| Rect-Cap (W) | 19.68" |
| Rounds-Cap | 13" |
| Square-Cap | 10.43" |
| Power | 5 hp |
| Type (Auto, Manual, Semi) | Auto |
| Blade Width | 1.25" |
| Blade Thickness | 0.042" |
| Blade Length | 193" |
| Control | CNC |
Specifications:
Machine Style..........Automatic
Drive Type..........Variable Inverter Drive
Maximum Capacity Round (inch)..........13
Maximum Capacity Rectangle (inch)..........11 x 19.68
Voltage..........230
Phase..........3
Coolant System..........Yes
Angular Cuts at 45 Degrees (inch)..........10.43 x 10.43
Blade Size..........1.25” x .042” x 193”
Blade Speeds (SFPM)..........66 – 330
Blade Guide Type..........Carbide
Motor Horsepower..........5
Machine Features:
• The swivel mitering saw head allows cutting at any angle between 90° (straight cut) and 45° (miter cut)
• Precision pivot system facilitates easy and accurate adjustment for angle cuts
• Inverter controlled infinitely variable speed
• Smart NC-100 technology programmable up to 100 different jobs
• Carbide blade guides with roller bearings
• Automatic shutoff after preset number of cuts or when out of stock
• 5.7” HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics
• Integrated coolant system
• Automatic kerf loss compensation & computer controlled multiple indexing
• Discharge table with built-in coolant return
• Computer controlled multiple indexing
• Additional flushing hose
• Hydraulic front and rear vises
• 2 Year limited warranty
