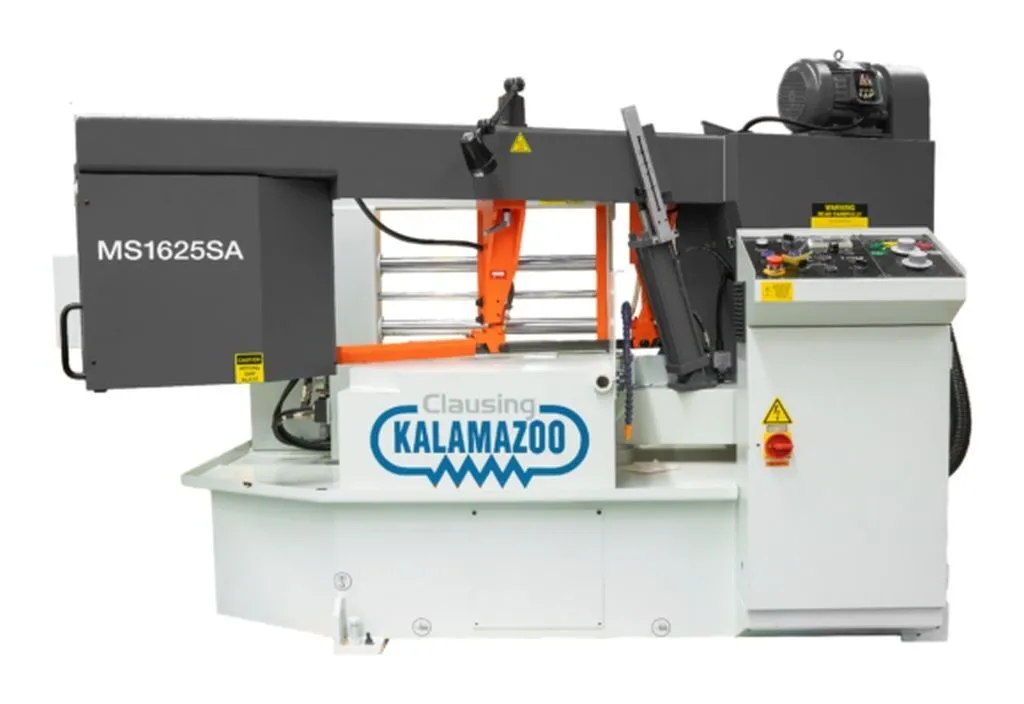

Clausing Kalamazoo MS1625SA Horizontal Miter Bandsaw
Have one to sell?
ConditionNew
New
Discover precision with the new Clausing Kalamazoo MS1625SA Horizontal Miter Bandsaw. Featuring a semi-automatic style, 5 hp motor, and carbide blade guides, this machine handles up to 16" rounds and 15"x26.6" rectangles with ease.
Specifications:
Machine Style..........Semi-Automatic
Drive Type..........Variable Inverter Drive
Maximum Capacity Round (inch)..........16
Maximum Capacity Rectangle (inch)..........15 x 26.6
Voltage..........230
Phase..........3
Coolant System..........Yes
Angular Cuts at 45 Degrees (inch)..........16 x 16
Blade Size..........1.25” x .042” x 209”
Blade Speeds (SFPM)..........66 – 328
Blade Guide Type..........Carbide
Motor Horsepower..........5
Machine Features:
• Rigid and heavy-duty pivot and trunnion
• Electrical components located inside the control box with main lockout disconnect
• 24.5” solid discharge table with coolant return
• Swivel saw head mitering from 90° to 60°
• Carbide blade guides provide excellent stability for the saw blade
• Inverter controlled infinitely variable blade speed
• Precision feed pressure & feed rate dual valve system
• Integrated coolant system
• Cast iron moveable guide arms provide rigidity for an accurate cut
• Flushing hose
• Adjustable work stop
• 36” infeed roller table
• Built-in adjustable material stop
• 2 Year limited warranty
Discover precision with the new Clausing Kalamazoo MS1625SA Horizontal Miter Bandsaw. Featuring a semi-automatic style, 5 hp motor, and carbide blade guides, this machine handles up to 16" rounds and 15"x26.6" rectangles with ease.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Semi-Automatic Saws can allow for power vise clamping, head rise and lower. The saw head will lower to make the cut and the blade will shut off after the cut is finished.
Inverter drive speed will adjust the speed of the pulleys with a button or knob. As you adjust the frequency in the inverter changes the drive motor RPM.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Rect-Cap (H) | 15" |
| Rect-Cap (W) | 26.6" |
| Rounds-Cap | 16" |
| Square-Cap | 16" |
| Power | 5 hp |
| Type (Auto, Manual, Semi) | Semi |
| Blade Width | 1.25" |
| Blade Thickness | 0.042" |
| Blade Length | 209" |
| Control | CNC |
Specifications:
Machine Style..........Semi-Automatic
Drive Type..........Variable Inverter Drive
Maximum Capacity Round (inch)..........16
Maximum Capacity Rectangle (inch)..........15 x 26.6
Voltage..........230
Phase..........3
Coolant System..........Yes
Angular Cuts at 45 Degrees (inch)..........16 x 16
Blade Size..........1.25” x .042” x 209”
Blade Speeds (SFPM)..........66 – 328
Blade Guide Type..........Carbide
Motor Horsepower..........5
Machine Features:
• Rigid and heavy-duty pivot and trunnion
• Electrical components located inside the control box with main lockout disconnect
• 24.5” solid discharge table with coolant return
• Swivel saw head mitering from 90° to 60°
• Carbide blade guides provide excellent stability for the saw blade
• Inverter controlled infinitely variable blade speed
• Precision feed pressure & feed rate dual valve system
• Integrated coolant system
• Cast iron moveable guide arms provide rigidity for an accurate cut
• Flushing hose
• Adjustable work stop
• 36” infeed roller table
• Built-in adjustable material stop
• 2 Year limited warranty
