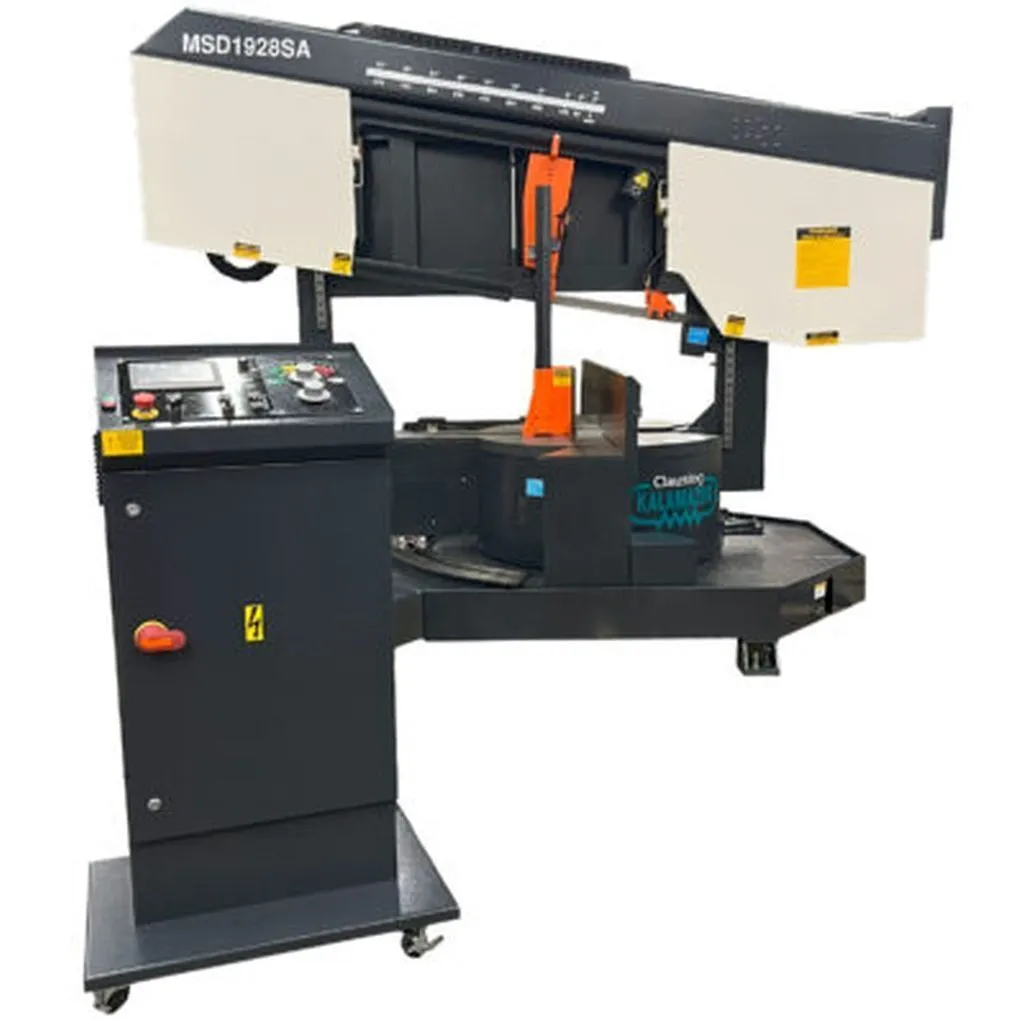

New 2025 Clausing Kalamazoo MSD1928SA Horizontal Miter Bandsaw
Have one to sell?
ConditionNew
New
Introducing the Clausing Kalamazoo MSD1928SA Horizontal Miter Bandsaw—new and robust with a cutting capacity of 19" rounds and 16.5" x 28" rectangles, powered by a 7.5 hp motor. Features include variable speed, a mitering swivel head, and a 36” infeed roller table.
Specifications:
Machine Style..........Semi-Automatic
Drive Type..........Variable Inverter Drive
Maximum Capacity Round (inch)..........19
Maximum Capacity Rectangle (inch)..........16.5 x 28
Voltage..........230
Phase..........3
Coolant System..........Yes
Angular Cuts at 45 Degrees (inch)..........16.5 x 17.7
Blade Size..........1.5” x .05” x 257.5”
Blade Speeds (SFPM)..........83 – 330
Blade Guide Type..........Carbide
Motor Horsepower..........7.5
Machine Features:
• Rigid and heavy-duty pivot and trunnion
• Electrical components located inside the control box with main lockout disconnect
• 24.5” solid discharge table with coolant return
• Swivel saw head mitering from 90° to 60°
• Carbide blade guides provide excellent stability for the saw blade
• Inverter controlled infinitely variable blade speed
• Precision feed pressure & feed rate dual valve system
• Integrated coolant system
• Cast iron moveable guide arms provide rigidity for an accurate cut
• Flushing hose
• Adjustable work stop
• 36” infeed roller table
• Built-in adjustable material stop
2 Year limited warranty
Introducing the Clausing Kalamazoo MSD1928SA Horizontal Miter Bandsaw—new and robust with a cutting capacity of 19" rounds and 16.5" x 28" rectangles, powered by a 7.5 hp motor. Features include variable speed, a mitering swivel head, and a 36” infeed roller table.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Semi-Automatic Heavy duty inverter blade drive system with variable blade speed control Double Miter Bandsaw can allow for power vise clamping, head rise and lower. Precision pivot system facilitates easy and accurate adjustment for angle cuts left or right up to 60 degrees.
Rigid, oversized linear guides are precision ground to ensure smooth hydraulically driven consistent feed rate of the cutting head.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Rect-Cap (H) | 16.5" |
| Rect-Cap (W) | 28" |
| Rounds-Cap | 19" |
| Power | 7.5 hp |
| Type (Auto, Manual, Semi) | Semi |
| Blade Width | 1.5" |
| Blade Thickness | 0.05" |
| Blade Length | 257.5" |
| Control | CNC |
Specifications:
Machine Style..........Semi-Automatic
Drive Type..........Variable Inverter Drive
Maximum Capacity Round (inch)..........19
Maximum Capacity Rectangle (inch)..........16.5 x 28
Voltage..........230
Phase..........3
Coolant System..........Yes
Angular Cuts at 45 Degrees (inch)..........16.5 x 17.7
Blade Size..........1.5” x .05” x 257.5”
Blade Speeds (SFPM)..........83 – 330
Blade Guide Type..........Carbide
Motor Horsepower..........7.5
Machine Features:
• Rigid and heavy-duty pivot and trunnion
• Electrical components located inside the control box with main lockout disconnect
• 24.5” solid discharge table with coolant return
• Swivel saw head mitering from 90° to 60°
• Carbide blade guides provide excellent stability for the saw blade
• Inverter controlled infinitely variable blade speed
• Precision feed pressure & feed rate dual valve system
• Integrated coolant system
• Cast iron moveable guide arms provide rigidity for an accurate cut
• Flushing hose
• Adjustable work stop
• 36” infeed roller table
• Built-in adjustable material stop
2 Year limited warranty
