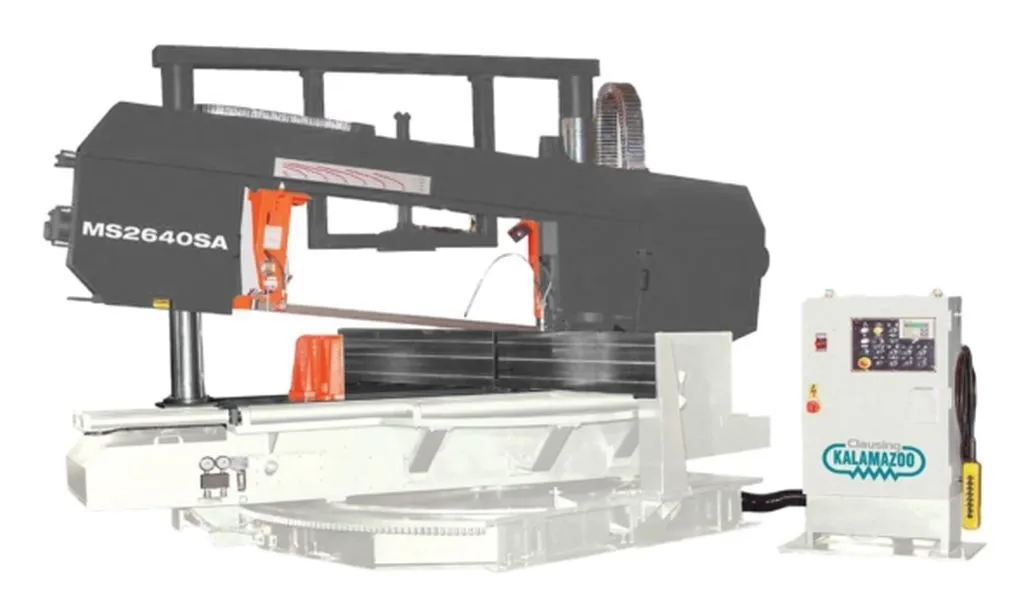

New 2025 Clausing Kalamazoo MSD2640SA Horizontal Miter Bandsaw
Have one to sell?
ConditionNew
New
Boost your cutting efficiency with the Clausing Kalamazoo MSD2640SA Horizontal Miter Bandsaw. Featuring a robust 7.5 hp motor, 26" round capacity, semi-automatic operation, and variable inverter drive, it's built for precise, powerful performance.
Specifications:
Machine Style..........Semi-Automatic
Drive Type..........Variable Inverter Drive
Maximum Capacity Round (inch)..........26
Maximum Capacity Rectangle (inch)..........20.5 x 40
Voltage..........230
Phase..........3
Coolant System..........Yes
Angular Cuts at 45 Degrees (inch)..........20.5 x 24.4
Blade Size..........2” x .063” x 326.8”
Blade Speeds (SFPM)..........49 – 295
Blade Guide Type..........Carbide
Motor Horsepower..........7.5
Machine Features:
• Mitering saw head from 90° to 60°
• Precision feed pressure & feed rate dual valve system
• Inverter controlled infinitely variable speed
• 7.5 degree blade cant for longer blade life
• Heavy duty, rigid saw frame supported by two large bore hydraulic cylinders
• Cross link connecting the two columns for enhanced structural strength
• 45 degree forward and backward swivel with automatic angle lock-in
• Integrated coolant system
• Specially designed gearbox for smooth and powerful cutting
• Heavy duty inverter blade drive system
• Hydraulically operated carbide blade guides
• Precision feed pressure & feed rate dual valve system
• Light projection for precise length measurement
• Proximity switch for sensing blade slippage or breakage
• 2 Year limited warranty
Boost your cutting efficiency with the Clausing Kalamazoo MSD2640SA Horizontal Miter Bandsaw. Featuring a robust 7.5 hp motor, 26" round capacity, semi-automatic operation, and variable inverter drive, it's built for precise, powerful performance.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Semi-Automatic Inverter controlled infinitely variable blade speed Miter Bandsaw can allow for power vise clamping, head rise and lower. Precision pivot system facilitates easy and accurate adjustment for angle cuts. Heavy duty, rigid saw frame supported by two large bore hydraulic cylinders. Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Rect-Cap (H) | 20.5" |
| Rect-Cap (W) | 40" |
| Rounds-Cap | 26" |
| Power | 7.5 hp |
| Type (Auto, Manual, Semi) | Semi |
| Blade Width | 2" |
| Blade Thickness | 0.063" |
| Blade Length | 326.8" |
| Control | CNC |
Specifications:
Machine Style..........Semi-Automatic
Drive Type..........Variable Inverter Drive
Maximum Capacity Round (inch)..........26
Maximum Capacity Rectangle (inch)..........20.5 x 40
Voltage..........230
Phase..........3
Coolant System..........Yes
Angular Cuts at 45 Degrees (inch)..........20.5 x 24.4
Blade Size..........2” x .063” x 326.8”
Blade Speeds (SFPM)..........49 – 295
Blade Guide Type..........Carbide
Motor Horsepower..........7.5
Machine Features:
• Mitering saw head from 90° to 60°
• Precision feed pressure & feed rate dual valve system
• Inverter controlled infinitely variable speed
• 7.5 degree blade cant for longer blade life
• Heavy duty, rigid saw frame supported by two large bore hydraulic cylinders
• Cross link connecting the two columns for enhanced structural strength
• 45 degree forward and backward swivel with automatic angle lock-in
• Integrated coolant system
• Specially designed gearbox for smooth and powerful cutting
• Heavy duty inverter blade drive system
• Hydraulically operated carbide blade guides
• Precision feed pressure & feed rate dual valve system
• Light projection for precise length measurement
• Proximity switch for sensing blade slippage or breakage
• 2 Year limited warranty
