New 2025 Blaze MIG Cell w/ Cobot Complete Package - Miller Auto-Continuum™ 350
Have one to sell?
ConditionNew
1 available
New
Fully enclosed, stand alone, automated MIG welding with fume extraction.
The 7-Axis Blaze Welding cobot features an unlimited library of welding recipes, Zero Programming, drag and drop tablet controller, and complete control and customization of welding parameters, weld recipes, weld types and automation of Miller weld presets.
No programming required!

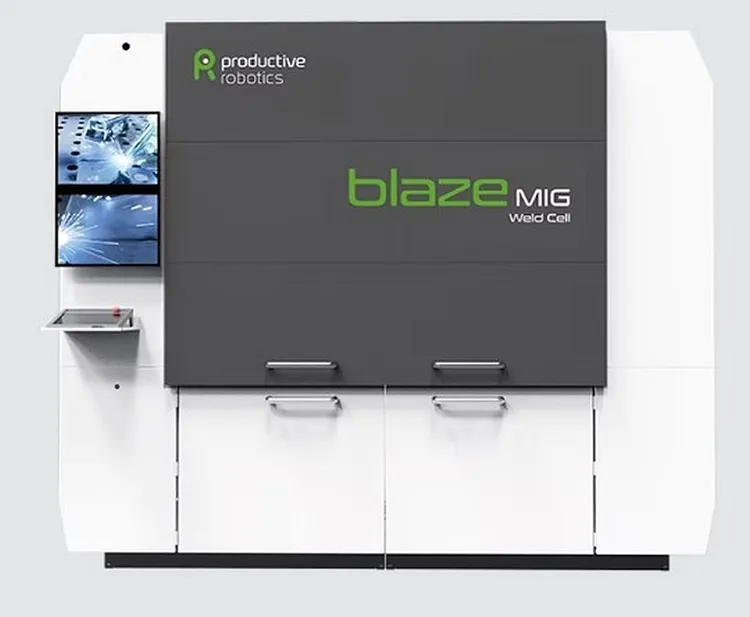

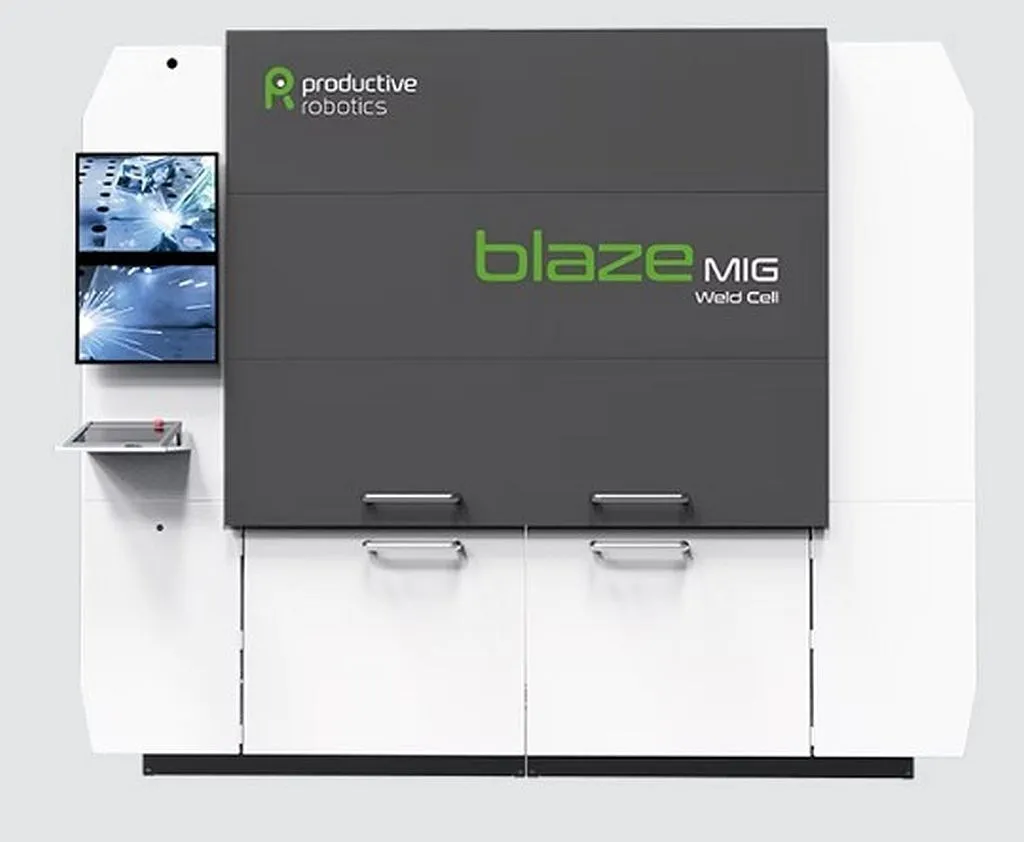

Blaze MIG Welding Cell w/ Miller Auto Continuum 350/500
Includes:
• Blaze Robot
• Miller Auto Continuum 350 / 500
• Miller Cobot Kit
• Miller Wire Feeder
• Miller Startup Kit
• Enclosed Welding Cell
• Blaze Welding Software
• 4' x 8' Siegmund Table with High Intensity LED Lighting
• Fume Extraction

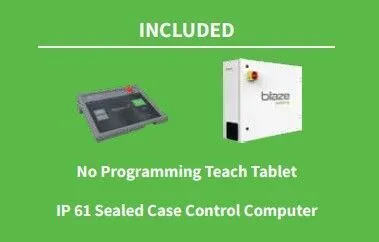

• Sealed control computer
• Live Video Monitoring
• No Programming Teach Tablet
Dimensions
Overall:
• 2464 mm x 1905 mm x 2185 mm
• (97”w x 75”d x 86”h)
• Table Height: 914 mm (36”)
• Work Surface: 1060 mm x 1,244 mm (41.75” x 48”)
Wire Drive
• Wire Feed Delivery Length: 10 ft. (3 m) Optional: 15 ft. (5 m)
• LightWELD Interface: Low Voltage enable signal cable
• Wire Feed Speed Range: 0.5 - 230 ipm (1 - 600 cm/min)
• Compatible Wire Diameters: 0.030” – 0.063” (0.8 mm - 1.6 mm)
• Wire Reel Capacity: Up to 30 lbs. (12” diameter)
• Compatible Wire Materials:
• Steel, Stainless Steel, Aluminum, Copper, Nickel
• Power Requirements: 115 - 230V 50/60 Hz

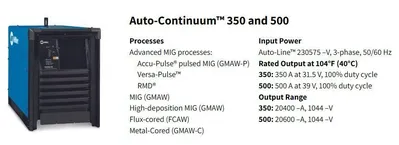

Auto-Continuum™ 350 or 500
Advanced MIG processes:
• Accu-Pulse® pulsed MIG (GMAW-P)
• Versa-Pulse™
• RMD®
• MIG (GMAW)
• High-deposition MIG (GMAW)
• Flux-cored (FCAW)
• Metal-Cored (GMAW-C)
• Input Power: Auto-Line™ 230–575 V, 3-phase, 50/60 Hz
• Rated Output at 104°F (40°C)
• 350: 350 A at 31.5 V, 100% duty cycle
• 500: 500 A at 39 V, 100% duty cycle
• Output Range
• 350: 20–400 A, 10–44 V
• 500: 20–600 A, 10–44 V
General
Warranty: 3 years on Blaze Laser Cell, Blaze Cobot and Miller® Welders
Lighting: High intensity LED
Fume Extraction
Fully enclosed, stand alone, automated MIG welding with fume extraction.
The 7-Axis Blaze Welding cobot features an unlimited library of welding recipes, Zero Programming, drag and drop tablet controller, and complete control and customization of welding parameters, weld recipes, weld types and automation of Miller weld presets.
No programming required!
Blaze 7-axis welding cobots provide a safe, far less expensive alternative to traditional automation, enabling fabrication shops of all sizes to scale operations, reduce costs, and stay competitive. Blaze cobots allow welders to focus on higher value work and setups while automation handles the tedium of repetitive welding.
Operation is 100% intuitive with zero programming and lightning fast to learn. It only takes minutes to teach Blaze your first weld and it's easy to get started - no robot experience required. Blaze sets up in under an hour and starts boosting your shop productivity on day one.
Get more weldments done in a single setup with 7-Axis, versus having to re-fixture with a 6-Axis robot. Only a 7-Axis robot can reach around all sides of fixtures and workpiece obstacles without restriction.
Blaze is the ultimate in ease-of use —you can teach a job faster than doing it once by hand and trust Blaze to repeat the job with clean, precise welds every time.
Blaze has the unique feature of being able to quickly and easily remove the torch to do tacking or complex welds by hand. There’s also a live trigger on the torch for spot welding and more.
Use the control handle to physically teach Blaze to weld, without programming. Show Blaze the start and end of welds, tack points, circles or any complex shape at the touch of a button.
Stay agile with fast short run changeovers and zero reprogramming on repeat jobs. Blaze adds efficiency to high mix or low mix, short runs or long runs, and can be repurposed quickly to meet changing demands.
Imperial
| # Axis | 7 |
| Horizontal Reach | 61" |
| Reach | 61" |
| Repeatability | +/- 0.1mm ~ .004" |
| Speed | 0-2+ m/s |
| IP Class | 61 |
| Joint Ranges | +/- 360 Degrees (all) |
| Programming | No Programming Learns by Demonstration |
| Safety | ISO 10218-1 Compliant ; Power and force limited |
| Robot Mounting Flange Diameter | 220 mm: OB7 |
| Gripper Mounting Flange: | ISO 9409-1-50-4-M6 |
| Working Temperature: | 0-37 Celsius 32-100 Fahrenheit |
| Power Source | 100 - 240 VAC 50-60hz |
| Uninterruptible Power: | 10 minutes (robot stopped) for moving robot to new location |
| Power Consumption: | OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload |
| Linear Speed: | 2m/s max (Dependent on position) |
| Table Height | 36 |
| Work Surface | 41.75"x 48" |
| Welder | Auto-Continuum™ 350 / 500 |
| Dimensions | 97" x 75" x 86" |
Blaze MIG Welding Cell w/ Miller Auto Continuum 350/500
Includes:
• Blaze Robot
• Miller Auto Continuum 350 / 500
• Miller Cobot Kit
• Miller Wire Feeder
• Miller Startup Kit
• Enclosed Welding Cell
• Blaze Welding Software
• 4' x 8' Siegmund Table with High Intensity LED Lighting
• Fume Extraction
• Sealed control computer
• Live Video Monitoring
• No Programming Teach Tablet
Dimensions
Overall:
• 2464 mm x 1905 mm x 2185 mm
• (97”w x 75”d x 86”h)
• Table Height: 914 mm (36”)
• Work Surface: 1060 mm x 1,244 mm (41.75” x 48”)
Wire Drive
• Wire Feed Delivery Length: 10 ft. (3 m) Optional: 15 ft. (5 m)
• LightWELD Interface: Low Voltage enable signal cable
• Wire Feed Speed Range: 0.5 - 230 ipm (1 - 600 cm/min)
• Compatible Wire Diameters: 0.030” – 0.063” (0.8 mm - 1.6 mm)
• Wire Reel Capacity: Up to 30 lbs. (12” diameter)
• Compatible Wire Materials:
• Steel, Stainless Steel, Aluminum, Copper, Nickel
• Power Requirements: 115 - 230V 50/60 Hz
Auto-Continuum™ 350 or 500
Advanced MIG processes:
• Accu-Pulse® pulsed MIG (GMAW-P)
• Versa-Pulse™
• RMD®
• MIG (GMAW)
• High-deposition MIG (GMAW)
• Flux-cored (FCAW)
• Metal-Cored (GMAW-C)
• Input Power: Auto-Line™ 230–575 V, 3-phase, 50/60 Hz
• Rated Output at 104°F (40°C)
• 350: 350 A at 31.5 V, 100% duty cycle
• 500: 500 A at 39 V, 100% duty cycle
• Output Range
• 350: 20–400 A, 10–44 V
• 500: 20–600 A, 10–44 V
General
Warranty: 3 years on Blaze Laser Cell, Blaze Cobot and Miller® Welders
Lighting: High intensity LED
Fume Extraction
