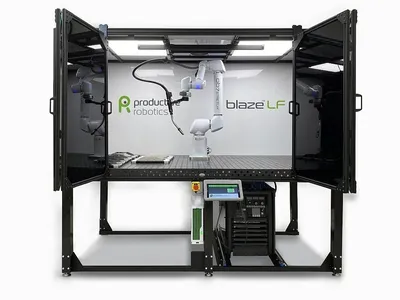

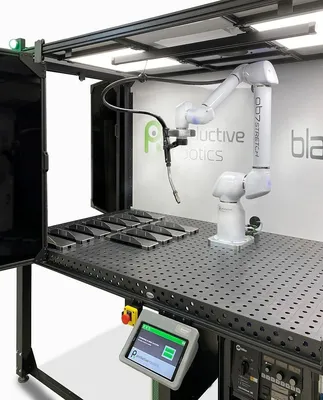

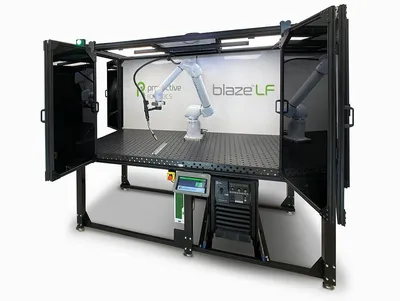

Experience this new automated MIG welder with a 85" reach!
The 7-Axis Blaze Welding cobot features an unlimited library of welding recipes, Zero Programming,  drag and drop tablet controller, and  complete control and customization of welding parameters, weld recipes, weld types and automation of Miller weld presets. Miller Auto Dataweld 350 included.
No programming required!
Blaze Max MIG LF Package w/ Miller Auto Dataweld 350
Includes:
1 Blaze Max Cobot
1 Miller Auto Dataweld 350 / 500
1 Miller Cobot Kit
1 Miller Wire Feeder
1 Miller Startup Kit
1 Blaze Welding Software
1 4' x 8' Siegmund Table with High Intensity LED Lighting

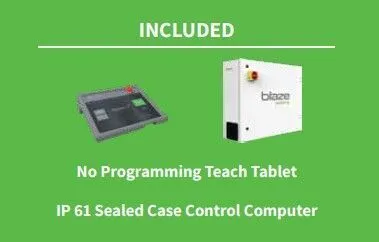

1 Sealed control computer
1 No Programming Teach Tablet
Dimensions
Overall:
2464 mm x 1905 mm x 2185 mm
(97”w x 75”d x 86”h)
Table Height: 914 mm (36”)
Work Surface: 1060 mm x 1,244 mm (41.75” x 48”)
Wire Drive
Wire Feed Delivery Length: 10 ft. (3 m) Optional: 15 ft. (5 m)
LightWELD Interface: Low Voltage enable signal cable
Wire Feed Speed Range: 0.5 - 230 ipm (1 - 600 cm/min)
Compatible Wire Diameters: 0.030” – 0.063” (0.8 mm - 1.6 mm)
Wire Reel Capacity: Up to 30 lbs. (12” diameter)
Compatible Wire Materials:
Steel, Stainless Steel, Aluminum, Copper, Nickel
Power Requirements: 115 - 230V 50/60 Hz
Auto-Continuum™ 350 and 500
Advanced MIG processes:
     Accu-Pulse® pulsed MIG (GMAW-P)
     Versa-Pulse™
     RMD®
MIG (GMAW)
High-deposition MIG (GMAW)
Flux-cored (FCAW)
Metal-Cored (GMAW-C)
General
Warranty: 3 years on Blaze Laser Cell, Blaze Max Cobot and Miller® Welders
