Introducing the 2025 Productive Robotics Blaze MIG Cobot, a new 7-axis collaborative robot. With zero programming needed, it uses intuitive demonstration learning, making it easy to integrate into your welding setup. Made in the USA.
This Robot can be easily moved between workstations and includes Blaze robot, Sealed electronics, No programming teach tablet and includes Miller Auto DeltaWeld 350.

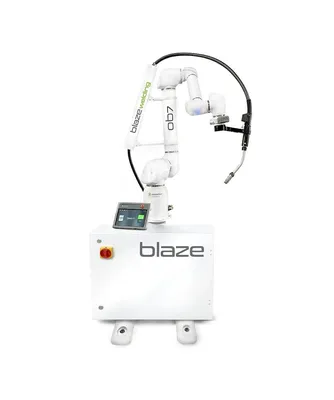

Blaze MIG Cobot w/ Miller Auto DeltaWeld 350
Zero programming welding cobot. Works with your current welder and table.
Designed and built in the USA with direct factory support
7-axis positioning allows more welds without refixturing
Teach a job faster than welding once by hand
Software: Drag and drop, unlimited weld capability
Reach: 61" or 85" including torch
Compatible with Miller, Lincoln, and most others.
Includes:
1 Blaze Robot

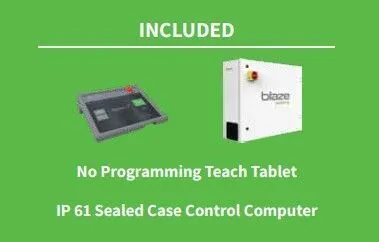

1 Sealed Electronics
1 Blaze Welding Software

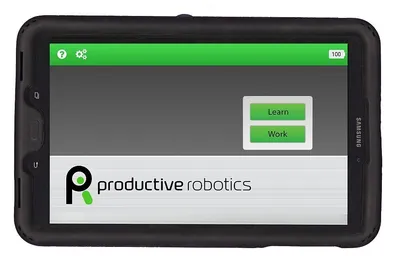

1 Zero-Program Teach Tablet
1 Miller Auto DeltaWeld 350
Introducing the 2025 Productive Robotics Blaze MIG Cobot, a new 7-axis collaborative robot. With zero programming needed, it uses intuitive demonstration learning, making it easy to integrate into your welding setup. Made in the USA.
This Robot can be easily moved between workstations and includes Blaze robot, Sealed electronics, No programming teach tablet and includes Miller Auto DeltaWeld 350.
Blaze 7-axis welding cobots provide a safe, far less expensive alternative to traditional automation, enabling fabrication shops of all sizes to scale operations, reduce costs, and stay competitive. Blaze cobots allow welders to focus on higher value work and setups while automation handles the tedium of repetitive welding.
Operation is 100% intuitive with zero programming and lightning fast to learn. It only takes minutes to teach Blaze your first weld and it's easy to get started - no robot experience required. Blaze sets up in under an hour and starts boosting your shop productivity on day one.
Get more weldments done in a single setup with 7-Axis, versus having to re-fixture with a 6-Axis robot. Only a 7-Axis robot can reach around all sides of fixtures and workpiece obstacles without restriction.
Blaze is the ultimate in ease-of use —you can teach a job faster than doing it once by hand and trust Blaze to repeat the job with clean, precise welds every time.
Blaze has the unique feature of being able to quickly and easily remove the torch to do tacking or complex welds by hand. There’s also a live trigger on the torch for spot welding and more.

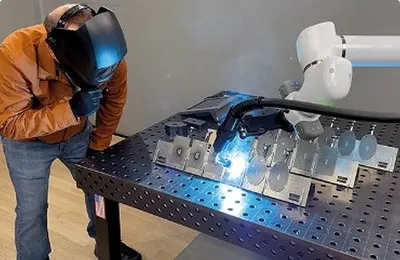

Use the control handle to physically teach Blaze to weld, without programming. Show Blaze the start and end of welds, tack points, circles or any complex shape at the touch of a button.
Stay agile with fast short run changeovers and zero reprogramming on repeat jobs. Blaze adds efficiency to high mix or low mix, short runs or long runs, and can be repurposed quickly to meet changing demands.
Imperial
| # Axis | 7 |
| Horizontal Reach | 61" |
| Reach | 61" |
| Repeatability | +/- 0.1mm ~ .004" |
| Speed | 0-2+ m/s |
| IP Class | 61 |
| Joint Ranges | +/- 360 Degrees (all) |
| Programming | No Programming Learns by Demonstration |
| Safety | ISO 10218-1 Compliant ; Power and force limited |
| Robot Mounting Flange Diameter | 220 mm: OB7 |
| Working Temperature: | 0-37 Celsius 32-100 Fahrenheit |
| Power Source | 100 - 240 VAC 50-60hz |
| Uninterruptible Power: | 10 minutes (robot stopped) for moving robot to new location |
| Power Consumption: | OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload |
| Linear Speed: | 2m/s max (Dependent on position) |
| Welder | Miller Auto DeltaWeld 350 |
| Dimensions | Miller Auto DeltaWeld 350 |
Blaze MIG Cobot w/ Miller Auto DeltaWeld 350
Zero programming welding cobot. Works with your current welder and table.
Designed and built in the USA with direct factory support
7-axis positioning allows more welds without refixturing
Teach a job faster than welding once by hand
Software: Drag and drop, unlimited weld capability
Reach: 61" or 85" including torch
Compatible with Miller, Lincoln, and most others.
Includes:
1 Blaze Robot
1 Sealed Electronics
1 Blaze Welding Software
1 Zero-Program Teach Tablet
1 Miller Auto DeltaWeld 350
