Used 2001 OKUMA CAPTAIN L370 | CNC Lathes
Have one to sell?
ConditionUsed
1 available

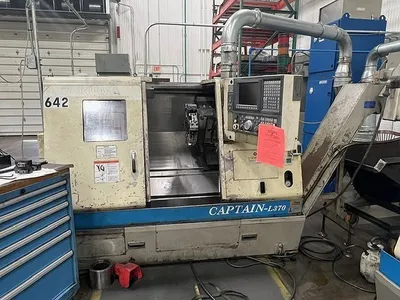

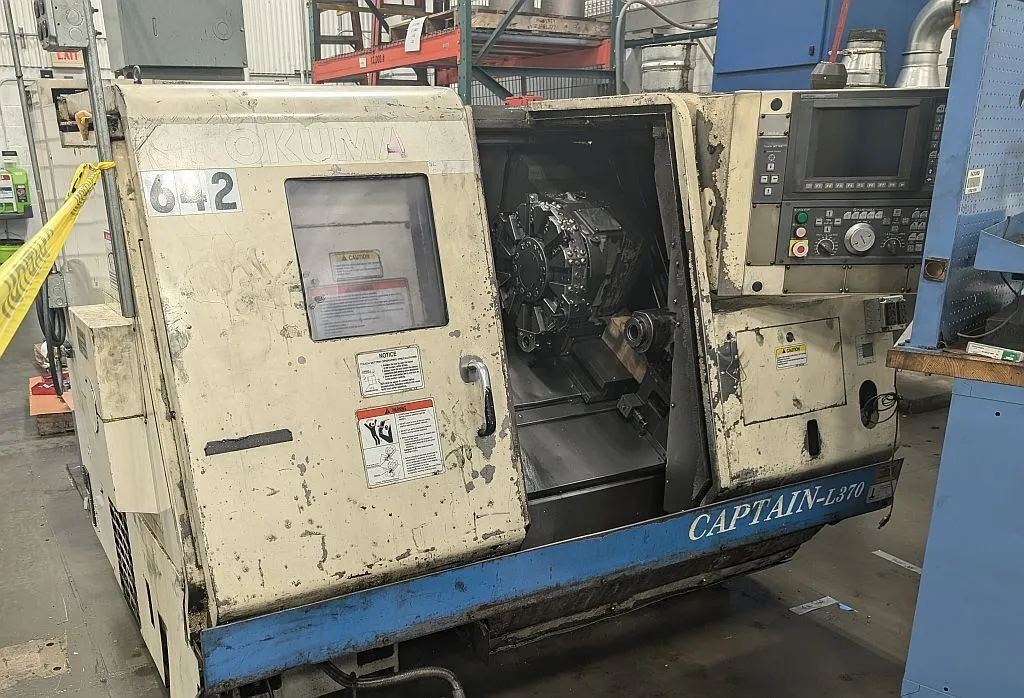

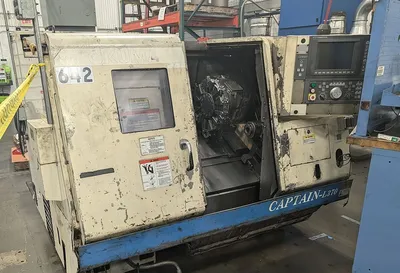

2001 OKUMA CAPTAIN L370 CNC Lathe, 20.8" swing, 20.47" machining length, 8" chuck, 1.97" bar capacity, 20 HP, 4,500 RPM, 14.5" turning dia. Features Okuma OSP E100L CNC control and 12-station turret. Ideal for precision machining.

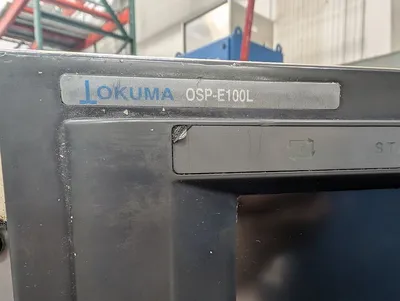

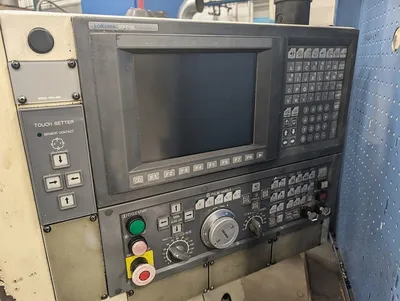

Control: Okuma OSP E100L CNC

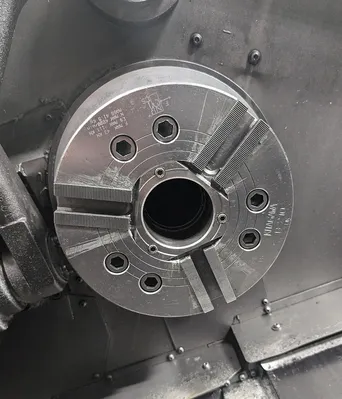

Chuck Size: 8″
Bar Capacity / Spindle Bore: ~2.0″ (≈ 50 mm)
Maximum Turning Diameter: ~14.5″ (≈ 368 mm)
Maximum Swing Over Bed: ~20.8″
Maximum Turning Length (Distance Between Centers): ~20.5″ (≈ 520 mm)
X-Axis Travel: 10.2″
Z-Axis Travel: 20.5″
Rapid Traverse (X): ~787 IPM
Rapid Traverse (Z): ~984 IPM
Spindle Speed Range: Up to ~4,500 RPM
Spindle Motor / Horsepower: ~20 HP (≈ 15 kW)
Turret / Tooling: 12-station turret
Machine Dimensions: Approx. 110″ × 68″ × 80″ (with chip conveyor ~140″)
Machine Weight: ~9,000 lb
