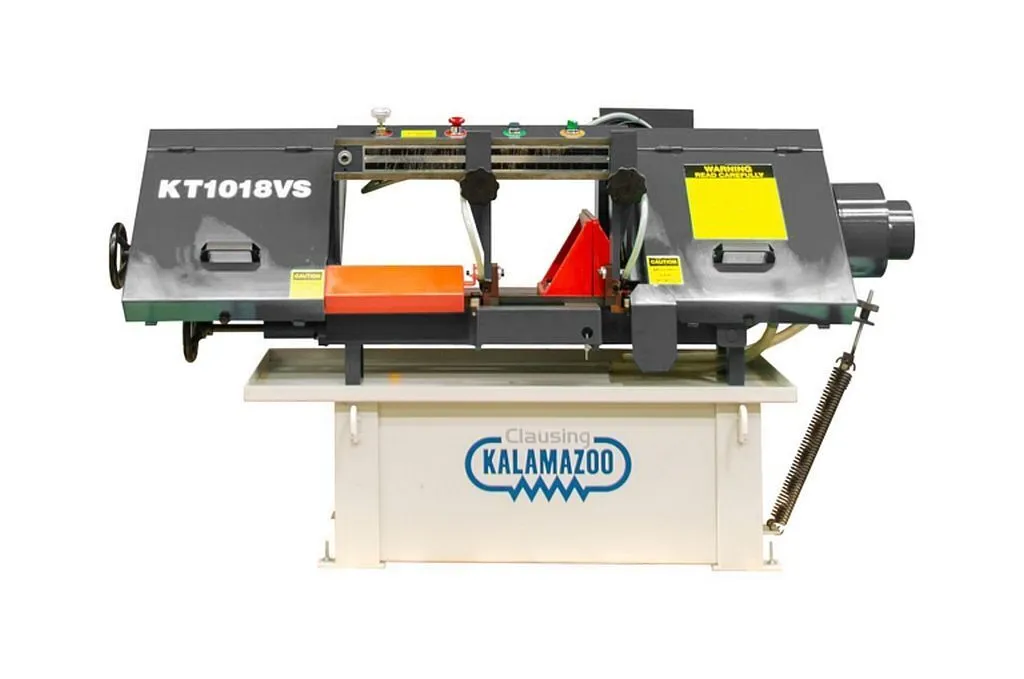

New Clausing Kalamazoo KT1018VS Manual Horizontal Bandsaw
Have one to sell?
ConditionNew
New
New Clausing Kalamazoo KT1018VS Manual Horizontal Bandsaw with max rectangular capacity of 18” x 6”. Features a 2hp variable speed motor, cast iron bed, hydraulic head control, and recirculating coolant system for precision cuts.
Specifications:
• Machine Style..........Manual
• Drive Type..........Step Pulley Drive
• Style..........Horizontal Wet Cut
• KT1018VS-Motor, Variable Speed Drive..........2hp 230v or 460v 3ph
• Blade Wheel Diameter..........15.4” flanged, cast iron
• Blade..........1” x .035” x 11’-4-1/2”
• Bed Height..........21.8”
• Blade Speeds VS models..........Variable 69-321 fpm
• 90° Cutting Capacity
- Round..........10”
- Rectangular..........18” x 6” or 10” x 16”
• 45° Cutting Capacity
- Round..........8”
- Rectangular..........8”x6” or 4”x9” or 3”x10”
• Length..........74.8”
• Width..........29.1”
• Depth..........39.4”
• Height (head-up)..........60.4”
• Height (head-down)..........39.4”
• Net Weight..........685 lbs.
• Shipping Weight..........888 lbs.
• Shipping Dimensions (LxWxH)..........80.3” x 35.4” x 45.3”
Machine Features:
• 2hp drive motor with magnetic starter and overload protection
• Quick positioning 45º vise
• Cast iron bed
• Totally enclosed transmission
• Quick and simple speed change
• 1” wide blade
• Blade cleaning brush
• Solid carbide blade guides with rollers
• Recirculating coolant system with application through both guides
• Stock stop
• Easily adjusted head feed
• Head control is hydraulic cylinder operated by needle valve
• Two Year Limited Warranty
New Clausing Kalamazoo KT1018VS Manual Horizontal Bandsaw with max rectangular capacity of 18” x 6”. Features a 2hp variable speed motor, cast iron bed, hydraulic head control, and recirculating coolant system for precision cuts.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausings Manual BandsawsManual Bandsaws comes with simplified control switches mounted on saw head as well as easy blade change with front access at waist level.
Valve controlled hydraulic cylinder head feed can be adjusted for different types and sizes of material.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Rect-Cap (H) | 6" |
| Rect-Cap (W) | 18" |
| Rounds-Cap | 10" |
| Power | 2 hp |
| Type (Auto, Manual, Semi) | Manual |
| Blade Width | 1" |
| Blade Thickness | 0.035" |
| Blade Length | 136.5" |
| Dimensions | 74.8" x 29.1" x 39.4" |
| Weight | 685Lbs. |
Specifications:
• Machine Style..........Manual
• Drive Type..........Step Pulley Drive
• Style..........Horizontal Wet Cut
• KT1018VS-Motor, Variable Speed Drive..........2hp 230v or 460v 3ph
• Blade Wheel Diameter..........15.4” flanged, cast iron
• Blade..........1” x .035” x 11’-4-1/2”
• Bed Height..........21.8”
• Blade Speeds VS models..........Variable 69-321 fpm
• 90° Cutting Capacity
- Round..........10”
- Rectangular..........18” x 6” or 10” x 16”
• 45° Cutting Capacity
- Round..........8”
- Rectangular..........8”x6” or 4”x9” or 3”x10”
• Length..........74.8”
• Width..........29.1”
• Depth..........39.4”
• Height (head-up)..........60.4”
• Height (head-down)..........39.4”
• Net Weight..........685 lbs.
• Shipping Weight..........888 lbs.
• Shipping Dimensions (LxWxH)..........80.3” x 35.4” x 45.3”
Machine Features:
• 2hp drive motor with magnetic starter and overload protection
• Quick positioning 45º vise
• Cast iron bed
• Totally enclosed transmission
• Quick and simple speed change
• 1” wide blade
• Blade cleaning brush
• Solid carbide blade guides with rollers
• Recirculating coolant system with application through both guides
• Stock stop
• Easily adjusted head feed
• Head control is hydraulic cylinder operated by needle valve
• Two Year Limited Warranty
