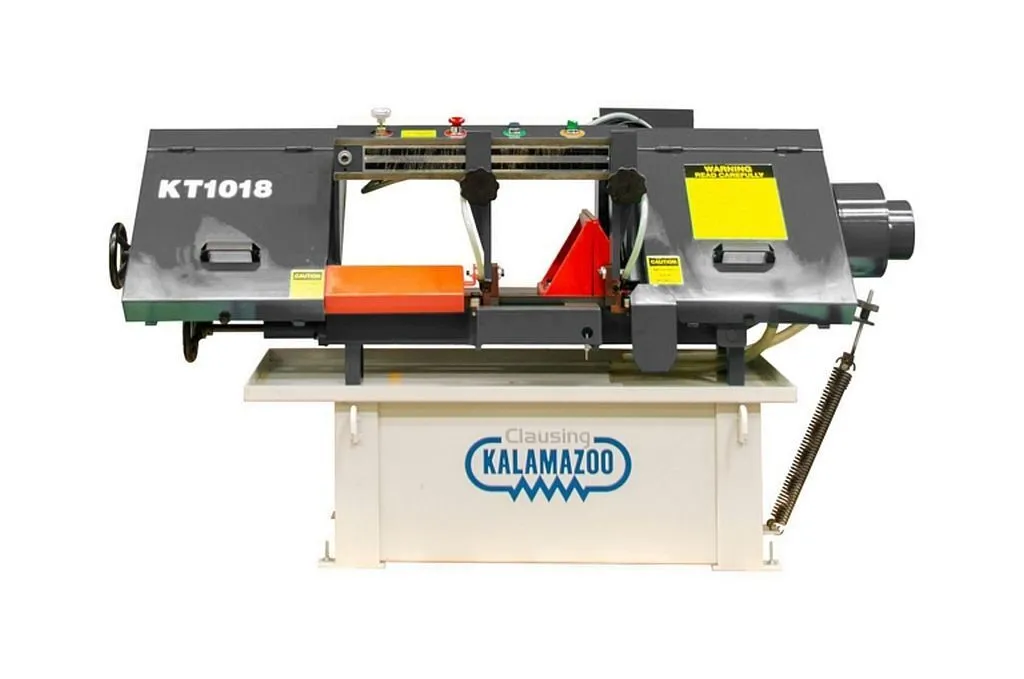

New 2025 Clausing Kalamazoo KT1018W Manual Horizontal Bandsaw offers precision cutting with a 10" round and 18"x6" rectangular capacity. Features include a 2hp motor, hydraulic head control, and a recirculating coolant system for efficient operation.
Specifications:
• Machine Style..........Manual
• Drive Type..........Step Pulley Drive
• Style...........Horizontal Wet Cut
• KT1018VS1-Motor, Variable Speed Drive..........2 hp 110v or 220v 1ph
• KT1018W-Motor, Variable Speed Drive..........2 hp 230v or 460v 3ph
• Blade Wheel Diameter...........15.4” flanged, cast iron
• Blade..........1” x .035” x 11’-4-1/2”
• Bed Height...........21.8”
• Blade Speeds W models..........(4) 60, 125, 200, 300 fpm
• 90° Cutting Capacity
- Round..........10”
- Rectangular..........18” x 6” or 10” x 16”
• 45° Cutting Capacity
- Round..........8”
- Rectangular..........8”x6” or 4”x9” or 3”x10”
• Length..........74.8”
• Width..........29.1”
• Depth..........39.4”
• Height (head-up)..........60.4”
• Height (head-down)..........39.4”
• Net Weight..........685 lbs.
• Shipping Weight..........888 lbs.
• Shipping Dimensions (LxWxH)..........80.3” x 35.4” x 45.3”
Machine Features:
• 2 hp drive motor with magnetic starter and overload protection
• Quick positioning 45º vise
• Cast iron bed
• Totally enclosed transmission
• Quick and simple speed change
• 1” wide blade
• Blade cleaning brush
• Solid carbide blade guides with rollers
• Recirculating coolant system with application through both guides
• Stock stop
• Easily adjusted head feed
• Head control is hydraulic cylinder operated by needle valve
• Two Year Limited Warranty
