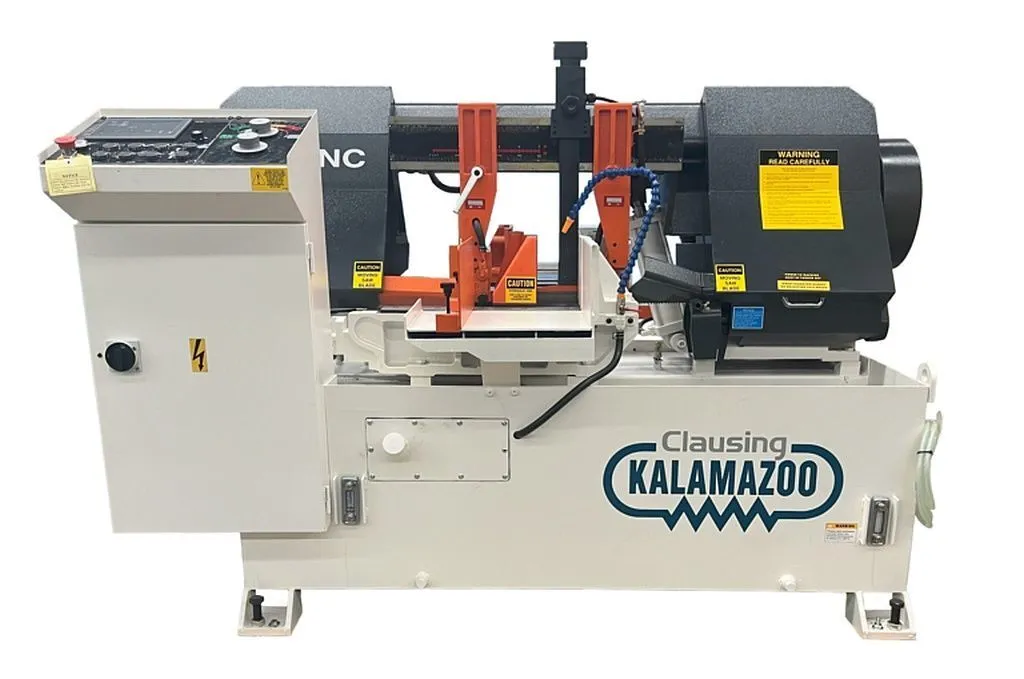

New 2025 Clausing Kalamazoo KC13NC Automatic Horizontal Bandsaw 12.8” x 15.0” Max Rectangular Capacity
Have one to sell?
ConditionNew
New
2025 Clausing Kalamazoo KC13NC Automatic Horizontal Bandsaw available, new condition. Max cutting: 12.8"x15" rectangular. Features 5Hp motor, variable speed 66-328 fpm, and hydraulic blade tension. Ideal for precise, efficient cutting. Specs available.
Machine Style.......................... Automatic
Drive Type............................. Infinitely Variable
*Motor................................. 5 Hp, *230 3 Ph
Hydraulic Pump Motor................... 1 Hp
Coolant Pump Motor..................... 1/8 Hp
Hydraulic Oil Capacity................. 9.2 gallons
Blade Speeds (Variable speed).......... 66-328 fpm
Blade Size (W x T x L)................. 1.3” x .043” x 150.4”
Blade Tension.......................... Hydraulic
Coolant................................ Recirculating
Coolant Capacity....................... 19.8 gallons
90° Cutting Capacity
Round................................ 12.8”
Square............................... 12.8”
Rectangular.......................... 12.8” x 15”
Feed Accuracy.......................... +\- .004” to .008”
Length of Remnant (manual)............. (.79”)
Length of Remnant (automatic).......... 1.97”
Minimum Cut Thickness.................. (.354”)
Bundle Cutting Width (Optional)........ 7.48” x 11.81”
Bundle Cutting Height (Optional)....... 2.75” to 5.51”
Feed Length/Index...................... 15.9”
Max. Feed.............................. 650”
Length................................. 80.5”
Width.................................. 79.3”
Height (head up)....................... 78.7”
Bed Height............................. 28.37”
Net Weight............................. 3,520 lbs.
Shipping Weight........................ 3,970 lbs.
Machine Features
• Oversized hydraulic cylinder
• Hydraulic shuttle vice assembly
• Inverter controlled infinitely variable speed
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• Smart NC-100 technology programmable up to 100 different jobs
• Easy recall and execution of stored parts
• Automatic shutoff after preset number of cuts or when out of stock
• 5.7” HMI touch screen incorporating readout on blade speed,
• blade life, feed vise position and error code display for self-diagnostics
• Automatic kerf loss compensation & computer controlled multiple indexing
• Precision feed pressure & feed rate
• Bundle/single cutting mode switch
• Automatic height setting feature
• Hydraulic front and rear vises (full stroke)
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Adjustable cut-off stock fence
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads and an additional wire brush
• Operation and parts manual
• Two (2) year limited warranty
2025 Clausing Kalamazoo KC13NC Automatic Horizontal Bandsaw available, new condition. Max cutting: 12.8"x15" rectangular. Features 5Hp motor, variable speed 66-328 fpm, and hydraulic blade tension. Ideal for precise, efficient cutting. Specs available.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing Kalamazoo Automatic Horizontal Bandsaw
12.8” x 15.0” Max Rectangular Capacity, 12.8” Round Capacity, 66 to 328 SFPM Blade Speed, 5 Hp drive motor, 230/460 Volts 3 Phase
Imperial
| Rect-Cap (H) | 12.8" |
| Rect-Cap (W) | 15" |
| Rounds-Cap | 12.8" |
| Square-Cap | 12.8" |
| Power | 5 hp |
| Type (Auto, Manual, Semi) | Auto |
| Blade Width | 1.3" |
| Blade Thickness | 0.043" |
| Blade Length | 150.4" |
| Control | CNC |
| Dimensions | 80.5 x 79.3 x 28.37 |
| Weight | 3520 lbs. |
Machine Style.......................... Automatic
Drive Type............................. Infinitely Variable
*Motor................................. 5 Hp, *230 3 Ph
Hydraulic Pump Motor................... 1 Hp
Coolant Pump Motor..................... 1/8 Hp
Hydraulic Oil Capacity................. 9.2 gallons
Blade Speeds (Variable speed).......... 66-328 fpm
Blade Size (W x T x L)................. 1.3” x .043” x 150.4”
Blade Tension.......................... Hydraulic
Coolant................................ Recirculating
Coolant Capacity....................... 19.8 gallons
90° Cutting Capacity
Round................................ 12.8”
Square............................... 12.8”
Rectangular.......................... 12.8” x 15”
Feed Accuracy.......................... +\- .004” to .008”
Length of Remnant (manual)............. (.79”)
Length of Remnant (automatic).......... 1.97”
Minimum Cut Thickness.................. (.354”)
Bundle Cutting Width (Optional)........ 7.48” x 11.81”
Bundle Cutting Height (Optional)....... 2.75” to 5.51”
Feed Length/Index...................... 15.9”
Max. Feed.............................. 650”
Length................................. 80.5”
Width.................................. 79.3”
Height (head up)....................... 78.7”
Bed Height............................. 28.37”
Net Weight............................. 3,520 lbs.
Shipping Weight........................ 3,970 lbs.
Machine Features
• Oversized hydraulic cylinder
• Hydraulic shuttle vice assembly
• Inverter controlled infinitely variable speed
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• Smart NC-100 technology programmable up to 100 different jobs
• Easy recall and execution of stored parts
• Automatic shutoff after preset number of cuts or when out of stock
• 5.7” HMI touch screen incorporating readout on blade speed,
• blade life, feed vise position and error code display for self-diagnostics
• Automatic kerf loss compensation & computer controlled multiple indexing
• Precision feed pressure & feed rate
• Bundle/single cutting mode switch
• Automatic height setting feature
• Hydraulic front and rear vises (full stroke)
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Adjustable cut-off stock fence
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads and an additional wire brush
• Operation and parts manual
• Two (2) year limited warranty
