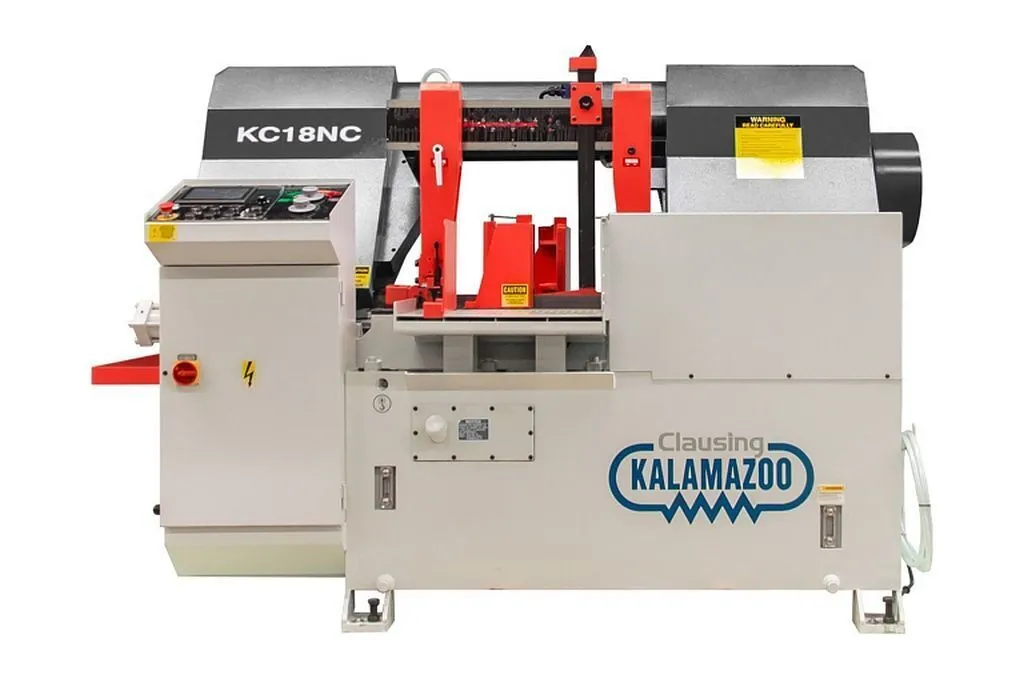

New 2025 Clausing Kalamazoo KC18NC Automatic Horizontal Bandsaw 18” x 18” Max Rectangular Capacity

Specifications:
Machine Style..........Automatic
Drive Type..........Infinitely Variable
*Motor..........7.5 Hp, *230 3 Ph
Hydraulic Pump Motor..........2 Hp
Hydraulic Oil Capacity..........10.6 gallons
Blade Speeds (Variable speed)..........66-328 fpm
Blade Size (W x T x L)..........1.5” x .050” x 184”
Blade Tension..........Hydraulic
Coolant..........Recirculating
Coolant Capacity..........21 gallons

90° Cutting Capacity:
Round..........18”
Square..........18”
Rectangular (H x H)..........18” x 18”

Feed Accuracy..........(+\- .004” to .008”)
Length of Remnant (manual)..........(.79”)
Length of Remnant (automatic)..........(2.95”)
Minimum Cut Thickness..........(.197”)
Bundle Cutting Width (Optional)..........7.48” x 11.81”
Bundle Cutting Height (Optional)..........2.75” to 5.51”
Feed Length/Index..........23.3”
Max. Feed..........252.6”
Length..........96.4”
Width..........90.9”
Height (head up)..........90.9”
Bed Height..........29.5”
Net Weight..........6,380 lbs.
Shipping Weight..........6,850 lbs.

Machine Features:
• Oversized hydraulic cylinder
• Hydraulic shuttle vice assembly
• Inverter controlled infinitely variable speed
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• Smart NC-100 technology programmable up to 100 different jobs
• Easy recall and execution of stored parts
• Automatic shutoff after preset number of cuts or when out of stock
• 5.7” HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics
• Automatic kerf loss compensation & computer controlled multiple indexing
• Precision feed pressure & feed rate
• Bundle/single cutting mode switch
• Automatic height setting feature
• Hydraulic front and rear vises
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Adjustable cut-off stock fence
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads and an additional wire brush
• Operation and parts manual
• Two (2) year limited warranty
