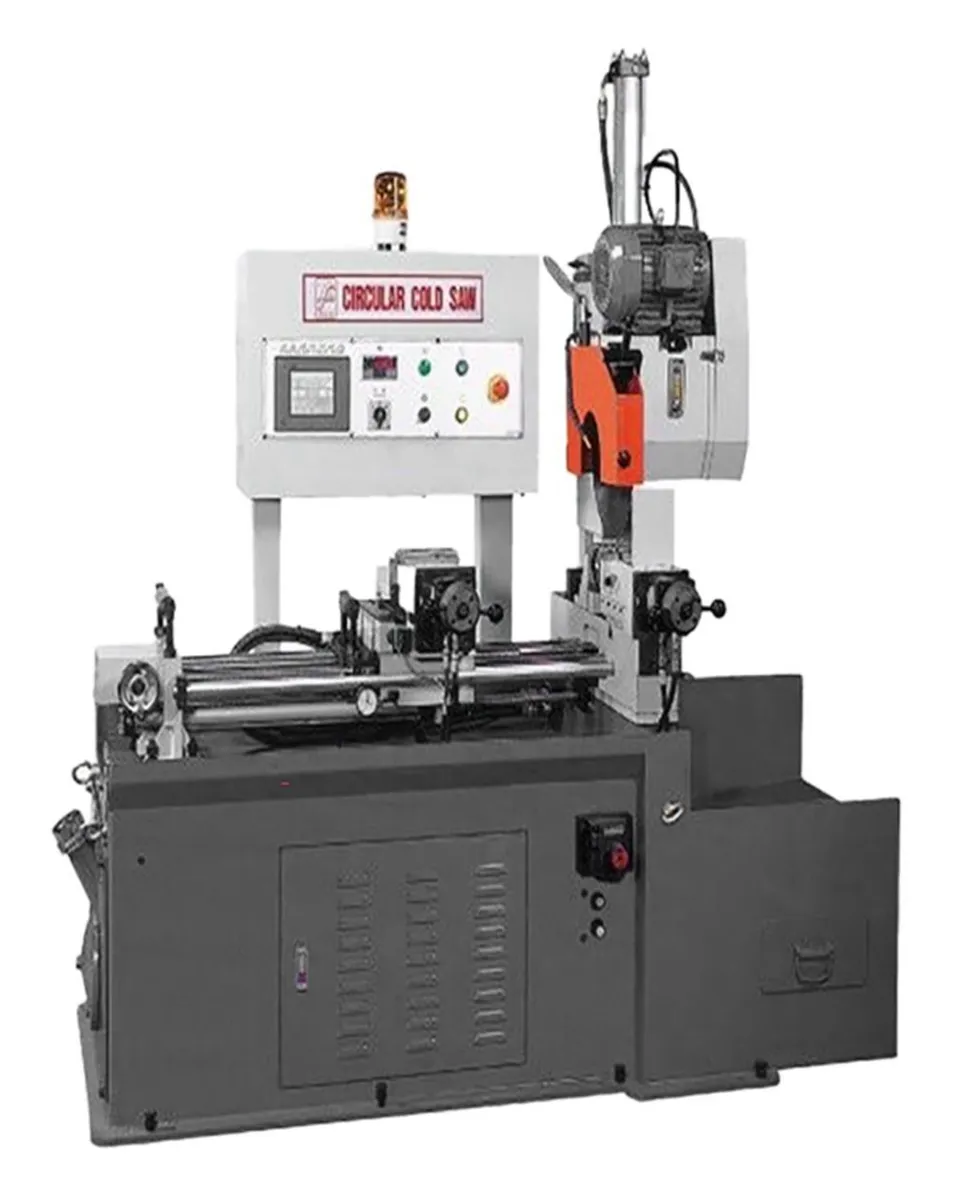

New 2025 Clausing Kalamazoo FHC475AV Circular Cold Saw
Have one to sell?
ConditionNew
New
Introducing the new 2025 Clausing Kalamazoo FHC475AV Circular Cold Saw. A 14" blade powered by 5 hp, featuring an automatic cutting cycle, two-speed gearbox, and a flood coolant system. Ideal for cutting tubes and solids up to 4.33".
Specifications:
Machine Style..........Automatic
Drive Type..........Gear Box w/ Worm Gear
Barfeed Stroke w/multiple stroke (inch)..........0.19 to 77
Maximum Capacity Round Tube 90 (in)..........4.33
Maximum Capacity Square Tube 90 (in)..........3.93
Rectangular Tube 90 (inch)..........4.33 x 1.97
Round Solid 90 (inch)..........2.36
Square Solid 90 (inch)..........1.97
Cutting Angles..........90 only
Voltage..........230 or 460
Phase..........3
Coolant System..........Yes
Blade Width (inch)..........(.118)
Blade Length Size Diameter (inch)..........14
Blade Speeds (RPM)..........26 and 52
Maximum Vise Opening (inch)..........4.5
2 Speed Motor Horsepower..........3 and 5
Hydraulic Motor Horsepower..........3
Machine Size (LxWxH inch)..........77 x 51 x 79
Machine Weight (lbs.)..........3,080
Machine Features:
• Totally enclosed fan-cooled motor
• Enclosed worm gear drive for trouble-free operation
• Two speed motor 2 speed gearbox for Versatility
• 3 Hp Hydraulic system
• Automatic cutting cycles
• Automatic feed rate cycles
• Self-Centering Vise
• Flood Coolant System
• Foot pedal cycle start
• Heavy Duty Sheet Metal Base
• Interlocking door guards
• One general purpose circular saw blade
• Two Year Limited Warranty
Introducing the new 2025 Clausing Kalamazoo FHC475AV Circular Cold Saw. A 14" blade powered by 5 hp, featuring an automatic cutting cycle, two-speed gearbox, and a flood coolant system. Ideal for cutting tubes and solids up to 4.33".
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Ferrous model cold saws handle solid, tubing or flat stock mild steel giving a burr free cut. Head position only at 90 degrees for fast set up. The 2 speed spindle motor along with blade tooth selection allows for various ferrous material cutting applications. Automatic operation allows for hands free operation of the material cutting and barfeed operation for material infeed.
The unique self-centering vise keeps the material perfectly centered with the blade for absolutely perfect cuts.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Blade Dia | 14" |
| Power | 5 hp |
| Dimensions | 77" x 51" x 79" |
| Weight | 3080Lbs. |
Specifications:
Machine Style..........Automatic
Drive Type..........Gear Box w/ Worm Gear
Barfeed Stroke w/multiple stroke (inch)..........0.19 to 77
Maximum Capacity Round Tube 90 (in)..........4.33
Maximum Capacity Square Tube 90 (in)..........3.93
Rectangular Tube 90 (inch)..........4.33 x 1.97
Round Solid 90 (inch)..........2.36
Square Solid 90 (inch)..........1.97
Cutting Angles..........90 only
Voltage..........230 or 460
Phase..........3
Coolant System..........Yes
Blade Width (inch)..........(.118)
Blade Length Size Diameter (inch)..........14
Blade Speeds (RPM)..........26 and 52
Maximum Vise Opening (inch)..........4.5
2 Speed Motor Horsepower..........3 and 5
Hydraulic Motor Horsepower..........3
Machine Size (LxWxH inch)..........77 x 51 x 79
Machine Weight (lbs.)..........3,080
Machine Features:
• Totally enclosed fan-cooled motor
• Enclosed worm gear drive for trouble-free operation
• Two speed motor 2 speed gearbox for Versatility
• 3 Hp Hydraulic system
• Automatic cutting cycles
• Automatic feed rate cycles
• Self-Centering Vise
• Flood Coolant System
• Foot pedal cycle start
• Heavy Duty Sheet Metal Base
• Interlocking door guards
• One general purpose circular saw blade
• Two Year Limited Warranty
