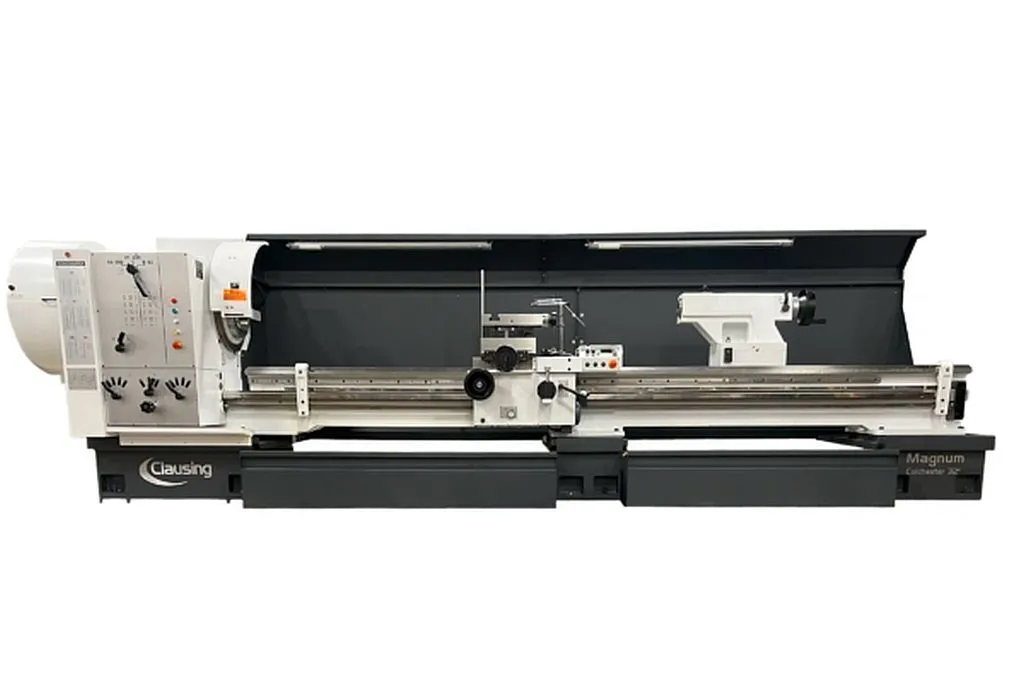

New 2025 Clausing/Colchester 8319VSJ – Magnum Variable Speed Lathe with 32.3” Swing over Bed, 3 Gear Infinitely Variable Speed Manual Gap Bed Engine Lathe
Have one to sell?
ConditionNew
New
Discover the 2025 Clausing/Colchester 8319VSJ Magnum Variable Speed Lathe with a 32.3" swing over bed and 120" between centers. Perfect for precision tasks with its advanced spindle drive, low-friction materials, and induction-hardened bedways.
Machine Style.......... Engine Lathe
Spindle Speed Control.......... Variable Speed
Spindle (Hp).......... 30 (20kw)
Swing Over Bed (inch).......... 32.3
Swing Over Cross slide (inch).......... 22.8
Swing in Gap (inch).......... 41.7
Distance Between Centers (inch).......... 120
Bed Width (inch).......... 19
Spindle Bore (inch).......... 4.09
Spindle Bore (option #1)(inch).......... 6.1
Spindle Bore (option #2) (inch).......... 9.05
Spindle Nose (camlock).......... D1-11
Spindle Nose (option #1).......... A2-11
Spindle Nose (option #2).......... A2-15
Spindle Nose Taper.......... 8 MT
Spindle Nose Taper (option #1).......... 7 MT
Spindle Nose Taper (option #2).......... N/A
Number of Spindle Speeds.......... 3 infinitely variable
Spindle Speed RPM Range.......... 18-1800
Spindle Speed RPM Range (option #1).......... 19-1000
Spindle Speed RPM Range (option#2).......... 8-600
Cross Slide Travel (inch).......... 15
Width of Cross Slide (inch).......... 11
Top Slide Travel (compound) (inch).......... 6.5
Tailstock Quill Diameter (inch).......... 4.125
Tailstock Quill Travel (inch).......... 12
Tailstock Quill Taper.......... 6 MT
Longitudinal Feed Range (in/rev).......... 0.002 – 0.125
Cross Feed Range (in/rev).......... 0.001 – 0.062
Number of Inch Pitches.......... 51
Range of Inch Pitches.......... 2 – 84
Number of Metric Pitches.......... 59
Range of Metric Pitches.......... 0.2 – 14
Number of Diametral Pitches.......... 27
Range of Diametral Pitches.......... 8 – 72
Number of Module Pitches.......... 20
Range of Module Pitches.......... 0.2 – 3.5
Coolant System.......... Yes
Voltage Required.......... 230/460
Phase.......... 3
Machine Foot Print (LxWxH) (inch).......... 151 x 70.8 x 74.8
Machine Weight (lbs.).......... 10,340
Machine Features:
• 120” between center distance
• 32.3” Swing over bed
• Bed mounted on precision cast plinths
• AC inverter variable speed spindle drive featuring surface mount technology for compact size and high reliability, 4 years parts and labor warranty (drive only)
• The machine controls are 24V for low voltage requirements
• Interlocked end guard door with easy access for maintenance and changing end train gears
• Able to reverse leadscrew while chuck is turning for faster thread cutting
• Easy to read index plate makes it simple to select the proper feed rate or threads
• Three headstock gear ranges for a wide spread of constant power – 33 to 1 – better than most CNC lathes
• Infinitely variable spindle speeds allows you to get the right spindle speed very quickly with a response like a CNC lathe, 18 – 1800 RPM displayed on headstock
• Electromagnetic spindle brake
• Forced lubrication system the spindle bearings, gears and shafts are lubricated by a forced lubrication system
• Precision Gamet tapered roller spindle bearings
• Chuck guard with limit switch
• 2 Axis power rapid traverse available from one lever mounted on saddle
• Low-friction “Moglice” PTFE material between the saddle and bed for minimal bedwear and longer machine life
• Saddle mounted chip guard and full rear splash guard
• Extra wide heavy-duty cast iron bed with triangular webs for exceptional torsional stiffness and excellent chip clearance
• Heavy duty tailstock for excellent rigidity – with extra heavy-duty quill
• Covered leadscrew protects leadscrew from chips
• Wheeled chip bin has a large capacity for easy chip disposal
• All bedways are induction hardened and precision ground
• Cast iron base provides the maximum support for the bed combined with sloping top surfaces to prevent the accumulation of coolant
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
Discover the 2025 Clausing/Colchester 8319VSJ Magnum Variable Speed Lathe with a 32.3" swing over bed and 120" between centers. Perfect for precision tasks with its advanced spindle drive, low-friction materials, and induction-hardened bedways.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing/Colchester Magnum Large Capacity Infinitely variable speed manual lathes are the industry standard for lathes. The quality built into every machine translates into real long-term performance for your application. The removable gap plate allows for large face plates to be mounted onto the spindle nose for various turning applications. Rugged construction, consistent quality in design and production, along with human engineering makes the operator more efficient, making this lathe a cost-effective investment. You will get unbelievable machine performance and operational longevity with the Clausing/Colchester Geared Head Lathes. Optional spindle bore sizes make these machines a best fit for large turning applications.
Imperial
| Swing | 32.3" |
| Centers | 120" |
| Spindle Bore | 4.09" |
| Power | 30 hp |
| RPM | 1,800 RPM |
| Swing Over Cross Slide | 22.8" |
| Dimensions | 151 x 70.8 x 74.8 |
| Weight | 10,340 lbs. |
Machine Style.......... Engine Lathe
Spindle Speed Control.......... Variable Speed
Spindle (Hp).......... 30 (20kw)
Swing Over Bed (inch).......... 32.3
Swing Over Cross slide (inch).......... 22.8
Swing in Gap (inch).......... 41.7
Distance Between Centers (inch).......... 120
Bed Width (inch).......... 19
Spindle Bore (inch).......... 4.09
Spindle Bore (option #1)(inch).......... 6.1
Spindle Bore (option #2) (inch).......... 9.05
Spindle Nose (camlock).......... D1-11
Spindle Nose (option #1).......... A2-11
Spindle Nose (option #2).......... A2-15
Spindle Nose Taper.......... 8 MT
Spindle Nose Taper (option #1).......... 7 MT
Spindle Nose Taper (option #2).......... N/A
Number of Spindle Speeds.......... 3 infinitely variable
Spindle Speed RPM Range.......... 18-1800
Spindle Speed RPM Range (option #1).......... 19-1000
Spindle Speed RPM Range (option#2).......... 8-600
Cross Slide Travel (inch).......... 15
Width of Cross Slide (inch).......... 11
Top Slide Travel (compound) (inch).......... 6.5
Tailstock Quill Diameter (inch).......... 4.125
Tailstock Quill Travel (inch).......... 12
Tailstock Quill Taper.......... 6 MT
Longitudinal Feed Range (in/rev).......... 0.002 – 0.125
Cross Feed Range (in/rev).......... 0.001 – 0.062
Number of Inch Pitches.......... 51
Range of Inch Pitches.......... 2 – 84
Number of Metric Pitches.......... 59
Range of Metric Pitches.......... 0.2 – 14
Number of Diametral Pitches.......... 27
Range of Diametral Pitches.......... 8 – 72
Number of Module Pitches.......... 20
Range of Module Pitches.......... 0.2 – 3.5
Coolant System.......... Yes
Voltage Required.......... 230/460
Phase.......... 3
Machine Foot Print (LxWxH) (inch).......... 151 x 70.8 x 74.8
Machine Weight (lbs.).......... 10,340
Machine Features:
• 120” between center distance
• 32.3” Swing over bed
• Bed mounted on precision cast plinths
• AC inverter variable speed spindle drive featuring surface mount technology for compact size and high reliability, 4 years parts and labor warranty (drive only)
• The machine controls are 24V for low voltage requirements
• Interlocked end guard door with easy access for maintenance and changing end train gears
• Able to reverse leadscrew while chuck is turning for faster thread cutting
• Easy to read index plate makes it simple to select the proper feed rate or threads
• Three headstock gear ranges for a wide spread of constant power – 33 to 1 – better than most CNC lathes
• Infinitely variable spindle speeds allows you to get the right spindle speed very quickly with a response like a CNC lathe, 18 – 1800 RPM displayed on headstock
• Electromagnetic spindle brake
• Forced lubrication system the spindle bearings, gears and shafts are lubricated by a forced lubrication system
• Precision Gamet tapered roller spindle bearings
• Chuck guard with limit switch
• 2 Axis power rapid traverse available from one lever mounted on saddle
• Low-friction “Moglice” PTFE material between the saddle and bed for minimal bedwear and longer machine life
• Saddle mounted chip guard and full rear splash guard
• Extra wide heavy-duty cast iron bed with triangular webs for exceptional torsional stiffness and excellent chip clearance
• Heavy duty tailstock for excellent rigidity – with extra heavy-duty quill
• Covered leadscrew protects leadscrew from chips
• Wheeled chip bin has a large capacity for easy chip disposal
• All bedways are induction hardened and precision ground
• Cast iron base provides the maximum support for the bed combined with sloping top surfaces to prevent the accumulation of coolant
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
