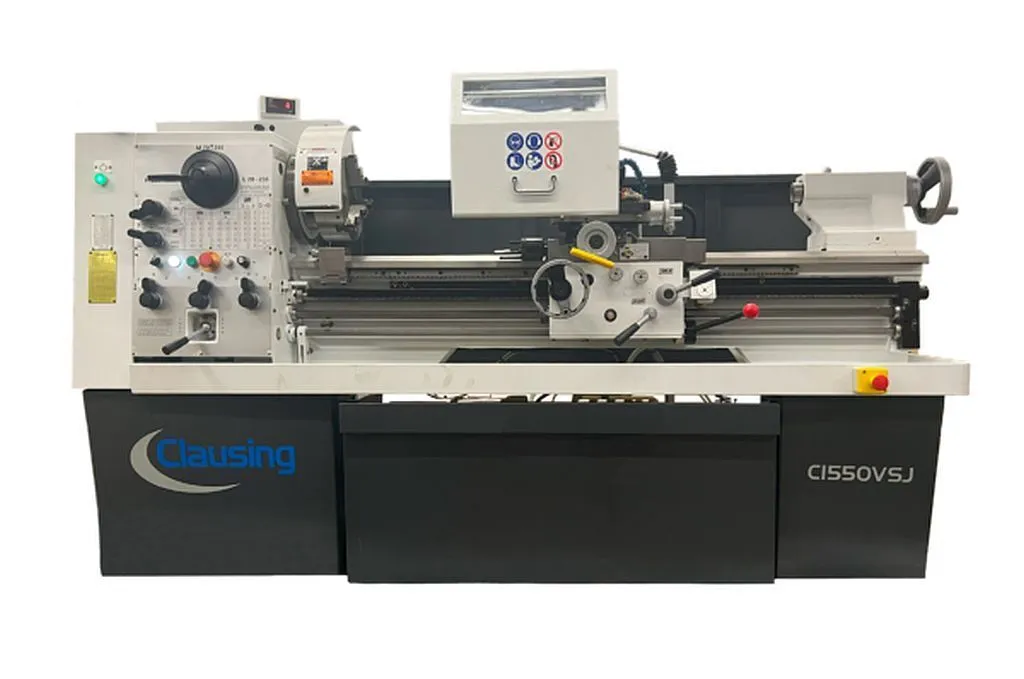

Clausing C1550SVSJ Variable Speed, Straight Bed Engine Lathe

Specifications:
Machine Style..........Engine Lathe
Spindle Speed Control..........Variable Inverter
Spindle (Hp)..........10
Swing Over Bed (inch)..........15.25
Swing Over Cross slide (inch)..........9.5
Swing in Gap (inch) –
Distance Between Centers (inch)..........50
Bed Width (inch)..........11
Spindle Bore (inch)..........2.125
Spindle Nose (camlock)..........D1-6
Spindle Nose Taper..........6 MT
Number of Spindle Speeds..........3
Spindle Speed RPM Range..........18 – 2500
Cross Slide Travel (inch)..........9
Width of Cross Slide (inch)..........6.47
Top Slide Travel (compound) (inch)..........4.75
Tailstock Quill Diameter (inch)..........2.312
Tailstock Quill Travel (inch)..........6.125
Tailstock Quill Taper..........4 MT
Longitudinal Feed Range (in/rev)..........0.0015 – 0.04
Cross Feed Range (in/rev)..........0.0008 – 0.02
Number of Inch Pitches..........45
Range of Inch Pitches..........2 – 72
Number of Metric Pitches..........39
Range of Metric Pitches..........0.2 – 14
Number of Diametral Pitches..........21
Range of Diametral Pitches..........8 – 44
Number of Module Pitches..........18
Range of Module Pitches..........0.3 – 3.5
Coolant System..........Yes
Voltage Required..........230/460
Phase..........3
Machine Foot Print (LxWxH) (inch)..........97 x 40 x 50
Machine Weight (lbs.)..........2,860

Machine Features:
• 50” between center distance
• D1-6 Camlock spindle nose
• 3-Gear range with inverter drive spindle speeds from 18 – 2500 rpm with soft start control
• 10 Hp (7.46Kw) spindle motor
• 15.25” swing over the bed
• Induction hardened and precision ground bed
• Headstock gears are precision hardened and ground
• Precision tapered roller spindle bearings
• Bed wipers and apron mounted one-shot lubrication pump
• Universal gearbox provides comprehensive range of metric, imperial (inch), M.P., and D.P. threading
• Thread dial indicator
• T-slotted top slide
• Inverter spindle braking system with chip trolley
• Equipped with interlocked chuck guard, full splash guard, and leadscrew cover
• 4-way tool post
• 10” 3-jaw chuck
• LED worklight
• Steady rest w/rollers 0.39” to 3.93” capacity
• Micrometer bedstop w/5 position turret positions
• Tool box and manual
• CE electrics
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
