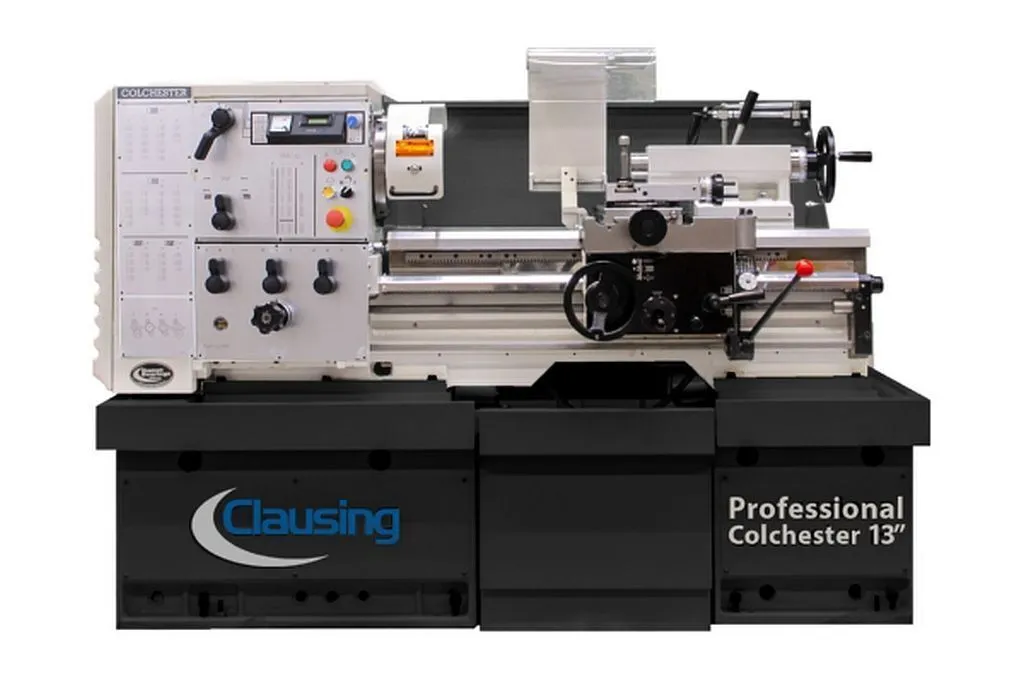

New 13.75" x 25" Clausing/Colchester 8016VSJ – Variable Speed Manual Gap Bed Lathe "In Stock Now"
Have one to sell?
ConditionNew
1 available
New
New Clausing/Colchester 8016VSJ Variable Speed Lathe. Features include a 13.75" swing over bed, 25" center distance, 10 HP, 15-3250 RPM spindle speeds, and innovative AC inverter drive. Weighs 3,300 lbs. Ideal for precision machining tasks.
Machine Style.................. Engine Lathe
Spindle Speed Control.......... Variable Speed
Spindle (Hp)................... 10
Swing Over Bed (inch).......... 13.75
Swing Over Cross slide (inch).. 7.75
Swing in Gap (inch)............ 21
Distance Between Centers (inch) 25
Bed Width (inch)............... 12.5
Spindle Bore (inch)............ 1.65
Spindle Nose (camlock)......... D1-4
Spindle Nose Taper............. 3 MT
Number of Spindle Speeds....... 3 infinitely variable
Spindle Speed RPM Range........ 15-3250
Cross Slide Travel (inch)...... 9.8
Width of Cross Slide (inch).... 7.09
Top Slide Travel (compound) (inch) 5.5
Tailstock Quill Diameter (inch) 2.48
Tailstock Quill Travel (inch).. 5.5
Tailstock Quill Taper.......... 4 MT
Longitudinal Feed Range (in/rev) 0.0014 – 0.048
Cross Feed Range (in/rev)...... 0.0007 – 0.024
Number of Inch Pitches......... 56
Range of Inch Pitches.......... 2 – 56
Number of Metric Pitches....... 20
Range of Metric Pitches........ 0.2 – 14
Number of Diametral Pitches.... 20
Range of Diametral Pitches..... 8 – 56
Number of Module Pitches....... 51
Range of Module Pitches........ 0.2 – 3.5
Coolant System................. Yes
Voltage Required............... 230/460
Phase.......................... 3
Machine Foot Print (LxWxH) (inch) 75 x 63 x 44
Machine Weight (lbs.).......... 2,970
Machine Features:
• 25” between center distance
• 13.75” swing over bed
• AC inverter variable speed spindle drive featuring surface mount technology for compact size and high reliability, 4 years parts and labor warranty (drive only)
• Headstock shafts are splined and turn on anti-friction bearings with headstock gears hardened and ground.
• Three headstock gear ranges for a wide spread of constant power – 33 to 1 – better than most CNC lathes
• Infinitely variable spindle speeds achieve the right spindle speed very quickly with a response like a CNC lathe, speed range 15 – 3250 RPM displayed on headstock
• Forced lubrication system for the spindle bearings, gears and shafts
• A broad range of feed and thread selections are available by using three selector levers and an 8 position rotary dial
• Wheeled Chip Bin has a large capacity for easy chip disposal
• All bedways are induction hardened and precision ground
• Precision tapered roller spindle bearings
• Cross slide runs along a dovetail guide
• Bed wipers and apron mounted one-shot lubrication pump
• Cast iron plinths with full length splash guard and traveling chip guard
• Electromagnetic spindle brake
• Equipped with chuck guard, full splash guard, and leadscrew cover
• Leadscrew reversing box for faster thread cutting – reversal of the leadscrew with the spindle running at low speed
• Extra wide heavy-duty cast iron bed with triangular webs for exceptional torsional stiffness and excellent chip clearance
• Anti-friction carriage ways with low-friction “Moglice” PTFE material fitted between the saddle and bed for minimal bedwear and increased machine life
• Cast iron base provides the maximum support for the bed combined with sloping top surfaces to prevent the accumulation of coolant
• Heavy duty tailstock for excellent rigidity – with extra heavy-duty quill
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
New Clausing/Colchester 8016VSJ Variable Speed Lathe. Features include a 13.75" swing over bed, 25" center distance, 10 HP, 15-3250 RPM spindle speeds, and innovative AC inverter drive. Weighs 3,300 lbs. Ideal for precision machining tasks.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing/Colchester Infinitely variable speed lathes are the industry standard for lathes. The quality built into every machine translates into real long term performance for your application. The removable gap plate allows for large face plates to be mounted onto the spindle nose for various turning applications. Rugged construction, consistent quality in design and production, along with human engineering makes the operator more efficient, making this lathe a cost effective investment. You will get unbelievable machine performance and operational longevity with the Clausing/Colchester Geared Head Lathes.
Imperial
| Swing | 13.75" |
| Centers | 25" |
| Spindle Bore | 1.65" |
| Power | 10 hp |
| RPM | 3,250 RPM |
| Swing Over Cross Slide | 7.75" |
| Dimensions | 75 x 63 x 44 |
| Weight | 2,970 lbs. |
Machine Style.................. Engine Lathe
Spindle Speed Control.......... Variable Speed
Spindle (Hp)................... 10
Swing Over Bed (inch).......... 13.75
Swing Over Cross slide (inch).. 7.75
Swing in Gap (inch)............ 21
Distance Between Centers (inch) 25
Bed Width (inch)............... 12.5
Spindle Bore (inch)............ 1.65
Spindle Nose (camlock)......... D1-4
Spindle Nose Taper............. 3 MT
Number of Spindle Speeds....... 3 infinitely variable
Spindle Speed RPM Range........ 15-3250
Cross Slide Travel (inch)...... 9.8
Width of Cross Slide (inch).... 7.09
Top Slide Travel (compound) (inch) 5.5
Tailstock Quill Diameter (inch) 2.48
Tailstock Quill Travel (inch).. 5.5
Tailstock Quill Taper.......... 4 MT
Longitudinal Feed Range (in/rev) 0.0014 – 0.048
Cross Feed Range (in/rev)...... 0.0007 – 0.024
Number of Inch Pitches......... 56
Range of Inch Pitches.......... 2 – 56
Number of Metric Pitches....... 20
Range of Metric Pitches........ 0.2 – 14
Number of Diametral Pitches.... 20
Range of Diametral Pitches..... 8 – 56
Number of Module Pitches....... 51
Range of Module Pitches........ 0.2 – 3.5
Coolant System................. Yes
Voltage Required............... 230/460
Phase.......................... 3
Machine Foot Print (LxWxH) (inch) 75 x 63 x 44
Machine Weight (lbs.).......... 2,970
Machine Features:
• 25” between center distance
• 13.75” swing over bed
• AC inverter variable speed spindle drive featuring surface mount technology for compact size and high reliability, 4 years parts and labor warranty (drive only)
• Headstock shafts are splined and turn on anti-friction bearings with headstock gears hardened and ground.
• Three headstock gear ranges for a wide spread of constant power – 33 to 1 – better than most CNC lathes
• Infinitely variable spindle speeds achieve the right spindle speed very quickly with a response like a CNC lathe, speed range 15 – 3250 RPM displayed on headstock
• Forced lubrication system for the spindle bearings, gears and shafts
• A broad range of feed and thread selections are available by using three selector levers and an 8 position rotary dial
• Wheeled Chip Bin has a large capacity for easy chip disposal
• All bedways are induction hardened and precision ground
• Precision tapered roller spindle bearings
• Cross slide runs along a dovetail guide
• Bed wipers and apron mounted one-shot lubrication pump
• Cast iron plinths with full length splash guard and traveling chip guard
• Electromagnetic spindle brake
• Equipped with chuck guard, full splash guard, and leadscrew cover
• Leadscrew reversing box for faster thread cutting – reversal of the leadscrew with the spindle running at low speed
• Extra wide heavy-duty cast iron bed with triangular webs for exceptional torsional stiffness and excellent chip clearance
• Anti-friction carriage ways with low-friction “Moglice” PTFE material fitted between the saddle and bed for minimal bedwear and increased machine life
• Cast iron base provides the maximum support for the bed combined with sloping top surfaces to prevent the accumulation of coolant
• Heavy duty tailstock for excellent rigidity – with extra heavy-duty quill
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
