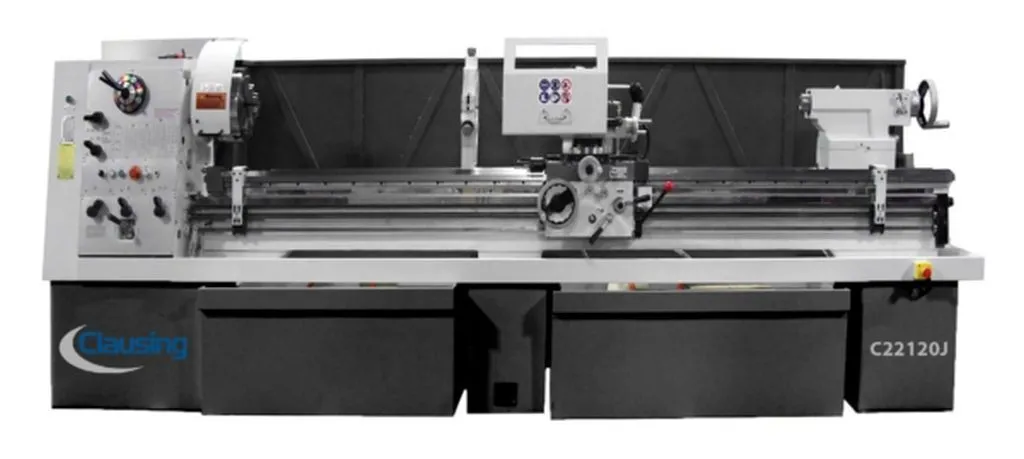

New 2025 Clausing C22120J Geared Head, Gap Bed Engine Lathe
Have one to sell?
ConditionNew
New
This Clausing C22120J Geared Head, Gap Bed Engine Lathe has 22” Swing over bed, 15 Hp Spindle motor, 120” between centers, 15.5” Swing over the cross slide, 20 to 1600 RPM, 16 Speed, 3.125” Spindle Bore, D1-8 camlock spindle nose, 3” Tailstock quill diameter with 5 morse taper bore, Inch/Metric threading with various pitch settings, 230/460 Volts, 3 Phase
Specifications:
Machine Style..........Engine Lathe
Spindle Speed Control..........Geared Head
Spindle (Hp)..........15
Swing Over Bed (inch)..........22
Swing Over Cross slide (inch)..........15.5
Swing in Gap (inch)..........32
Distance Between Centers (inch)..........120
Bed Width (inch)..........13
Spindle Bore (inch)..........3.125
Spindle Nose (camlock)..........D1-8
Spindle Nose Taper..........7 MT
Number of Spindle Speeds..........16
Spindle Speed RPM Range..........20 – 1600
Cross Slide Travel (inch)..........10.5
Width of Cross Slide (inch)..........7.8
Top Slide Travel (compound) (inch)..........5.1
Tailstock Quill Diameter (inch)..........3
Tailstock Quill Travel (inch)..........7
Tailstock Quill Taper..........5 MT
Longitudinal Feed Range (in/rev)..........0.0015 – 0.04
Cross Feed Range (in/rev)..........0.0008 – 0.02
Number of Inch Pitches..........45
Range of Inch Pitches..........2 – 72
Number of Metric Pitches..........39
Range of Metric Pitches..........0.2 – 14
Number of Diametral Pitches..........21
Range of Diametral Pitches..........8 – 44
Number of Module Pitches..........18
Range of Module Pitches..........0.3 – 3.5
Coolant System..........Yes
Voltage Required..........230/460
Phase..........3
Machine Foot Print (LxWxH) (inch)..........168 x 43 x 54
Machine Weight (lbs.)..........8,140
Machine Features:
• 120” between center distance
• D1-8 Camlock spindle nose
• 16-Step spindle speed from 20 – 1600 rpm with soft start control
• 15 Hp (11Kw) spindle motor
• 20” swing over the bed
• Induction hardened and precision ground bed
• Headstock gears are precision hardened and ground
• Precision tapered roller spindle bearings
• Bed wipers and apron mounted one-shot lubrication pump
• Universal gearbox provides comprehensive range of metric, imperial (inch), M.P., and D.P. threading
• Thread dial indicator
• T-slotted top slide
• Magnetic braking system with chip trolley
• Equipped with interlocked chuck guard, full splash guard, and leadscrew cover
• 4-way turret tool post
• 12” 3-jaw chuck
• LED worklight
• Steady rest w/rollers 0.98” to 5.3” capacity
• Micrometer bedstop w/5 position turret positions
• Tool box and manual
• CE electrics
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
