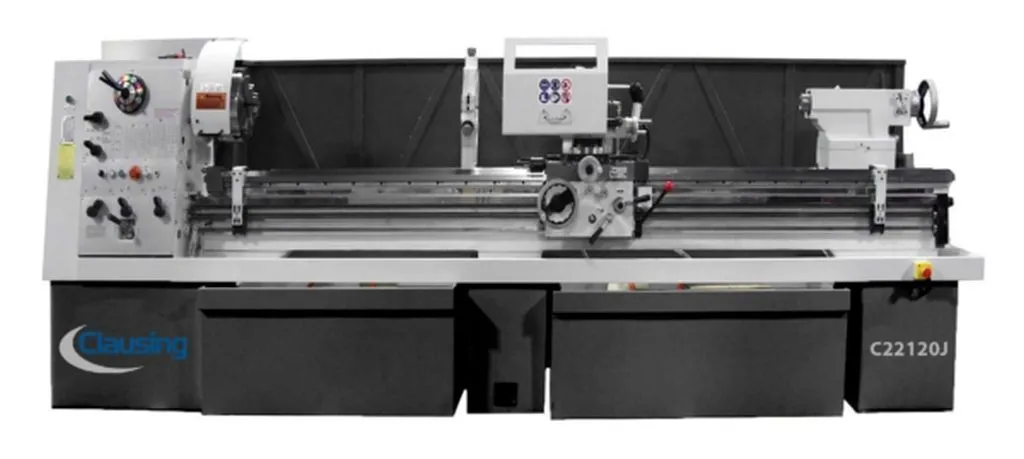

New Clausing C22120VSJ Variable Speed Gap Bed Engine Lathe
Have one to sell?
ConditionNew
New
This Clausing C22120VSJ Variable Speed, Gap Bed Engine Lathe has 22” Swing over bed, 15 Hp Spindle motor, 120” between centers, 15.5” Swing over the cross slide, 16 to 2000 RPM, 3 Speed gear range, 3.125” Spindle Bore, D1-8 camlock spindle nose, 3” Tailstock quill diameter with 5 morse taper bore, Inch/Metric threading with various pitch settings, 230/460 Volts, 3 Phase
Specifications:
• Machine Style..........Engine Lathe
• Spindle Speed Control..........Variable Inverter
• Spindle (Hp)..........15
• Swing Over Bed (inch)..........22
• Swing Over Cross slide (inch)..........15.5
• Swing in Gap (inch)..........32
• Distance Between Centers (inch)..........120
• Bed Width (inch)..........13
• Spindle Bore (inch)..........3.125
• Spindle Nose (camlock)..........D1-8
• Spindle Nose Taper..........7 MT
• Number of Spindle Speeds..........3
• Spindle Speed RPM Range..........16 – 2000
• Cross Slide Travel (inch)..........10.5
• Width of Cross Slide (inch)..........7.8
• Top Slide Travel (compound) (inch)..........5.1
• Tailstock Quill Diameter (inch)..........3
• Tailstock Quill Travel (inch)..........7
• Tailstock Quill Taper..........5 MT
• Longitudinal Feed Range (in/rev)..........0.0015 – 0.04
• Cross Feed Range (in/rev)..........0.0008 – 0.02
• Number of Inch Pitches..........45
• Range of Inch Pitches..........2 – 72
• Number of Metric Pitches..........39
• Range of Metric Pitches..........0.2 – 14
• Number of Diametral Pitches..........21
• Range of Diametral Pitches..........8 – 44
• Number of Module Pitches..........18
• Range of Module Pitches..........0.3 – 3.5
• Coolant System..........Yes
• Voltage Required..........230/460
• Phase..........3
• Machine Foot Print (LxWxH) (inch)..........128 x 43 x 54
• Machine Weight (lbs.)..........5,940
Machine Features:
• 120” between center distance
• D1-8 Camlock spindle nose
• 3-Gear range with inverter drive spindle speeds from 16 – 2000 rpm with soft start control
• 15 Hp (11Kw) spindle motor
• 20” swing over the bed
• Induction hardened and precision ground bed
• Headstock gears are precision hardened and ground
• Precision tapered roller spindle bearings
• Bed wipers and apron mounted one-shot lubrication pump
• Universal gearbox provides comprehensive range of metric, imperial (inch), M.P., and D.P. threading
• Thread dial indicator
• T-slotted top slide
• Magnetic braking system with chip trolley
• Equipped with interlocked chuck guard, full splash guard, and leadscrew cover
• 4-way turret tool post
• 12” 3-jaw chuck
• LED worklight
• Steady rest w/rollers 0.98” to 5.3” capacity
• Micrometer bedstop w/5 position turret positions
• Tool box and manual
• CE electrics
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
This Clausing C22120VSJ Variable Speed, Gap Bed Engine Lathe has 22” Swing over bed, 15 Hp Spindle motor, 120” between centers, 15.5” Swing over the cross slide, 16 to 2000 RPM, 3 Speed gear range, 3.125” Spindle Bore, D1-8 camlock spindle nose, 3” Tailstock quill diameter with 5 morse taper bore, Inch/Metric threading with various pitch settings, 230/460 Volts, 3 Phase
T.R. Wigglesworth Machinery Company has represented Clausing for over 40 years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
CLAUSING C-SERIES LATHES
Clausing variable speed lathes are the industry standard. The quality built into every machine translates into real long term performance for your application. The removable gap plate allows for large face plates to be mounted onto the spindle nose for various turning applications. Camlock Spindles, a wide range of spindle speeds, full length rear splash guard with coolant system, and inch/metric threading make this machine a must have for any machine shop.
Variable speed head lathes use a belt drive system from the motor to gearbox head. Speed changes are then selected by inverter drive, 3 range speed selection, and potentiometer.
Three phase voltage refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Swing | 22" |
| Centers | 120" |
| Spindle Bore | 3.125" |
| Power | 15 hp |
| RPM | 2,000 RPM |
| Swing Over Cross Slide | 15.5" |
| Control | CNC |
| Dimensions | 128" x 43" x 54" |
| Weight | 5,940Lbs |
Specifications:
• Machine Style..........Engine Lathe
• Spindle Speed Control..........Variable Inverter
• Spindle (Hp)..........15
• Swing Over Bed (inch)..........22
• Swing Over Cross slide (inch)..........15.5
• Swing in Gap (inch)..........32
• Distance Between Centers (inch)..........120
• Bed Width (inch)..........13
• Spindle Bore (inch)..........3.125
• Spindle Nose (camlock)..........D1-8
• Spindle Nose Taper..........7 MT
• Number of Spindle Speeds..........3
• Spindle Speed RPM Range..........16 – 2000
• Cross Slide Travel (inch)..........10.5
• Width of Cross Slide (inch)..........7.8
• Top Slide Travel (compound) (inch)..........5.1
• Tailstock Quill Diameter (inch)..........3
• Tailstock Quill Travel (inch)..........7
• Tailstock Quill Taper..........5 MT
• Longitudinal Feed Range (in/rev)..........0.0015 – 0.04
• Cross Feed Range (in/rev)..........0.0008 – 0.02
• Number of Inch Pitches..........45
• Range of Inch Pitches..........2 – 72
• Number of Metric Pitches..........39
• Range of Metric Pitches..........0.2 – 14
• Number of Diametral Pitches..........21
• Range of Diametral Pitches..........8 – 44
• Number of Module Pitches..........18
• Range of Module Pitches..........0.3 – 3.5
• Coolant System..........Yes
• Voltage Required..........230/460
• Phase..........3
• Machine Foot Print (LxWxH) (inch)..........128 x 43 x 54
• Machine Weight (lbs.)..........5,940
Machine Features:
• 120” between center distance
• D1-8 Camlock spindle nose
• 3-Gear range with inverter drive spindle speeds from 16 – 2000 rpm with soft start control
• 15 Hp (11Kw) spindle motor
• 20” swing over the bed
• Induction hardened and precision ground bed
• Headstock gears are precision hardened and ground
• Precision tapered roller spindle bearings
• Bed wipers and apron mounted one-shot lubrication pump
• Universal gearbox provides comprehensive range of metric, imperial (inch), M.P., and D.P. threading
• Thread dial indicator
• T-slotted top slide
• Magnetic braking system with chip trolley
• Equipped with interlocked chuck guard, full splash guard, and leadscrew cover
• 4-way turret tool post
• 12” 3-jaw chuck
• LED worklight
• Steady rest w/rollers 0.98” to 5.3” capacity
• Micrometer bedstop w/5 position turret positions
• Tool box and manual
• CE electrics
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
