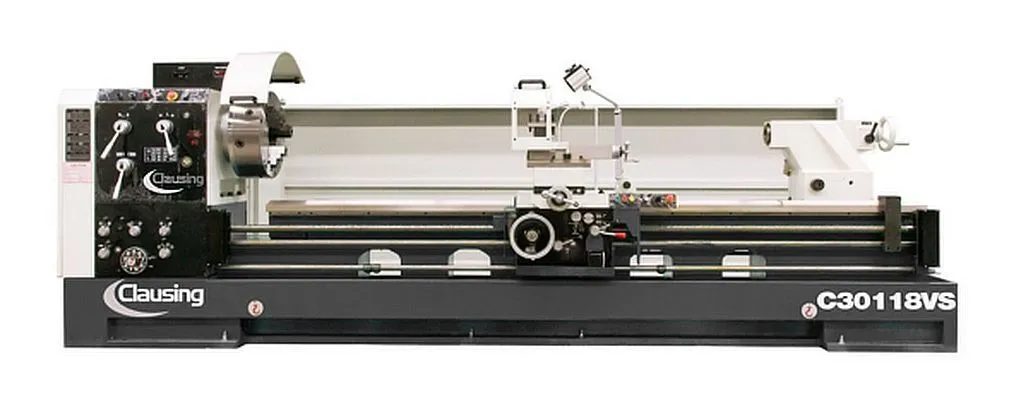

New 2026 - C30118VS Clausing 30.7" Swing over Bed, Variable Speed Gap Bed Engine Lathe

Machine Style.......... Engine Lathe
Spindle Speed Control.. Variable Inverter
Spindle (Hp)........... 20
Swing Over Bed (inch).. 30.7
Swing Over Cross slide (inch) 21.25
Swing in Gap (inch).... 42.12
Distance Between Centers (inch) 118
Bed Width (inch)....... 18
Spindle Bore (inch).... 4.125 (Opt 6)
Spindle Nose (camlock) A2-11
Spindle Nose Taper –
Spindle Speed RPM Range 25 - 1000
Cross Slide Travel (inch)...... 15.35
Width of Cross Slide (inch) –
Top Slide Travel (compound) (inch) 9.5
Tailstock Quill Diameter (inch) 4.13
Tailstock Quill Travel (inch) 8.26
Tailstock Quill Taper.. 6 MT
Longitudinal Feed Range (in/rev) (0.0019 – 0.027)
Cross Feed Range (in/rev) (0.00019 – 0.0135)
Number of Inch Pitches......... 36
Range of Inch Pitches.......... 2 – 28
Number of Metric Pitches....... 65
Range of Metric Pitches........ (0.8 – 14)
Number of Diametral Pitches.... 36
Range of Diametral Pitches..... 4 – 56
Number of Module Pitches....... 22
Range of Module Pitches........ (0.5 – 7)
Coolant System......... Yes
Voltage Required....... 230/460
Phase.................. 3
Machine Foot Print (LxWxH) (inch) 193 x 48.8 x 57.1
Machine Weight (lbs.).. 9,921

Machine Features:
• 118” between center distance
• 30.7” Swing over the bed
• A2-11 Spindle nose
• 3 Step Inverter drive spindle speeds allow optimum cutting speed for a wide range of machining applications. Speed range 14-1000 rpm
• 20 Hp Spindle Motor for exceptional machining power
• All gears are made from chromium molybdenum steel treated with cementation and precision ground for long life and dependability
• One-piece cast-iron bed from the ways to the floor provides a solid foundation to ensure maximum stability and rigidity under heavy machining operations
• 18” Bed Width, harden and ground, support the saddle and carriage assembly allowing superior positioning and repeatability accuracy
• Turcite “B” is fitted between the saddle and bed to greatly reduce friction and stick-slip for smooth operation and superior surface finishes.
The low friction Turcite ”B” also minimizes bed wear and extends the life of the machine
• Immersing style lead screw reduces abrasion
• 4-way rapid traverse for positioning and setup
• 4-way power feed for longitudinal, cross, and compound feeds
• Tailstock with 4.18” quill, manual positioning for ease of setup and operation
• 4.125” spindle bore supported with taper spindle bearings provides outstanding spindle performance and load carrying capabilities (optional bore sizes available)
• Coolant system for tool life and part cooling
• Automatic Lubrication system to all guideways
• Guarding powder coated for durability
• Full rear splash guard with chip pan
• A one-year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
