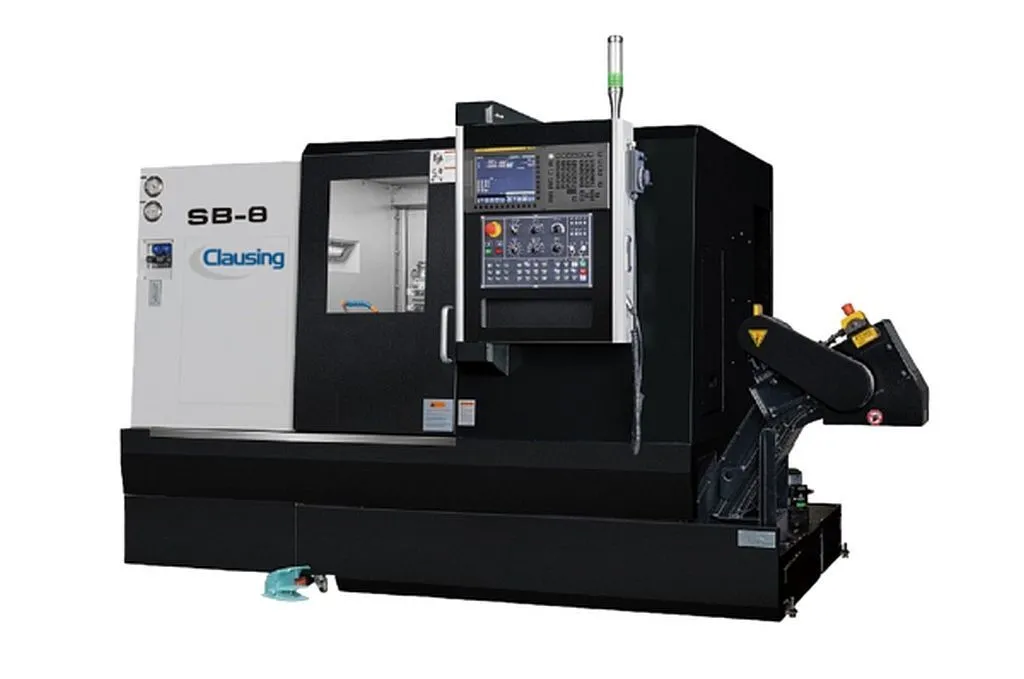

New 2025 Clausing SB-8 Clausing Slant Bed CNC Lathe, 20.8″ Swing Over Bed, 11.81″ Swing Over Saddle
Have one to sell?
ConditionNew
New
Slant Bed CNC Lathe, Linear X, Z Ways, 20.8” Swing over bed, 11.81” swing over saddle, 14.5” turning diameter, 15 Hp Spindle motor, 8” 3-jaw hydraulic chuck w/ through hole, 2” bar capacity and 2.59” spindle bore, A2-6 spindle nose, hydraulic tailstock w/ 2.9” quill diameter and 4 morse taper bore, 25 KVA
Machine Style.......... Slant Bed CNC Lathe
CNC Control.......... Fanuc Oi-TF Plus
Guideway.......... Linear X/Z
Swing Over Bed.......... 20.8”
Swing Over Saddle.......... 11.81”
Max Turning Diameter.......... 14.5”
Max Working Length.......... 23.62”
Bar Capacity.......... 2”
Chuck Size.......... 8”
Spindle Nose.......... A2-6
Max. Speed.......... 4500 rpm
Spindle Bearing I.D.......... 3.94”
Spindle Bore.......... 2.59”
Spindle HP.......... 15 Hp (11kw)
X-Axis Travel.......... 7.28” + 0.59”
Z-Axis Travel.......... 23.6”
X-Axis Cutting Feed Rate Max. .......... 393 ipm (10M/Min)
Z-Axis Cutting Feed Rate Max. .......... 393 ipm (10M/Min)
X Axis Rapid Feed Rate.......... 1181 ipm (30M/Min)
Z Axis Rapid Feed Rate.......... 1181 ipm (30M/Min)
Carriage inclination.......... 30 degree
Taper.......... 4MT
Quill Diameter.......... 2.9”
Quill Stroke.......... 2.9”
Travel (body).......... 21.6”
Type.......... Hydraulic
Disc Type.......... Std Square
Number of stations.......... 12
Turning tool shank size.......... .787” (20mm)
Max boring bar.......... 1-1/4” (32mm)
Max. Working Pressure.......... 3 Mpa
Max. Flow Rate.......... 20 L/min
Tank Capacity.......... 30L
Coolant Motor Hp.......... 1
Coolant Tank Capacity.......... 160L
Lube Tank Capacity.......... 2L
Air Source.......... 0.6 Mpa
Power Requirements.......... 25 KVA
Machine Size L x W x H.......... 90.5” x 67” x 79.5”
Machine Weight.......... 5,500 lbs.
Shipping Size.......... 103” x 79” x 93”
Shipping Weight.......... 6,500 lbs.
Machine Features:
• Fanuc Oi-TF control w/10.4” screen
• 8” 3-Jaw hydraulic chuck w/through hole and foot switch
• One set soft jaws, One set hard jaws
• Full enclosed splash guard
• 12 station hydraulic turret standard square tool disk
• 3 color operation condition light
• Coolant system w/coolant tank 3 bar
• Auto lubrication system
• Work Light
• Chain Type Chip Conveyor w/Cart
• Heat exchanger for electrical cabinet
• Leveling bolts and pads
• Maintenance and operation manuals
• Rigid Tapping
Slant Bed CNC Lathe, Linear X, Z Ways, 20.8” Swing over bed, 11.81” swing over saddle, 14.5” turning diameter, 15 Hp Spindle motor, 8” 3-jaw hydraulic chuck w/ through hole, 2” bar capacity and 2.59” spindle bore, A2-6 spindle nose, hydraulic tailstock w/ 2.9” quill diameter and 4 morse taper bore, 25 KVA
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
The Clausing SB-8 Slant Bed CNC Lathe is a compact, production-ready machine designed for precision and efficiency. Featuring a one-piece cast base and 30-degree slant bed construction made from Meehanite cast iron, this lathe ensures stability, reduced vibrations, and superior chip management. The linear way structure is highly rigid to suit all heavy-duty turning applications with rapid travels on the X and Z axes up to 1181”/min for increased productivity. The 12-station hydraulic turret produces enhanced clamping force and quick tool-to-tool time.
The machine’s 15 HP variable AC spindle drive delivers reliable torque for demanding turning applications, while its hydraulic tailstock and directly coupled servo motors to the ballscrews minimize backlash and distortion. A compact footprint, ergonomic design, and robust capabilities make this slant bed CNC lathe a perfect addition to any production environment looking for increased productivity.
The Fanuc Oi-TF CNC control delivers twice the processing speed of previous models. Its intuitive “Manual Guide” programming system simplifies program creation with conversational cycle prompts and toolpath graphics for verification. With features like Direct Drawing Dimension Programming, canned cycles (G70-G76), rigid tapping, and a 10.4″ color LCD display, the control enhances precision and efficiency. Seamless connectivity through USB, Ethernet, and RS-232 ports ensures smooth integration into your workflow.
Imperial
| Swing | 20.8" |
| Machining Length | 23.62" |
| # Axis | 2 |
| Chuck Size | 2.59" |
| Bar Capacity | 2" |
| Power | 15 hp |
| Max RPM | 4,500 RPM |
| Turning Dia | 14.59" |
| Tailstock | Yes |
| Control | CNC (Fanuc Oi-TF Plus) |
| Dimensions | 90.5” x 67” x 79.5” |
| Weight | 5,500 lbs. |
Machine Style.......... Slant Bed CNC Lathe
CNC Control.......... Fanuc Oi-TF Plus
Guideway.......... Linear X/Z
Swing Over Bed.......... 20.8”
Swing Over Saddle.......... 11.81”
Max Turning Diameter.......... 14.5”
Max Working Length.......... 23.62”
Bar Capacity.......... 2”
Chuck Size.......... 8”
Spindle Nose.......... A2-6
Max. Speed.......... 4500 rpm
Spindle Bearing I.D.......... 3.94”
Spindle Bore.......... 2.59”
Spindle HP.......... 15 Hp (11kw)
X-Axis Travel.......... 7.28” + 0.59”
Z-Axis Travel.......... 23.6”
X-Axis Cutting Feed Rate Max. .......... 393 ipm (10M/Min)
Z-Axis Cutting Feed Rate Max. .......... 393 ipm (10M/Min)
X Axis Rapid Feed Rate.......... 1181 ipm (30M/Min)
Z Axis Rapid Feed Rate.......... 1181 ipm (30M/Min)
Carriage inclination.......... 30 degree
Taper.......... 4MT
Quill Diameter.......... 2.9”
Quill Stroke.......... 2.9”
Travel (body).......... 21.6”
Type.......... Hydraulic
Disc Type.......... Std Square
Number of stations.......... 12
Turning tool shank size.......... .787” (20mm)
Max boring bar.......... 1-1/4” (32mm)
Max. Working Pressure.......... 3 Mpa
Max. Flow Rate.......... 20 L/min
Tank Capacity.......... 30L
Coolant Motor Hp.......... 1
Coolant Tank Capacity.......... 160L
Lube Tank Capacity.......... 2L
Air Source.......... 0.6 Mpa
Power Requirements.......... 25 KVA
Machine Size L x W x H.......... 90.5” x 67” x 79.5”
Machine Weight.......... 5,500 lbs.
Shipping Size.......... 103” x 79” x 93”
Shipping Weight.......... 6,500 lbs.
Machine Features:
• Fanuc Oi-TF control w/10.4” screen
• 8” 3-Jaw hydraulic chuck w/through hole and foot switch
• One set soft jaws, One set hard jaws
• Full enclosed splash guard
• 12 station hydraulic turret standard square tool disk
• 3 color operation condition light
• Coolant system w/coolant tank 3 bar
• Auto lubrication system
• Work Light
• Chain Type Chip Conveyor w/Cart
• Heat exchanger for electrical cabinet
• Leveling bolts and pads
• Maintenance and operation manuals
• Rigid Tapping
