2014 Clausing 3VS08 Knee Mill 54" Long x 10" Wide table
Have one to sell?
ConditionUsed
1 available

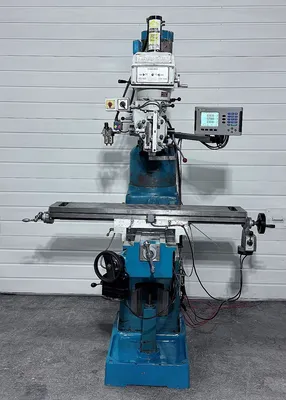

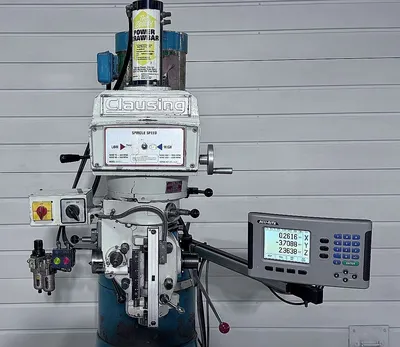

2014 Clausing 3VS08 Knee Mill now for sale. Features a 54"x10" table, 3 hp, 4,300 RPM, and R-8 taper. Includes 3-axis DRO, power drawbar, riser block, and coolant mist system. Ideal for precision machining. S/N P234617.
Model: 3VS08
S/N: P234617
New: 2014
Voltage: 460
Specifications
Machine Style.......... Knee Mill
Spindle Speed Control.......... Manual Variable Speed
Spindle (Hp).......... 3
Total Amp Draw @208V 3Ph 11
Total Amp Draw @230V 3PH 10
Total Amp Draw @460V 3Ph.......... 5

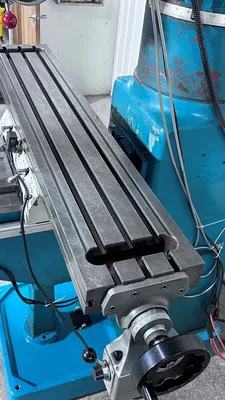

Table Size (inch).......... 10 x 54
Number T-Slots.......... 3
T-Slot Width (inch).......... .638
T-Slot Center Distance (inch).......... 2.08
Table Way Design.......... Dovetail
Cross Feed Way Design.......... Square
Knee Way Design.......... Dovetail
X Longitudinal Travel Manual (inch).......... 39.6
Y Cross Travel Manual (inch).......... 15.6
Knee Travel Manual (inch).......... 15
Ram Travel Manual (inch).......... 22
Variable Spindle Speed (rpm).......... 60 – 4300
Variable Spindle Speed Low Range (rpm).......... 60 – 500
Variable Spindle Speed High Range (rpm).......... 550 – 4300
Spindle Taper.......... R8
Spindle quill Travel (inch).......... 5
Quill Feed (in/rev).......... (.0015/.0031/.006)
Quill Diameter (inch).......... 3.38
Column Turret Diameter (inch).......... 14.96
Knee Width (inch).......... 12.99
Column Bearing Length (inch).......... 17.91
Saddle/Table Bearing Length (inch).......... 20.28
Ram/Turret Bearing Length (inch).......... 17.32
Ram Length (inch).......... 32.68
Table Load (lbs.).......... 665
Machine Weight (lbs.).......... 3,595lbs.
Voltage Required.......... 460
Phase.......... 3
Machine Foot Print (LxWxH) (inch).......... 101 x 78 x 87
Equipped with:

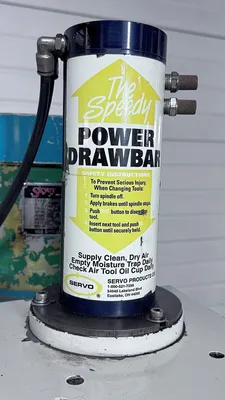

• Air operated power drawbar

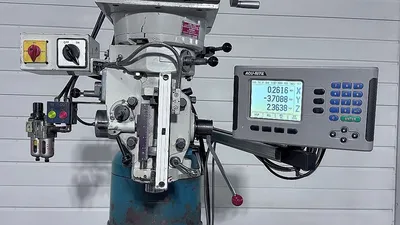

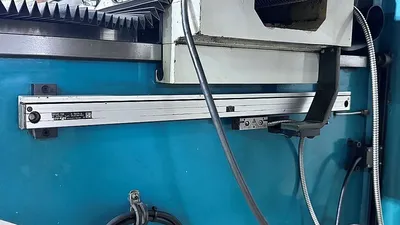

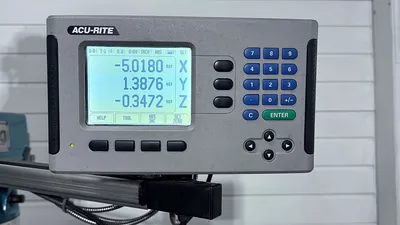

• Acu-rit 3 axis (quill DRO)

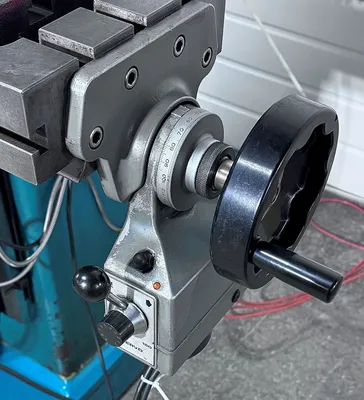

• X-axis Servo brand: power feed
• Y-axis Serve brand: power feed

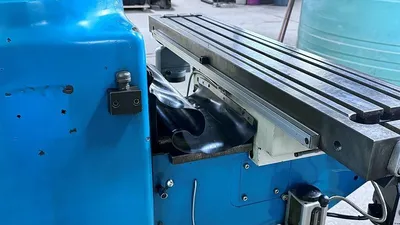

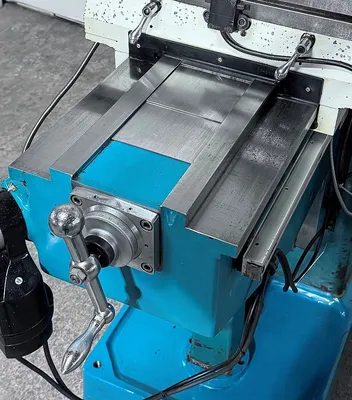

• Accordion style rubber way covers
• 8” Riser Block
• Coolant Mist System 1 Gal
Machine is sold "as is, loaded on truck".
2014 Clausing 3VS08 Knee Mill now for sale. Features a 54"x10" table, 3 hp, 4,300 RPM, and R-8 taper. Includes 3-axis DRO, power drawbar, riser block, and coolant mist system. Ideal for precision machining. S/N P234617.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Imperial
| Table-W | 10" |
| Table-L | 54" |
| Travel-Long | 36" |
| Travel-Cross | 15.74" |
| Power | 3 hp |
| RPM | 4,300 RPM |
| Taper | R-8 |
| Weight | 3,595 lbs. |
Model: 3VS08
S/N: P234617
New: 2014
Voltage: 460
Specifications
Machine Style.......... Knee Mill
Spindle Speed Control.......... Manual Variable Speed
Spindle (Hp).......... 3
Total Amp Draw @208V 3Ph 11
Total Amp Draw @230V 3PH 10
Total Amp Draw @460V 3Ph.......... 5
Table Size (inch).......... 10 x 54
Number T-Slots.......... 3
T-Slot Width (inch).......... .638
T-Slot Center Distance (inch).......... 2.08
Table Way Design.......... Dovetail
Cross Feed Way Design.......... Square
Knee Way Design.......... Dovetail
X Longitudinal Travel Manual (inch).......... 39.6
Y Cross Travel Manual (inch).......... 15.6
Knee Travel Manual (inch).......... 15
Ram Travel Manual (inch).......... 22
Variable Spindle Speed (rpm).......... 60 – 4300
Variable Spindle Speed Low Range (rpm).......... 60 – 500
Variable Spindle Speed High Range (rpm).......... 550 – 4300
Spindle Taper.......... R8
Spindle quill Travel (inch).......... 5
Quill Feed (in/rev).......... (.0015/.0031/.006)
Quill Diameter (inch).......... 3.38
Column Turret Diameter (inch).......... 14.96
Knee Width (inch).......... 12.99
Column Bearing Length (inch).......... 17.91
Saddle/Table Bearing Length (inch).......... 20.28
Ram/Turret Bearing Length (inch).......... 17.32
Ram Length (inch).......... 32.68
Table Load (lbs.).......... 665
Machine Weight (lbs.).......... 3,595lbs.
Voltage Required.......... 460
Phase.......... 3
Machine Foot Print (LxWxH) (inch).......... 101 x 78 x 87
Equipped with:
• Air operated power drawbar
• Acu-rit 3 axis (quill DRO)
• X-axis Servo brand: power feed
• Y-axis Serve brand: power feed
• Accordion style rubber way covers
• 8” Riser Block
• Coolant Mist System 1 Gal
Machine is sold "as is, loaded on truck".
