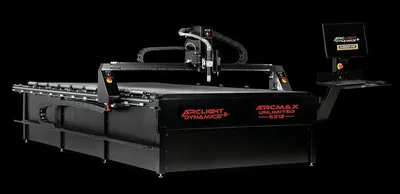

2025 Arc Max Unlimited 6x12 CNC Plasma Table
Have one to sell?
ConditionNew
New
The Arc Max Unlimited CNC Plasma Table from Arclight Dynamics is available in 6×12, 5×10, and 4×8. The Arc Max Unlimited CNC Plasma Cutting Tables are pushing the limits of what an air plasma cutter is capable of.
The Flashcut CNC software interface is simple and easy to run allowing anyone to walk up to the machine a cut a part with minimal effort and training. In minutes you can set up the machine to design and cut parts, allowing the operator to complete other projects.
The Unlimited Series of CNC Plasma Tables are designed specifically to be integrated with a Hypertherm MAXPRO200 or an Oxy-Fuel Torch.
An Arclight Dynamics CNC plasma table will be, hands down, the best investment for your shop and cost less than a part time employee. In addition, your new CNC Plasma Table will come with a full team of Arclight support technicians (Arc Angels) to assist you every step of the way.
Each Arc Max Unlimited CNC Plasma Table comes will an industry leading limited lifetime warranty on the table frame, 1 year warranty on its controller and motion control system, and a 1 year warranty on the dedicated computer.
We proudly build our CNC Plasma Tables in the United States. We believe strongly in honest business transparency without hidden fees or recurring charges.
Specifications:
• Cutting envelope..........149" x 73" x 6.5"
• Overall dimensions..........167” x 100.5” x 60”
• Weight capacity..........8,978 pounds
• Frame..........Reinforced and Fully Welded Steel
• Positioning Accuracy..........(.001")
• Dimensions at base..........82" x 157"
• Water pan capacity..........420 Gallons
• Table Power..........110V / 15-20A
• Overall Weight..........3500 pounds
• Controller..........Flashcut CNC
Features:
• Plate Capacity..........3 inch plate thickness
• MaxPro 200 Compatibility..........Yes
• Oxy-Fuel Compatibility..........Yes
• Slat Depth..........4.5 inches
• Controller..........Flashcut CNC
• Integrated CAD/CAM/CNC..........Yes
• Automatic Nesting Software..........Yes
• Work-Piece Alignment..........Yes
• Rapids..........800 IPM
• Motors..........Nema 34- 940 oz Stepper
• Motor Cabling..........XLR Quick Connectors
• Laser Alignment..........Optional
• Collision Detection..........System Ready
• Hole Cutting..........Smart 360® Hole Cutting Technology
• Serial Communication..........Yes
• Easy CAD/Image Import..........Yes
• CAD Error Fix Tool..........Yes
• CAD Feature Welding Tool..........Yes
• CAD-DXF Export..........Yes
• CAM 3D Cutting Simulation..........Yes
• CNC-THC Performance History Chart..........Yes
• CNC Automated Remanant Cut off..........Yes
• Ohmic & Mechanical Touch-Off..........Both
• CNC Automatic Lead-in on Restart..........Yes
OPTIONS:
1. Select a Plasma Cutter
Kjellberg K 200 (with quick disconnect torch)
Hypertherm MAXPRO200
Hypertherm Powermax 125
Hypertherm Powermax 105 SYNC
Hypertherm Powermax 85 SYNC
Hypertherm Powermax 65 SYNC
Hypertherm Powermax 45 SYNC
MP200 Quick Disconnect Torch Head
MP200 Consumable Kit
Provide Your Own Plasma Cutter
2. Select Options
Dual Plasma Torch Upgrade
Collision Detection and Bevel Cutting System
Dynamic Water Control
Tsunami Regenerative Air Dryer System
Air Filtration
Touch Screen Monitor
Laser Plate Alignment System
Flashcut Mobile Cabinet
Flashcut Hand Held Control Pendant
Plasma Rover
Cabinet Cover
Green Guard Rust Blocker
3. Select Accessories
OxyFuel Cutting System
Pipe and Tube Cutter
Router Kit
Plate Engraver
Logic Board Digitizing System (44" x 60")
4. Select A La Carte Flashcut Software Upgrades
V10 FC Chain and Bridge Cutting Software
V10 FC Common Line Cutting Software
V10 FC Job Costing & Nesting Report Software
V10 FC Remnant Support Software
V10 FC Collision Avoidence
V10 FC Advanced G-code File Management
5. Select Premium Bundled Flashcut Software Upgrades
Optional bundled upgrades for the Flashcut CNC System.
V10 FC Flashcut CNC Premium Bundle (No Remnant Support)
V10 FC Flashcut CNC Premium Bundle With Remnant Support
6. Additional Software Upgrades
All Unlimited systems include Flashcut CNC Software.
Design2Fab (HVAC Ductwork, Lifetime license)
Design2Fab (HVAC Ductwork, annual license)
VCarve Pro Router Table Software (Lifetime License)
ProNest LT Unlimited (Annual License)
ProNest LT Unlimited (Lifetime License)
