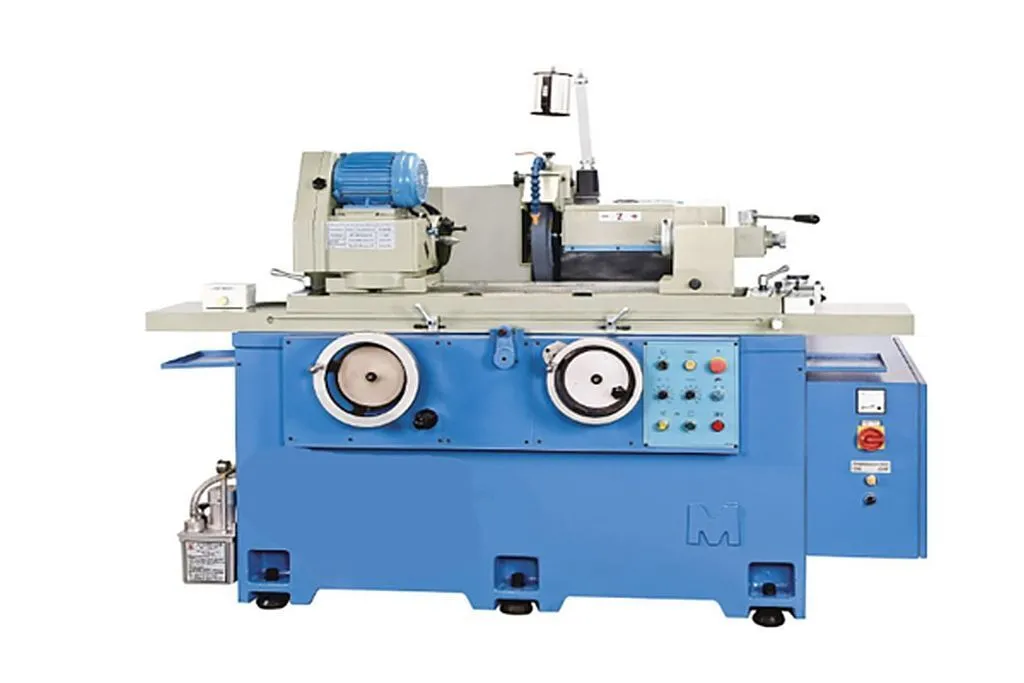

New 2025 Clausing CCG919AL 9" x 19" Precision Cylinder Grinder
Have one to sell?
ConditionNew
New
Clausing Manual Control 9 x 19 Precision Cylinder Grinder with X-axis manual feed and Z-axis is worm gear driven. Longitudinal and cross slides are configured with a V and Flat way. Inverter speed control 1900 rpm, 5 Hp Wheel Spindle drive motor, 230 or 460 volts, 3 ph
Machine Style.......... Manual
Distance Between Centers (inch).......... 19.68
Swing Over Table (inch).......... 9.84
Maximum Load of Centers (lbs.).......... 176
Maximum External Grinding Diameter (inch).......... 9.84
Wheel Head Swivel Angle.......... +/- 30 degrees
Wheel Head Manual Distance (inch).......... 5.9
Wheel Head Auto Rapid Advance (inch).......... 0.98
X-Axis Feed Slide Min Resolution Increment (inch).......... 0-0.0000984
Z-Axis Feed Slide rapid feed rate (in/min).......... 0 – 157
Grinding Wheel OD x W x ID (inch).......... 13.97 x 1.49 x 4
Grinding Wheel Speeds (2 speed variable change rpm).......... 1900/1500
Work Spindle Head Swivel Angle.......... 90 degrees
Work Spindle Head Center Taper.......... 4MT
Work Spindle Head Spindle Speeds Variable (rpm).......... 0 – 300
Work Spindle Head Max. Load of Spindle (including tool holder).......... 33lbs. 3.93” Max Long
Tailstock Center Taper.......... 3MT
Tailstock Quill Stroke (inch).......... 0.984
Table Swivel Angle.......... -4 to +8 degrees
Wheel Spindle Horsepower.......... 5
Workhead Spindle Horsepower.......... ½
Z-Motor Horsepower.......... ½
Wheel Spindle Lubrication Pump Horsepower.......... 1/8
Coolant Pump Horsepower.......... 1/8
Table Lubricator Motor Horsepower.......... 1/8
Wheel Spindle Lube Tank Capacity (liters).......... 7
Hydraulic Fluid Tank Capacity (liters).......... N/A
Coolant Tank Capacity (liters).......... 110
Machine Weight (lbs.).......... 5,390
Shipping Weight (lbs.).......... 5,940
Floor Dimensions W x D x H (inch).......... 59 x 36.5 x 53
Shipping Dimensions W x D x H (inch).......... 79 x 53 x 61
Machine Features:
• Distance between centers 19.68”
• Swing over table is 9.8
• Maximum grinding diameter is 9.8”
• Variable speed 2 Speed motor 1900/1500 rpm
• Wheel flange with nut
• Table mounted wheel dresser
• 2 Carbide tipped centers
• Work driving dog set (3pcs)
• Fagor DRO for inch measurement
• Optional internal grinding attachment
• 1 year limited warranty
