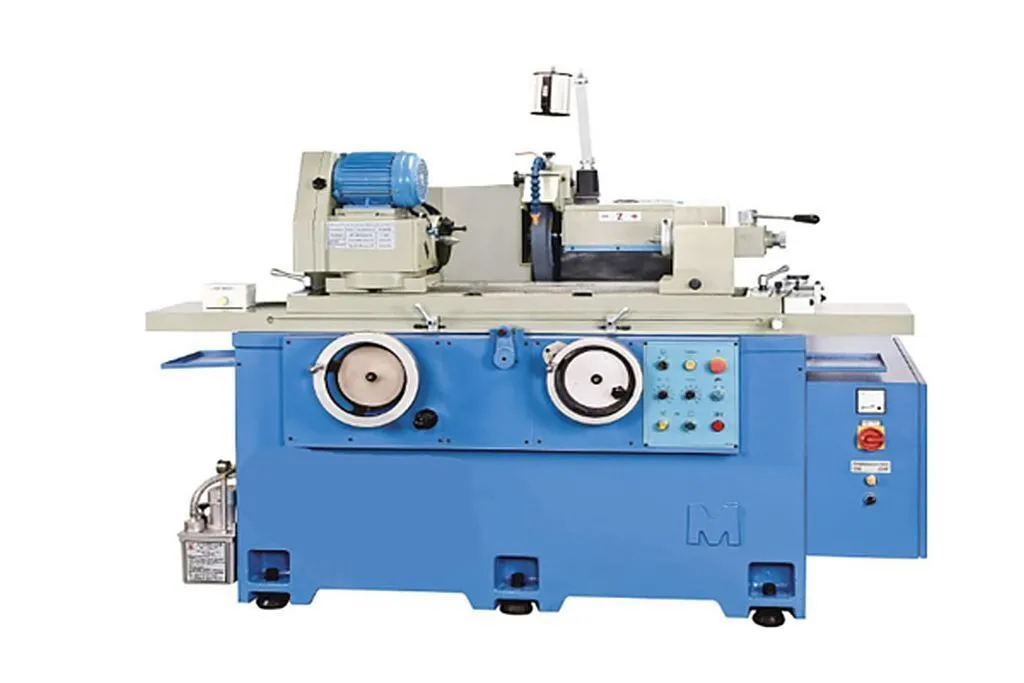

New 2025 Clausing CCG929AL 9" x 29" Precision Cylinder Grinder

Specifications
Machine Style.......... Manual
Distance Between Centers (inch).......... 29.5
Swing Over Table (inch).......... 9.84
Maximum Load of Centers (lbs.).......... 176
Maximum External Grinding Diameter (inch).......... 9.84
Wheel Head Swivel Angle.......... +/- 30 degrees
Wheel Head Manual Distance (inch).......... 5.9
Wheel Head Auto Rapid Advance (inch).......... 0.98
X-Axis Feed Slide Min Resolution Increment (inch).......... 0-0.0000984
Z-Axis Feed Slide rapid feed rate (in/min).......... 0 – 157
Grinding Wheel OD x W x ID (inch).......... 13.97 x 1.49 x 4
Grinding Wheel Speeds (2 speed variable change rpm).......... 1900/1500
Work Spindle Head Swivel Angle.......... 90 degrees
Work Spindle Head Center Taper.......... 4MT
Work Spindle Head Spindle Speeds Variable (rpm).......... 0 – 300
Work Spindle Head Max. Load of Spindle (including tool holder).......... 33lbs. 3.93” Max Long
Tailstock Center Taper.......... 3MT
Tailstock Quill Stroke (inch).......... 0.984
Table Swivel Angle.......... -4 to +8 degrees
Wheel Spindle Horsepower.......... 5
Workhead Spindle Horsepower.......... ½
Z-Motor Horsepower.......... ½
Wheel Spindle Lubrication Pump Horsepower.......... 1/8
Coolant Pump Horsepower.......... 1/8
Table Lubricator Motor Horsepower.......... 1/8
Wheel Spindle Lube Tank Capacity (liters).......... 7
Hydraulic Fluid Tank Capacity (liters).......... N/A
Coolant Tank Capacity (liters).......... 110
Machine Weight (lbs.).......... 6,050
Shipping Weight (lbs.).......... 6,600
Floor Dimensions W x D x H (inch).......... 59 x 36.5 x 53
Shipping Dimensions W x D x H (inch).......... 79 x 53 x 61

Machine Features:
• Distance between centers 29.5”
• Swing over table is 9.8
• Maximum grinding diameter is 9.8”
• Variable speed 2 Speed motor 1900/1500 rpm
• Wheel flange with nut
• Table mounted wheel dresser
• 2 Carbide tipped centers
• Work driving dog set (3pcs)
• Fagor DRO for inch measurement
• Optional internal grinding attachment
• 1 year limited warranty
