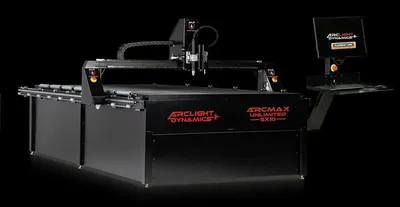

New 2025 Arc Max Unlimited 5x10 CNC Plasma Table
Have one to sell?
ConditionNew
New
The Arc Max Unlimited CNC Plasma Table from Arclight Dynamics is available in 6×12, 5×10, and 4×8. The Arc Max Unlimited CNC Plasma Cutting Tables are pushing the limits of what an air plasma cutter is capable of.
The Flashcut CNC software interface is simple and easy to run allowing anyone to walk up to the machine a cut a part with minimal effort and training. In minutes you can set up the machine to design and cut parts, allowing the operator to complete other projects.
The Unlimited Series of CNC Plasma Tables are designed specifically to be integrated with a Hypertherm MAXPRO200 or an Oxy-Fuel Torch.
An Arclight Dynamics CNC plasma table will be, hands down, the best investment for your shop and cost less than a part time employee. In addition, your new CNC Plasma Table will come with a full team of Arclight support technicians (Arc Angels) to assist you every step of the way.
Each Arc Max Unlimited CNC Plasma Table comes will an industry leading limited lifetime warranty on the table frame, 1 year warranty on its controller and motion control system, and a 1 year warranty on the dedicated computer.
We proudly build our CNC Plasma Tables in the United States. We believe strongly in honest business transparency without hidden fees or recurring charges.
Specifications:
• Cutting envelope..........124" x 62" x 6.5"
• Overall dimensions..........143" x 88" x 60"
• Weight capacity..........6,235 pounds
• Frame..........Reinforced and Fully Welded Steel
• Positioning Accuracy..........(.001")
• Dimensions at base..........70" x 133"
• Water pan capacity..........300 Gallons
• Table Power..........110V / 15-20A
• Overall Weight..........3250 pounds
• Controller..........Flashcut CNC
Features:
• Plate Capacity..........3 inch plate thickness
• MaxPro 200 Compatibility..........Yes
• Oxy-Fuel Compatibility..........Yes
• Slat Depth..........4.5 inches
• Controller..........Flashcut CNC
• Integrated CAD/CAM/CNC..........Yes
• Automatic Nesting Software..........Yes
• Work-Piece Alignment..........Yes
• Rapids..........800 IPM
• Motors..........Nema 34- 940 oz Stepper
• Motor Cabling..........XLR Quick Connectors
• Laser Alignment..........Optional
• Collision Detection..........System Ready
• Hole Cutting..........Smart 360® Hole Cutting Technology
• Serial Communication..........Yes
• Easy CAD/Image Import..........Yes
• CAD Error Fix Tool..........Yes
• CAD Feature Welding Tool..........Yes
• CAD-DXF Export..........Yes
• CAM 3D Cutting Simulation..........Yes
• CNC-THC Performance History Chart..........Yes
• CNC Automated Remanant Cut off..........Yes
• Ohmic & Mechanical Touch-Off..........Both
• CNC Automatic Lead-in on Restart..........Yes
Customize your CNC Plasma Table Today!
1. Select a Plasma Cutter
• Kjellberg K 200 (with quick disconnect torch)
• Hypertherm MAXPRO200
• Hypertherm Powermax 125
• Hypertherm Powermax 105 SYNC
• Hypertherm Powermax 85 SYNC
• Hypertherm Powermax 65 SYNC
• Hypertherm Powermax 45 SYNC
• MP200 Quick Disconnect Torch Head
• MP200 Consumable Kit
• Provide Your Own Plasma Cutter
2. Select Options
• Dual Plasma Torch Upgrade
• Collision Detection and Bevel Cutting System
• Dynamic Water Control
• Tsunami Regenerative Air Dryer System
• Air Filtration
• Touch Screen Monitor
• Laser Plate Alignment System
• Flashcut Mobile Cabinet
• Flashcut Hand Held Control Pendant
• Plasma Rover
• Cabinet Cover
• Green Guard Rust Blocker
3. Select Accessories
• OxyFuel Cutting System
• Pipe and Tube Cutter
• Router Kit
• Plate Engraver
• Logic Board Digitizing System (44" x 60")
4. Select A La Carte Flashcut Software Upgrades
• V10 FC Chain and Bridge Cutting Software
• V10 FC Common Line Cutting Software
• V10 FC Job Costing & Nesting Report Software
• V10 FC Remnant Support Software
• V10 FC Collision Avoidence
• V10 FC Advanced G-code File Management
5. Select Premium Bundled Flashcut Software Upgrades
• Optional bundled upgrades for the Flashcut CNC System.
• V10 FC Flashcut CNC Premium Bundle (No Remnant Support)
• V10 FC Flashcut CNC Premium Bundle With Remnant Support
6. Additional Software Upgrades
• All Unlimited systems include Flashcut CNC Software.
• Design2Fab (HVAC Ductwork, Lifetime license)
• Design2Fab (HVAC Ductwork, annual license)
• VCarve Pro Router Table Software (Lifetime License)
• ProNest LT Unlimited (Annual License)
• ProNest LT Unlimited (Lifetime License)
Advanced Flashcut CNC Software:
• Integrated CAD/CAM/CNC Software FlashCut CAD’s intuitive user interface makes it simple to draw and edit any 2D and 2.5D shape
• Simple import of any 2D drawing Convert any bitmap image or photo into a toolpath (outline or centerline)
• Advanced true shape nesting includes nesting of multiple CAD or DXF files and multi-sheet nesting
• Shape library allows you to instantly draw and customize common shapes DXF export for sharing drawings with other CAD programs
• Fix tool finds and corrects CAD mistakes instantly
• Easily bridge internal cut outs such as the center of an “O”
Welded Steel Frame:
The Arc Max Unlimited frame is designed specifically to hold up to 3 inch Mild Steel Plate across its entire cutting envelope.
• 3″ by 3″ steel tubing
• 3/16″ thickness wall steel tubing
• Fully welded unitized frame
• Gusseted Legs
• Powder coated frame
• Provides a rock solid base for fast accurate cutting
• Slat surface flush with side of table with built in rollers to assist in loading plate
Engineered low mass, high strength aluminum gantry:
• Fast acceleration and deceleration
• Combination of High Mass Frame and Low Mass Gantry leads to excellent acceleration and deceleration qualities without vibration or noise, resulting in accurate and smooth plasma cuts.
• 8.5″ clearance
Hiwin® Precision Linear Rails:
• Hiwin® 20 mm precision linear guide rails
• Provides super smooth motion for unmatched cut quality
• Dual seals and scrapers maintain a clean guideway for longer life and the best protection available
Extra Deep Water Table
• 8 1/2″ deep 12g steel water pan
• Expanded metal barrier to catch small parts
• Reduces thermal distortion
• Longer runtime before annual cleaning
• Captures 90% of smoke and dust reducing airborne contaminants
• Cools parts quickly for immediate inspection
• Reduces heat affected zone
• Twin 1.25″ ball valve drains
