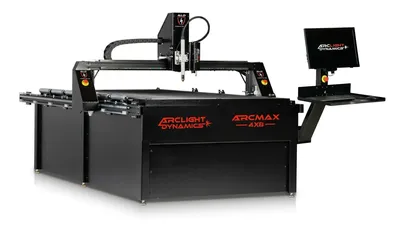

New 2025 Arc Max Ultra 4×8 CNC Plasma Table
Have one to sell?
ConditionNew
New
The Arc Max Ultra CNC Plasma Table from Arclight Dynamics is available in 6×12, 5×10, 4×8 and 5×5. The Arc Max Ultra CNC Plasma Cutting Tables have pushed the limits of what an air plasma cutter is capable of. We have taken the features found on high-end industrial tables and incorporated them into an affordable package. Arclight Dynamics is raising the bar for what you should expect from a CNC plasma table.
In minutes you can set up the machine to design and cut parts, allowing the operator to complete other projects. With its all-new controller system and software, the Arc Max Ultra delivers smoother, more precise cuts with tighter tolerances than ever before.
The Arc Max Ultra is designed to be user-friendly, featuring an incredibly intuitive user interface (UI) that makes operation a breeze. Say goodbye to complex setups and cumbersome software, as this table is engineered from the ground up by industry experts to provide a seamless cutting experience. No need to worry about licensing fees or subscriptions either, as the Arc Pro Ultra offers complete freedom with no additional costs.
An Arclight Dynamics CNC plasma table will be, hands down, the best investment for your shop and cost less than a part time employee. In addition, your new CNC Plasma Table will come with a full team of Arclight support technicians (Arc Angels) to assist you every step of the way.
Smooth cuts, sharp corners, and true holes. The drive system, comprised of precision 20 mm linear guide rails and Hiwin linear slide blocks, provides smooth stable motion without inducing table vibration or flex. Bottom line is Arc Max Ultra blows the doors off of the competition in cut quality and overall table performance.
Each Arc Max Ultra CNC Plasma Table comes will an industry leading limited lifetime warranty on the table frame, 3 year warranty on its controller and motion control system, and a 1 year warranty on the dedicated computer.
We proudly build our CNC Plasma Tables in the United States. We believe strongly in honest business transparency without hidden fees or recurring charges.
Specifications:
• Cutting envelope..........97" x 50" x 6.5"
• Overall dimensions..........120”L x 76”W x 60”H
• Weight capacity..........2" Thick Mild Steel
• Frame..........Fully Welded Steel
• Positioning Accuracy..........(.001")
• Dimensions at base..........58" x 109"
• Water pan capacity..........250 Gallons
• Table Power..........110V / 15-20A
• Overall Weight..........2500 pounds
Features:
Arclight CNC Software:
All new software designed for the Arc Max Ultra series table. Features:
• Modern, Upgraded Interface
• Intuitive Layout and Design
• Feature Packed Software. Packed with options and advanced capabilities.
• Easy Error Recovery
• Fast Forward and Rewind on Cut Path
• Add lead-in to resume cutting quickly
• Tool Adjustment On the Fly – – Dial in Cut Speed, Cut Quality, Cut Height, Torch Volts
• Auto Rip Cut – for fast remnant cutoff.
• Start Point Recovery on Power Down – Pickup where you left off quickly
• Fixture Positioning
• Plate Skew
• Run Laser on Cut Path for Dry Running.
Welded Steel Frame:
• 3″ by 3″ steel tubing
• 3/16″ thickness wall steel tubing
• Powder coated frame
• Fully welded unitized frame
• Provides a rock solid base for fast accurate cutting
• Slat surface flush with side of table with built in rollers to assist in loading plate
Engineered low mass, high strength aluminum gantry:
• Fast acceleration and deceleration
• Combination of High Mass Frame and Low Mass Gantry leads to excellent acceleration and deceleration qualities without vibration or noise, resulting in accurate and smooth plasma cuts.
• 8.5″ clearance
Hiwin® Precision Linear Rails:
• Hiwin® 20 mm precision linear guide rails
• Provides super smooth motion for unmatched cut quality
• Dual seals and scrapers maintain a clean guideway for longer life and the best protection available
Advanced Control Systems:
• With advanced features like corner and hole slow downs, reverse cut directions, contouring, and additional option inputs, you will achieve superior cut quality through simple programming that is easy to understand and use.
• The Arclight Plasma system allows for complete control of the cut: pause, fast forward, rewind and re-cut any part, virtually eliminating steel/materials waste. Our Computer Numerated Control (CNC) system provides a simple ‘click of the button’ control and operation or can operate with complex sophistication using personally generated g-code. CNC features that our competitors just don’t offer.
• Preloaded with Hypertherm cut charts and toolsets
• Ethernet based communications, for more reliable faster performance.
• Industrial Linux software for reliability and ease of use
• Torch Height Control with blazing fast response
• Dynamic Voltage Sampling
Extra Deep Water Table:
• 8 1/2″ deep 12g steel water pan
• Expanded metal barrier to catch small parts
• Reduces thermal distortion
• Longer runtime before annual cleaning
• Captures 90% of smoke and dust reducing airborne contaminants
• Cools parts quickly for immediate inspection
• Reduces heat affected zone
• Twin 1.25″ ball valve drains
Customize your CNC Plasma Table Today!
1. Select a Plasma Cutter
• Hypertherm Powermax 125
• Hypertherm Powermax 105 SYNC
• Hypertherm Powermax 85 SYNC
• Hypertherm Powermax 65 SYNC
• Hypertherm Powermax 45 SYNC
• Provide Your Own Plasma Cutter
2. Select Options
• Arc Sync
• Collision Detection and Bevel Cutting System
• Dynamic Water Control
• Laser Torch Locator
• Tsunami Regenerative Air Dryer System
• Air Filtration
• Touch Screen Monitor
• Cabinet Cover
• Mobile Cabinet
• Plasma Rover
• Green Guard Rust Blocker (qty. 2)
• Arc CNC Hand Pendant Controller
3. Select Accessories
• Pipe Cutter
• Router Kit
• Plate Engraver
• Logic Board Digitizing System (44" x 60")
4. Select an Extended Warranty
• Platinum 1 Year Extended Warranty
• Platinum 2 Year Extended Warranty
• Gold 1 Year Extended Warranty
• Gold 2 Year Extended Warranty
• Silver 1 Year Extended Warranty
• Silver 2 Year Extended Warranty
5. Additional Software Upgrades
• All Elite systems include Flashcut CNC Software.
• Design2Fab (HVAC Ductwork, Lifetime license)
• Design2Fab (HVAC Ductwork, annual license)
• VCarve Pro Router Table Software (Lifetime License)
• ProNest LT Unlimited (Annual License)
• ProNest LT Unlimited (Lifetime License)
