New 2025 Arc Pro V2 Elite 4×8 CNC Plasma Table
Have one to sell?
ConditionNew
New
Introducing the Arc Pro V2 Elite CNC Plasma Cutting Table by Arclight Dynamics – a pinnacle of precision and power, expertly crafted in the USA. Boasting a robust steel frame, this industrial-grade machine guarantees stability and durability. Enhanced by the advanced Flashcut CNC controller software and CAD/CAM/CNC integration, the Arc Pro V2 Elite achieves unmatched precision in cuts.
The Flashcut CNC software interface is simple and easy to run allowing anyone to walk up to the machine a cut a part with minimal effort and training. In minutes you can set up the machine to design and cut parts, allowing the operator to complete other projects.
Designed for user-friendliness, the Arc Pro V2 Elite features an intuitive interface that streamlines operation, eliminating complex setups. This turnkey solution caters to both professionals and novices, ensuring optimal results effortlessly. Backed by a 3-year warranty, Arclight Dynamics demonstrates their commitment to excellence.
Beyond a mere table, the Arc Pro V2 Elite represents a comprehensive cut management system. Customizable accessories allow you to tailor the setup to your needs, maximizing productivity. Elevate your cutting capabilities today with the Arc Pro V2 Elite CNC Plasma Table and experience top-tier precision, reliability, and value in one exceptional package.
Specifications:
• Cutting envelope..........104" x 51.5" x 6"
• Overall dimensions..........163” x 58” x 67”
• Weight capacity..........1.5" Thick Mild Steel
• Frame..........Steel
• Dimensions at base..........72” x 120”
• Water pan capacity..........107 Gallons
• Table Power..........110V / 15-20A
• Overall Weight..........1,015 pounds
• Positioning Accuracy..........(.001")
Features:
Advanced Flashcut CNC Software:
Go from Drawing to Toolpath to Cutting all in one.
• Integrated CAD/CAM/CNC Software FlashCut CAD’s intuitive user interface makes it simple to draw and edit any 2D and 2.5D shape
• Simple import of any 2D drawing Convert any bitmap image or photo into a toolpath (outline or centerline)
• Advanced true shape nesting includes nesting of multiple CAD or DXF files and multi-sheet nesting
• Shape library allows you to instantly draw and customize common shapes DXF export for sharing drawings with other CAD programs
• Fix tool finds and corrects CAD mistakes instantly
• Easily bridge internal cut outs such as the center of an “O”
Precision Steel Frame:
The Arc Pro V2 Elite CNC Plasma Table by Arclight Dynamics features a precision-engineered steel frame that ensures exceptional stability and durability. This robust construction minimizes vibrations, allowing for smoother and more accurate cuts with tighter tolerances. Experience the precision and reliability of the Arc Pro V2 Elite’s steel frame, delivering professional-grade results with every cut.

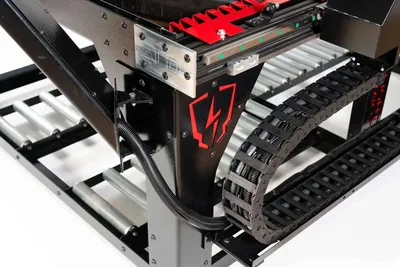

High Speed Dual Drive Gantry:
The Arc Pro V2 Elite gantry is driven on both sides with two powerful motors. This dual drive eliminates gantry flex which allows for fast, clean, accurate cutting. This means:
• High clearance gantry comes standard
• Cleaner cuts (less clean up means more profit)
• More accurate cuts (less waste of material and time)
• Faster cut times (faster positioning between cuts reduces cut time dramatically)
• Uses precision bearings for minimal resistance and low maintenance

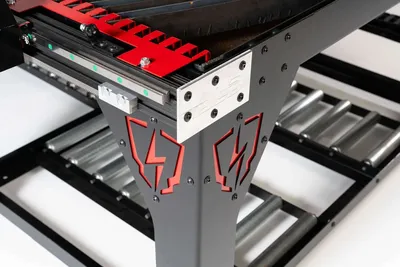

Hiwin® Precision Linear Rails:
• Hiwin® 20 mm precision linear guide rails
• Provides super smooth motion for unmatched cut quality
• Dual seals and scrapers maintain a clean guideway for longer life and the best protection available
Advanced Control Systems:
• With advanced features like corner and hole slow downs, reverse cut directions, contouring, and additional option inputs, you will achieve superior cut quality through simple programming that is easy to understand and use.
• The Arclight Plasma system allows for complete control of the cut: pause, fast forward, rewind and re-cut any part, virtually eliminating steel/materials waste. Our Computer Numerated Control (CNC) system provides a simple ‘click of the button’ control and operation or can operate with complex sophistication using personally generated g-code. CNC features that our competitors just don’t offer.
• Preloaded with Hypertherm cut charts and toolsets
• Ethernet based communications, for more reliable faster performance.
• Industrial Linux software for reliability and ease of use
• Torch Height Control with blazing fast response
• Dynamic Voltage Sampling
Leveling Rollers:
• All-in-one leveling rollers are standard equipment with the Arc Pro V2 Elite CNC Plasma Table. Move your table and level it with ease.
Customize your CNC Plasma Table Today!
1. Select a Plasma Cutter
• Hypertherm Powermax 125
• Hypertherm Powermax 105 SYNC
• Hypertherm Powermax 85 SYNC
• Hypertherm Powermax 65 SYNC
• Hypertherm Powermax 45 SYNC
• Razor Cut 45di Plasma Cutter (includes torch)
• Provide Your Own Plasma Cutter
2. Select Options
• Collision Detection and Bevel Cutting System
• FC Laser Plate Alignment
• Tsunami Regenerative Air Dryer System
• Air Filtration
• Touch Screen Monitor
• Cabinet Cover
• Mobile Cabinet
• Plasma Rover
• Green Guard Rust Blocker
• Plate Rollers
• Double Slats
3. Select Accessories
• Pipe Cutter
• Router Kit
• Plate Engraver
• Logic Board Digitizing System (44" x 60")
4. Select A La Carte Flashcut Software Upgrades
• V10 FC Chain and Bridge Cutting Software
• V10 FC Common Line Cutting Software
• V10 FC Job Costing and Nesting Report Software
• V10 FC Remnant Support Software
• V10 FC Collision Avoidence
• V10 FC Advanced G-code File Management
5. Select Premium Bundled Flashcut Software Upgrades
• Optional bundled upgrades for the Flashcut CNC System.
• V10 FC Flashcut CNC Premium Bundle (No Remnant Support)
• V10 FC Flashcut CNC Premium Bundle With Remnant Support
6. Additional Software Upgrades
• All Elite systems include Flashcut CNC Software.
• Design2Fab (HVAC Ductwork, Lifetime license)
• Design2Fab (HVAC Ductwork, annual license)
• VCarve Pro Router Table Software (Lifetime License)
• ProNest LT Unlimited (Annual License)
• ProNest LT Unlimited (Lifetime License)
