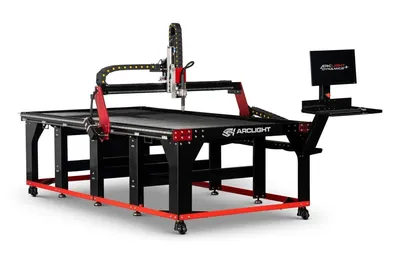

New 2025 Arc Pro Ultra V3 4×8 CNC Plasma Table
Have one to sell?
ConditionNew
New
The Arc Pro Ultra V3 CNC Plasma Cutting Table is engineered for serious fabricators who want the perfect balance of precision, durability, and ease of use. Built on a rugged steel frame with premium NEMA 34 motors, planetary gearboxes, ball screw drive, and advanced motion control, the V3 delivers smooth, accurate cuts every time.
This system comes with more standard features than any other table in its class, giving you more value right out of the box. From robust cable management to advanced torch height control, it’s designed to keep your shop running efficiently. On top of that, the Ultra V3 also offers the widest range of options and accessories—including collision detection, plate engraver, rotary tube cutter, router, and laser add-ons—so you can expand capabilities as your work demands.
Powered by intuitive Arc CNC software, the Ultra V3 makes it easy to go from design to cut, whether you’re just starting out or running high-volume production. Available in multiple sizes to fit your workflow, every table is backed by the industry’s longest warranty, U.S.-based CNC plasma experts, and fast shipping from our Oregon and Illinois hubs.
The Arc Pro Ultra V3 isn’t just a machine—it’s the CNC plasma cutting table designed to grow with your shop.
Specifications:
• Cutting envelope..........104" x 51.5" x 6"
• Overall dimensions..........163” x 58” x 67”
• Weight capacity..........1.5" Thick Mild Steel
• Frame..........Steel
• Dimensions at base..........72” x 120”
• Water pan capacity..........107 Gallons
• Table Power..........110V / 15-20A
• Overall Weight..........1,015 pounds
• Positioning Accuracy..........(.001")
Features:
Arc CNC Software:
All new software designed for the Arc Pro Ultra series tables. Features:
• Modern, Upgraded Interface
• Intuitive Layout and Design
• Feature Packed Software. Packed with options and advanced capabilities.
• Easy Error Recovery
• Fast Forward and Rewind on Cut Path
• Add lead-in to resume cutting quickly
• Tool Adjustment On the Fly – Dial in Cut Speed, Cut Quality, Cut Height, Torch Volts
• Auto Rip Cut – for fast remnant cutoff.
• Start Point Recovery on Power Down – Pickup where you left off quickly
• Set Plate-Skew angle: Adjust alignment without having to move plate.
• Run Laser on Cut Path for Dry Running.
• Fixture Positioning: Set custom start points for jigs, materials and recurring jobs.
Ultra Precision Dual-Drive Gantry:
• The Arc Pro Ultra V3 features a dual-drive gantry system engineered for unmatched speed and accuracy. Built with ultra-light, machined aluminum risers, the gantry reduces weight without sacrificing strength—delivering smoother motion and faster acceleration for high-speed plasma cutting.
• Powered by NEMA 34 motors, planetary gear boxes, and a ball screw Z-axis, the V3 achieves the highest clearance in its class and the most precise torch control available. The result: cleaner edges, tighter tolerances, and the confidence to take on complex jobs with maximum efficiency.
Planetary Gear Boxes:
• The Arc Pro Ultra V3 is equipped with precision planetary gear boxes that deliver maximum torque and accuracy with every cut. Their compact, rugged design ensures smooth motion, reduced backlash, and long-term reliability under heavy shop use. By evenly distributing load across multiple gears, planetary gear boxes provide the strength and precision needed for demanding CNC plasma cutting applications.
NEMA 34 Motors:
• Built with powerful NEMA 34 motors, the V3 delivers the speed, consistency, and responsiveness fabricators depend on. These industrial-grade stepper motors provide precise positioning and reliable motion control, ensuring clean, accurate cuts across the entire table. With their proven durability and high torque output, NEMA 34 motors are the backbone of the Ultra V3’s performance.
Ball Screw Z-Axis:
• The Arc Pro Ultra V3 uses a precision ball screw Z-axis for smooth, reliable vertical motion. This design virtually eliminates backlash while delivering consistent torch positioning and repeatability. Built for durability under heavy use, the ball screw system provides tighter tolerances, longer life, and more accurate pierces and cuts compared to standard lead screw designs.
Hiwin® Precision Linear Rails:
• Hiwin® 20 mm precision linear guide rails
• Provides super smooth motion for unmatched cut quality
• Dual seals and scrapers maintain a clean guideway for longer life and the best protection available
Precision Steel Frame
• The Arc Pro Ultra V3 CNC Plasma Table by Arclight Dynamics features a precision-engineered steel frame that ensures exceptional stability and durability. This robust construction minimizes vibrations, allowing for smoother and more accurate cuts with tighter tolerances. Experience the precision and reliability of the Arc Pro Ultra’s steel frame, delivering professional-grade results with every cut.
Advanced Control Systems:
• With advanced features like corner and hole slow downs, reverse cut directions, contouring, and additional option inputs, you will achieve superior cut quality through simple programming that is easy to understand and use.
• The Arclight Plasma system allows for complete control of the cut: pause, fast forward, rewind and re-cut any part, virtually eliminating steel/materials waste. Our Computer Numerated Control (CNC) system provides a simple ‘click of the button’ control and operation or can operate with complex sophistication using personally generated g-code. CNC features that our competitors just don’t offer.
• Preloaded with Hypertherm cut charts and toolsets
• Ethernet based communications, for more reliable faster performance.
• Industrial Linux software for reliability and ease of use
• Torch Height Control with blazing fast response
• Dynamic Voltage Sampling
Leveling Rollers:
• All-in-one leveling rollers are standard equipment with the Arc Pro V2 Elite CNC Plasma Table. Move your table and level it with ease.
Customize your CNC Plasma Table Today!
1. Select a Plasma Cutter
• Hypertherm Powermax 125
• Hypertherm Powermax 105 SYNC
• Hypertherm Powermax 85 SYNC
• Hypertherm Powermax 65 SYNC
• Hypertherm Powermax 45 SYNC
• Razor Cut 45di Plasma Cutter (includes torch)
• Provide Your Own Plasma Cutter
2. Select Options
• Arc Sync
• Laser Torch Locator
• Collision Detection and Bevel Cutting System
• Cool Flow Recirculation System
• Tsunami Regenerative Air Dryer System
• Air Filtration
• Wireless Hand Pendant Controller
• Touch Screen Monitor
• Cabinet Cover
• Mobile Cabinet
• Plasma Rover
• Green Guard Rust Blocker
• Double Slats
3. Select Accessories
• Auto Tracer
• Plate Engraver
• Pipe Cutter
• Router Kit
• Logic Board Digitizing System (44" x 60")
4. Additional Software Upgrades
• All Elite systems include Flashcut CNC Software.
• Design2Fab (HVAC Ductwork, Lifetime license)
• Design2Fab (HVAC Ductwork, annual license)
• VCarve Pro Router Table Software (Lifetime License)
• ProNest LT Unlimited (Annual License)
• ProNest LT Unlimited (Lifetime License)
5. Select an Extended Warranty
All systems include our standard warranty. These will extend your warranty an additional 1 or 2 years. Platinum includes overnight shipping, Gold includes 2-day shipping and Silver includes priority (3-5 day) shipping on replacement parts.
• Platinum 1 Year Extended Warranty
• Platinum 2 Year Extended Warranty
• Gold 1 Year Extended Warranty
• Gold 2 Year Extended Warranty
• Silver 1 Year Extended Warranty
• Silver 2 Year Extended Warranty
