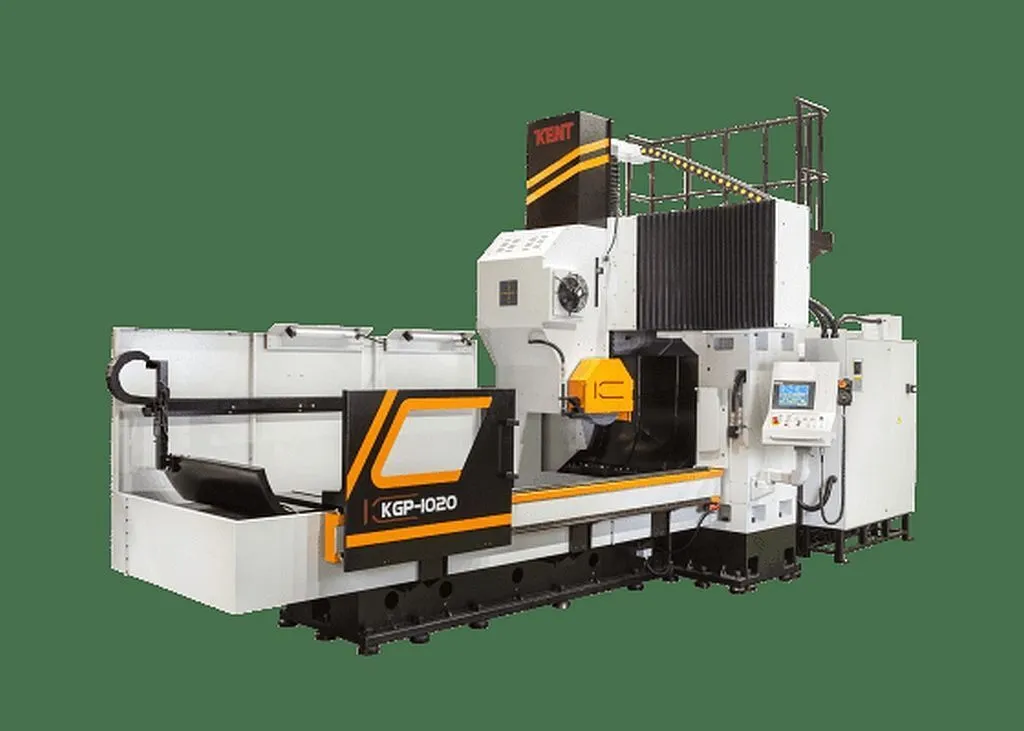

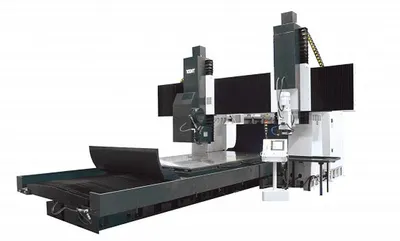

KENT KGP-1020HT Linear Guide Rail Double Column Surface Grinder

Specification .......... 1020HT
Table working area (mm) .......... 1000×2000
Longitudinal travel (mm) .......... 2600
Distance between colums (mm) .......... 1250
Distance from spindle center to table (mm) .......... 950
Wheel dimension (mm) .......... 510×100×203.2
Table load including magnetic chuck (kg) .......... 3000

STANDARD ACCESSORIES
1 GRINDING WHEEL /1 PC 1 PCS
2 WHEEL BALANCING STAND AND ARBOR / 1 SET
3 WHEEL FLANGEE & EXTRACTOR / 1 SET
4 TOOL BOX & TOOLS / 1 SET
5 WHEEL DRESSING DIAMOND TIP & HOLDER / 1 SET
6 WORKING LAMP / 1 SET
7 LEVELING PAD & BOLTS / 1 SET
8 HALF COVER SHEET METAL / 1 SET
9 SPINDLE MOTOR INVERTER / 1 SET
10 OIL CHILLER / 1 SET

OPTIONAL
1 COOLANT SYSTEM WITH MAGNETIC SEPARATOR & PAPER FILTER 1 PCS USD $4,750
2 ELECTRO MAGNETIC CHUCK 1000*2000 MM WITH CONTROLLER 1 PCS USD $14,880
3 EXTRA WHEEL FLANGEE 1 PCS USD $680

Machine Features

• Machine mechanical structure
Machine main structure are cast of high grade FC-30 iron to ensure high rigidity and stability. Column designed in box type structure to achieve high performance and reduce resonance in heavy duty cutting.
Large machine base to deliver smooth movement and deformation-free performance over time.
• Slideways
Cross and vertical axes driven by high precision C3 grade ball screws and servo motor, supported by backlash-free coupling, to ensure accurate movement. Slideways are linear way to guarantee high rigidity, stability and long lasting performance. Double V work table slideways are Turcite B coated with hand crapped to provide smooth and accurate movement and consistency.
• Spindle and spindle motor
The Flange type spindle is designed with a strong shaft, supported by 3 sets super precision angular contact bearings with wide span, to maximum rigidity and machining accuracy. High torque spindle motor (20HP) adapts high technology to attain low vibration, greater rigidity, high bending resistance. It suits to demands for heavy cutting.
• Control system
Graphical user interface with Mitsubishi color touchscreen deliver easy conversation operation system. Easily pre-set grinding parameters for a automatic cycle, improving working effiency. Mitsubishi PLC provides a long, trouble – free operating life. Easy maintenance supported by an extensive service center network located all over the world.
• Hydraulic system
Advanced hydraulic system with proportional valve and 20HP motor ensures table speed up to 30 m/min. Hydraulic tank is standarly equipped with a oil chiller ito prevent heat dissipation and maintain normal temperature of hydraulic oil. All parts inside the system are corrision – proof, ensure easy maintenance and long lasting service.
• Automatic lubrication system
Centralized automatic lubrication system with tank capacity of 100 litters can provide proper, precise lubricant replenishment to all required points at the right time.
• Automatic wheel dressing and compensation.
The dresser is for horizontal grinding wheel, driven by DC motor and fed by servo motor. Easily pre-set the dressing parameters for an automatic cycle.
• Vertical grinding attachment (optional)
Vertical grinding head: flexible, accurate and reliable grinding solution for cutting – edge. Easily adjust angle for various applications such as flank grinding , dovetail groove, side cutting and chamfering
