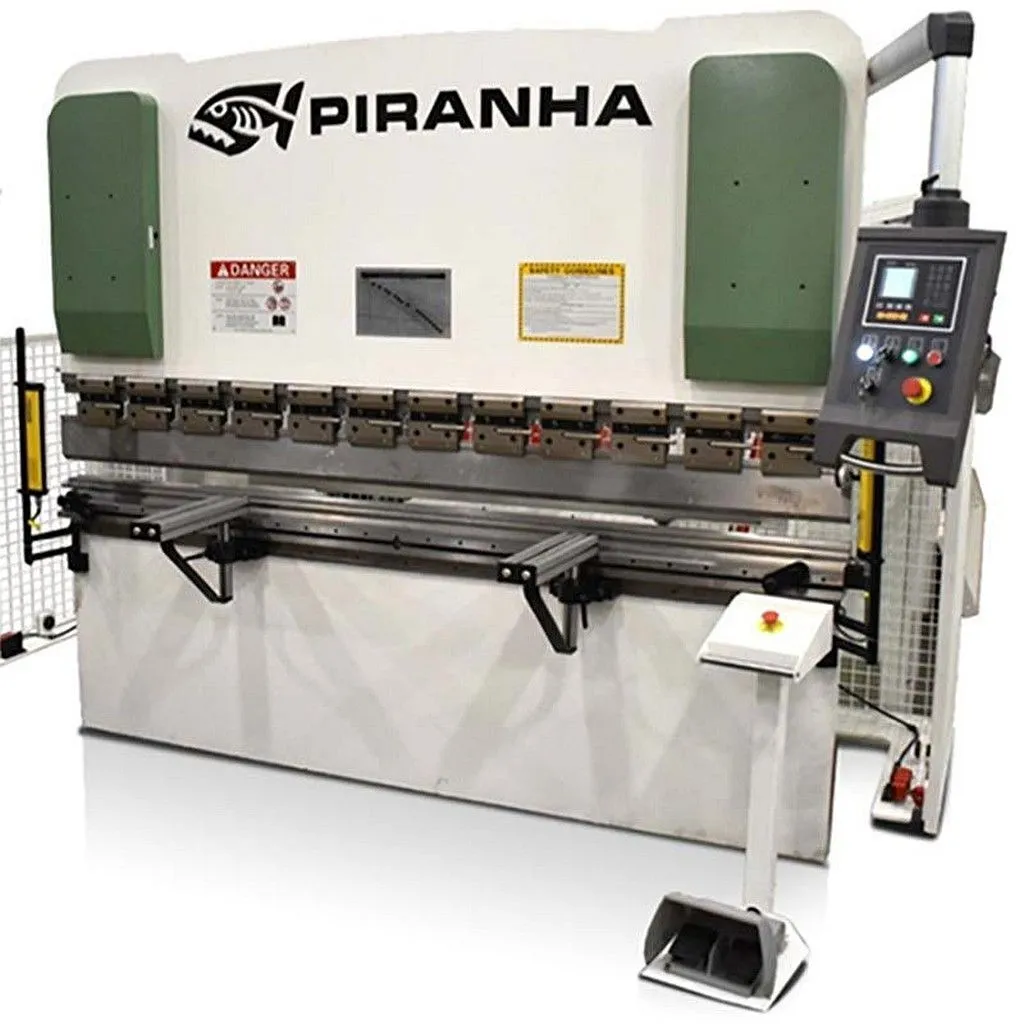

New 2025 Piranha 45 Ton x 8ft. Press Brake "In Stock Now"
Have one to sell?
ConditionNew
1 available
New
Introducing the new 2025 Piranha 45-08T Press Brake: a 45-ton powerhouse with a max width of 8 feet. Perfect for precision bending tasks. Contact us for more details or inquiries about Piranha and Arclight products.
Please reach out to us today for any Piranha or Arclight inquiries.
The Piranha T-Series Hydraulic Press Brakes deliver reliable bending performance with precision torque-tube synchronization and simple, user-friendly controls. Available in a full range of sizes and tonnages — from compact 33-ton units to heavy-duty 280-ton models — the T-Series offers proven accuracy, rugged construction, and easy operation for shops that demand dependable results without the complexity of a multi-axis CNC system.
Rugged, Accurate, and Built to Last
The Piranha T-Series Hydraulic Press Brakes combine simplicity, strength, and precision in one dependable package. Using a torque-tube synchronization system, both sides of the ram move in perfect parallel alignment — producing repeatable bends within ±0.001 inch.
For shops that need dependable forming performance without the complexity or cost of a multi-axis CNC brake, the T-Series is the proven choice.
Whether you’re fabricating sheet-metal components or bending heavy plate, every T-Series model is engineered with a heavy welded frame, precision hydraulics, and user-friendly controls that keep your operators productive day after day.
Why Choose the T-Series
Torque-Tube Synchronization – mechanically links both sides of the ram for exact parallelism and repeatable accuracy.
Reliable Hydraulics – built with high-quality Rexroth and SYI hydraulic components for smooth motion and long life.
Easy Operation – Estun E310P touch-screen control allows programming by angle or absolute position with up to 25 steps per job.
Safety First – integrated Sick or laser light-curtain system, side guards, and rear safety gate protect the operator.
European Tooling Compatibility – precision-ground die rail and reversible upper clamps accept European-style punches and dies.
Low Maintenance Ownership – simple mechanical design means less downtime, lower operating cost, and reliable performance for years.
U.S. Support & Service – backed by Piranha’s nationwide parts and service network.
Standard Features (Across All Models)
Synchronized precision hydraulic brake with torque-tube linkage
Ram repeatability ± 0.001 in
Y and X-axis control via Estun E310P CNC controller
X-axis servo-driven back gauge with manual R-axis adjustment
Light-curtain safety system
European precision-style manual tool clamps
Front sheet supports and movable support arms
Heavy-duty welded steel frame, stress-relieved for accuracy
Standard foot pedal with emergency stop
Starter tooling set (gooseneck punch + 7-way bottom die)
Wide Range of Options Available
• Available from 35–280-ton models
• Standard X-Axis back gauge
• Simple CNC control
Standard Features
• Light Curtain Safety System
• Standard Piranha X-Axis & Manual R Back Gauge System
• Simple CNC control
Introducing the new 2025 Piranha 45-08T Press Brake: a 45-ton powerhouse with a max width of 8 feet. Perfect for precision bending tasks. Contact us for more details or inquiries about Piranha and Arclight products.
T.R. Wigglesworth Machinery Company is proud to offer Piranha products.
Backed by Piranha’s reputation for durability and repeatability, our press brake machines offer important advantages over other models.
Day in and day out, Piranha press brakes deliver the dependability and reliability your operation demands. Easy-to-use controls offer an unparalleled user-friendly approach. Our press brakes can handle a wide range of materials, including soft brass, heat-treated aluminum alloys, stainless steel, soft aluminum and chrome molybdenum.
Piranha’s T Series press brake features a robust torque tube design with a link system that connects both sides of the ram and rotates to keep the ram parallel during the bending process, delivering ram repeatability and parallelism of +/- 0.001”.
Standard features include a light curtain system and the Piranha X and Manual R Back Gauge system.
This machine is well-suited for applications not requiring sophisticated control or back gauge options and makes for a solid press brake offering.
P Series is available with up to 3,000 tons bending capacity, and our T Series press brake is available in tonnages ranging from 25 to 280 tons. Other tonnages and widths are available upon request – contact us for details.
The Perfect Machine is Our Promise
As part of our Perfect Machine Process, every Piranha-Whitney hydraulic press brake is rigorously inspected in our Rockford, Illinois, facility so that it’s ready for seamless installation in your shop.

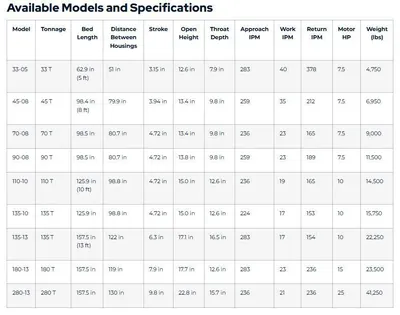

Imperial
| Tonnage | 45 T |
| Max Width | 8' |
| Control | CNC |
| Dimensions | Available upon request |
| Weight | 6950 LBS |
Please reach out to us today for any Piranha or Arclight inquiries.
The Piranha T-Series Hydraulic Press Brakes deliver reliable bending performance with precision torque-tube synchronization and simple, user-friendly controls. Available in a full range of sizes and tonnages — from compact 33-ton units to heavy-duty 280-ton models — the T-Series offers proven accuracy, rugged construction, and easy operation for shops that demand dependable results without the complexity of a multi-axis CNC system.
Rugged, Accurate, and Built to Last
The Piranha T-Series Hydraulic Press Brakes combine simplicity, strength, and precision in one dependable package. Using a torque-tube synchronization system, both sides of the ram move in perfect parallel alignment — producing repeatable bends within ±0.001 inch.
For shops that need dependable forming performance without the complexity or cost of a multi-axis CNC brake, the T-Series is the proven choice.
Whether you’re fabricating sheet-metal components or bending heavy plate, every T-Series model is engineered with a heavy welded frame, precision hydraulics, and user-friendly controls that keep your operators productive day after day.
Why Choose the T-Series
Torque-Tube Synchronization – mechanically links both sides of the ram for exact parallelism and repeatable accuracy.
Reliable Hydraulics – built with high-quality Rexroth and SYI hydraulic components for smooth motion and long life.
Easy Operation – Estun E310P touch-screen control allows programming by angle or absolute position with up to 25 steps per job.
Safety First – integrated Sick or laser light-curtain system, side guards, and rear safety gate protect the operator.
European Tooling Compatibility – precision-ground die rail and reversible upper clamps accept European-style punches and dies.
Low Maintenance Ownership – simple mechanical design means less downtime, lower operating cost, and reliable performance for years.
U.S. Support & Service – backed by Piranha’s nationwide parts and service network.
Standard Features (Across All Models)
Synchronized precision hydraulic brake with torque-tube linkage
Ram repeatability ± 0.001 in
Y and X-axis control via Estun E310P CNC controller
X-axis servo-driven back gauge with manual R-axis adjustment
Light-curtain safety system
European precision-style manual tool clamps
Front sheet supports and movable support arms
Heavy-duty welded steel frame, stress-relieved for accuracy
Standard foot pedal with emergency stop
Starter tooling set (gooseneck punch + 7-way bottom die)
Wide Range of Options Available
• Available from 35–280-ton models
• Standard X-Axis back gauge
• Simple CNC control
Standard Features
• Light Curtain Safety System
• Standard Piranha X-Axis & Manual R Back Gauge System
• Simple CNC control
