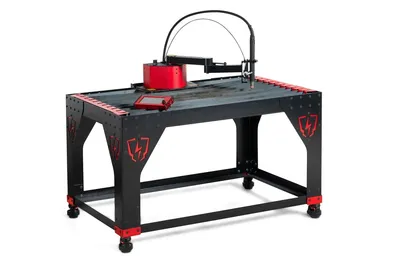

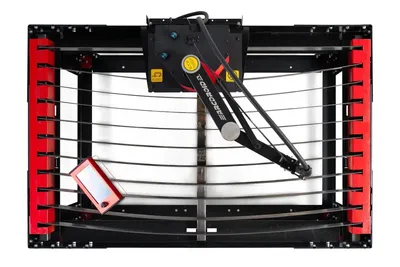

New 2025 ArcDroid CNC Plasma Robot

Specifications:
• Cutting envelope..........660 x 380mm ( 26 x 15 inches)
• Z travel..........2.5 inches (65mm)
• Max cut speed..........5,000mm/min (200”/min)
• Max travel speed..........8,000 mm/m (315”/min)
• CE Certified
• 2006/42/EC Annex I
• EN 60204-1: 2018
• EN ISO 12100:2010!

Features:
• Simple Trace™ Operating System; NO EXTERNAL SOFTWARE OR CAD SKILLS REQUIRED!
• Fusion 360 and SheetCAM and QCAD/CAM compatible
• Powerful touch screen interface. No external PC required!
• Get more out of your plasma cutter
• Everything you need to get started
• ArcDroid™ is not currently compatible with High Frequency Start Plasma Cutters
• Easy to read glove friendly touch screen Interface
• Works with most hand held plasma cutters
• Compatible with CAM programs such as Fusion 360, SheetCAM and Pronest
• USB import of DXF and G-Code Files †
• Lightweight and portable less than 17 Kg (38 Lbs)
• Compact form factor 50 x 36 x 25 cm (20 x 14 x 10 inches)
• Can be repositioned easily to increase total cut envelope
• Programmable pierce and cut heights
• Adjustable kerf compensation
• Full mechanical Z probing on every cut start
• Torch height compensation feature for uneven material
• Programmable pierce and finish delays

All ArcDroids that ship from Arclight Dynamics will be upgraded to include a Cable management bracket and a CPC Adaptor for either the Hypertherm or RazorCut Plasma Cutters.
• The Cable Management Bracket was specifically engineered for the ArcDroid to optimize the motion control increasing the plasma cutting efficiency.
• The CPC adaptor prevents the operator from having to splice in dangerous connections to a hand unit and override manufacturers safety mechanisms.

Select a Plasma Cutter:
• Select the plasma cutter that best fits your needs. Comes with a 180 Machine Torch.
• Hypertherm Powermax 45 SYNC (includes torch)
• Razor Cut 45di Plasma Cutter (includes torch)

Add a Razorcut Hand Held Torch
• Add versatility and get an addition handheld torch for your Razorcut. Save when you buy them together.
• Handheld Torch (RazorCut Only)

Cut Anything with Simple Trace™:

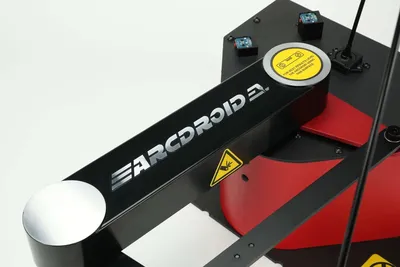

• Simple Trace™ is an easy to use and intuitive interface. Point to point or free hand, trace your template and ArcDroid™ creates a cut file instantly. Simply use the ArcDroid™ arm to follow the contours of your template and high accuracy encoders map your every move. Now all your cardboard cut outs are functional cut files!

• Use popular CAM programs like Fusion 360, SheetCAM and Pronest to create your G-code and load by USB.

Incredible Cutting Power in a Compact Frame:
• Whether you draw it, download it or just imagine it; you can cut it with ArcDroid™. Any table is a plasma table with ArcDroid™. Precision encoders and high resolution drives mean ArcDroid™ accurately reproduces your design. Get fast, accurate and repeatable par ts from your plasma cutter.

Self Contained and Easy to Use:
• All-in-one glove friendly touch screen interface which means no external PC required
