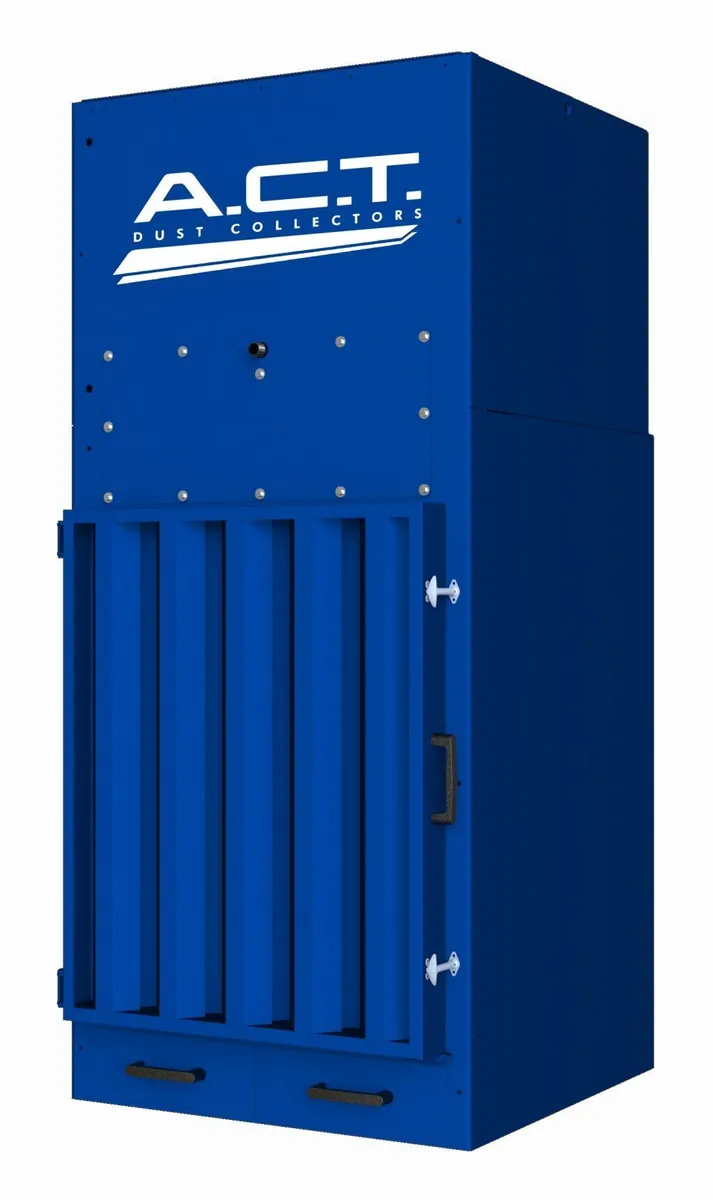

The ACTion Booth is a compact dust collector with a small footprint for applications including sanding, blasting and deburring, powder coating and many more. Typically, the ACTion Booth would be found collecting dust and debris for a smaller area in a facility.
ACTion Booth Power Module features an integral blower motor that is surrounded with noise attenuation material for quiet operation. Clean air is returned out the top of the industrial dust collector and recirculated back to your factory floor.
Perfect for Grinding, Deburring, Blasting, Sawing, Sanding, Finishing, Powder Coating, Recycling, Scrap
This machine has:
• 96" Height x 43" Width x 47" Depth
• 4 Filters
• Filter Area of 1400Sq. Foot of Media
• Takes a DCF24201-C 80/20 Elite Booth Filter
Filter Specs (per filter):

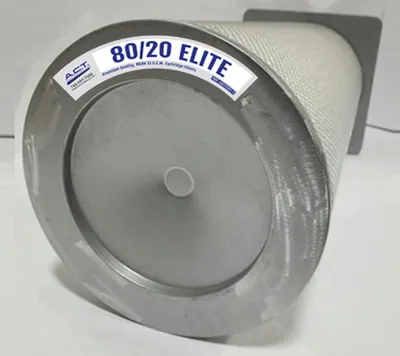

DCF24201-C 80/20 Elite BOOTH FILTER:
• 13.8" x 36"
• 80/20 FR
• MERV 11
• 350 Sq. Foot of Media
• 350 Pleats
• Loading Dust: ASHRAE
• Shape: Round
• 200°F Temperature Limit
• Open/Closed
• Gasket Top
• Made in the USA
• Heavy Gauge Steel Structural Elements
*When ordering filters it comes 8 per pallet*
Standard Features:
Collector Design:
• Mild Steel Construction
• Venturi-Assisted Pulse Filter Cleaning System
• A.C.T. Nano-Elite Nanofiber Cartridges
• Dust Drawer/Tray Bottom Material Outlet
• Control Box w/ Solid State Timer Board in NEMA 12 Enclosure and Pressure Gauge
• Quick Lock, Easy-Access Filter Door
• Unique ACTion Inlet With Spark Arresting Technology
Paint System:
• Primed and Painted Interior
• Multi-Coat Paint Finish
• Custom Color..........Optional
Warranty:
• 10-Year Warranty
