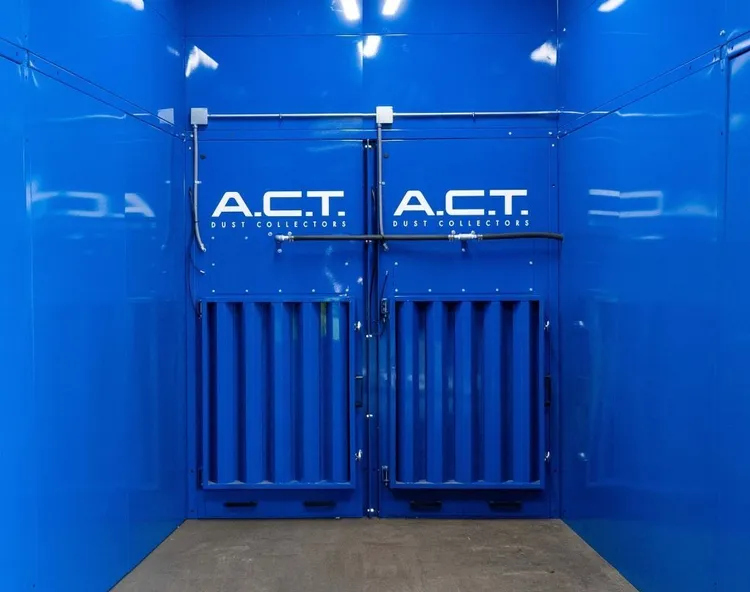

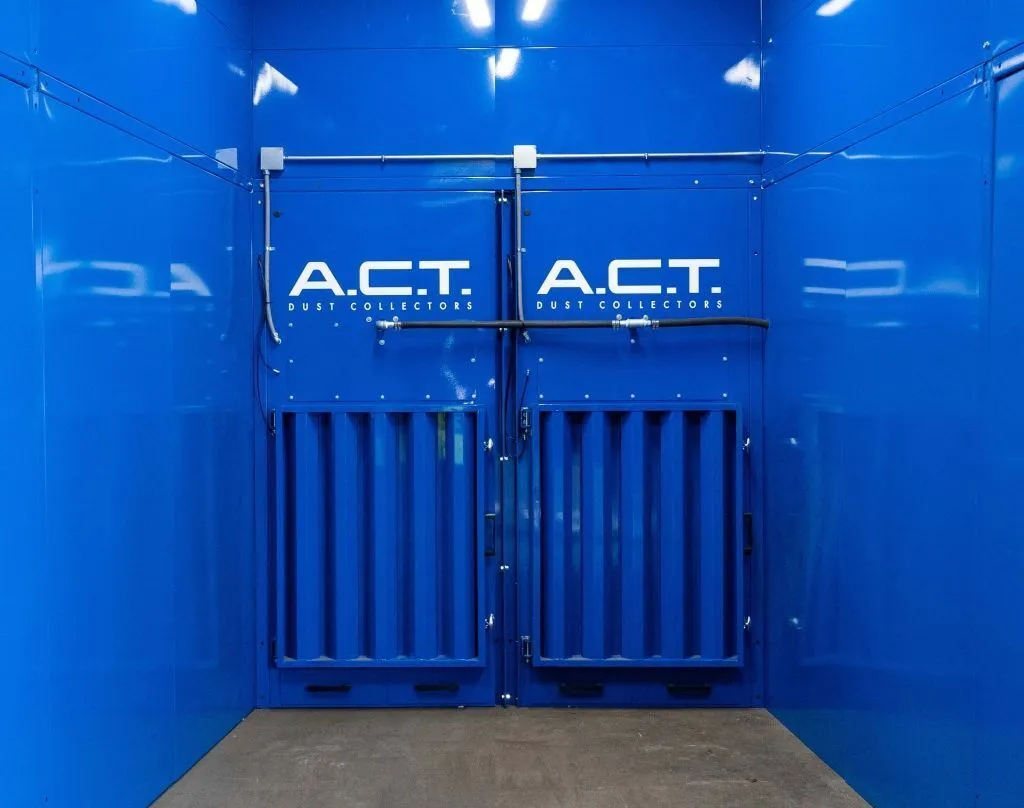

The ACTion Booth is a compact dust collector with a small footprint for applications including sanding, blasting and deburring, powder coating and many more. Typically, the ACTion Booth would be found collecting dust and debris for your facility.
The ACTion Booth Power Module features an integral blower motor that is surrounded with noise attenuation material for quiet operation. Clean air is returned out the top of the industrial dust collector and recirculated back to your factory floor.
Comes in 14', 16', 18', or 20' widths per your requirement. Perfect for Grinding, Deburring, Blasting, Sawing, Sanding, Finishing, Powder Coating, Recycling, Scrap.
This model has:
• 96" Height x 168"/192"/216" or 240" Width x 96" Depth
• 8 Filters
• Filter Area of 2,800 Sq. Foot of Media
• Takes a DCF24201-C 80/20 Elite Booth Filter
Filter Specs (per filter):

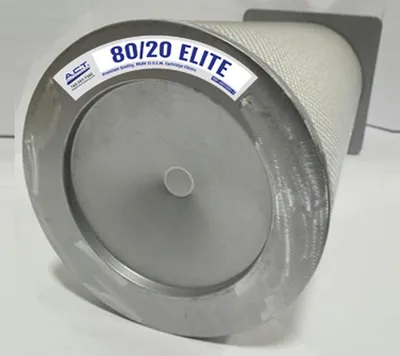

DCF24201-C 80/20 Elite BOOTH FILTER:
• 13.8" x 36"
• 80/20 FR
• MERV 11
• 350 Sq. Foot of Media
• 350 Pleats
• Loading Dust: ASHRAE
• Shape: Round
• 200°F Temperature Limit
• Open/Closed
• Gasket Top
• Made in the USA
• Heavy Gauge Steel Structural Elements
*When ordering filters it comes 8 per pallet*
Standard Features:
Collector Design:
• Mild Steel Construction
• Venturi-Assisted Pulse Filter Cleaning System
• A.C.T. Nano-Elite Nanofiber Cartridges
• Dust Drawer/Tray Bottom Material Outlet
• Control Box w/ Solid State Timer Board in NEMA 12 Enclosure and Pressure Gauge
• Quick Lock, Easy-Access Filter Door
• Unique ACTion Inlet With Spark Arresting Technology
Paint System:
• Primed and Painted Interior
• Multi-Coat Paint Finish
• Custom Color..........Optional
Warranty:
• 10-Year Warranty
The ACTion Booth is a compact dust collector with a small footprint for applications including sanding, blasting and deburring, powder coating and many more. Typically, the ACTion Booth would be found collecting dust and debris for your facility.
The ACTion Booth Power Module features an integral blower motor that is surrounded with noise attenuation material for quiet operation. Clean air is returned out the top of the industrial dust collector and recirculated back to your factory floor.
Comes in 14', 16', 18', or 20' widths per your requirement. Perfect for Grinding, Deburring, Blasting, Sawing, Sanding, Finishing, Powder Coating, Recycling, Scrap.
T.R. Wigglesworth Machinery Co. is now in partnership with A.C.T. Dust Collectors.
Clean Air, Precision Performance: The Ultimate Machining Solution
For nearly a century, T.R. Wigglesworth Machinery Co. has supplied the finest machine tools to American manufacturers. Now, in partnership with A.C.T. Dust Collectors, we offer a total solution for your shop floor. Combine our high-precision machinery with A.C.T.'s industrial air filtration systems to achieve superior results, a safer workplace, and improved efficiency.
The power of our partnership
Advanced air quality
A.C.T. Dust Collectors' high-performance filtration systems capture dust, fumes, and debris right at the source, ensuring a clean and safe environment for your employees.
Reduced maintenance costs
Protect your valuable machinery from corrosive dust, particles and fumes, significantly reducing maintenance and extending equipment life.
Optimized performance
A clean work area leads to increased employee efficiency and higher-quality results from your machinery. A.C.T.'s specialized collectors are designed to handle demanding applications, so your machinery can operate at peak performance.
Key products
Cartridge dust collectors
Efficient and powerful, these are ideal for capturing fine dust from applications such as grinding, cutting tables, and thermal spray. ADC units are mounted to the ceiling to maximize floor space.
LaserPack and Weldpack dust collectors
Dust particles, fumes and various oxides generated during the laser cutting process are dangerous to breathe. A.C.T.'s specialized LaserPack systems are designed specifically for laser cutting applications, providing maximum suction and filtration for a safer, more productive environment.
Baghouse dust collectors
A reliable and robust solution for heavy-duty applications that produce large volumes of dust and bulk powders. A.C.T. Dust Collectors’ TLM series baghouse dust collectors are most effective when the particulate is larger, and the loading is extreme.
Real-world results
A leading North American metal fabrication shop needed a large-volume filtration solution for a metalizing booth. By partnering with A.C.T. Dust Collectors, they were able to implement a robust cartridge dust collection system, ensuring a clean environment for their bridge building and transportation projects.
Ready for a total shop solution?
The T.R. Wigglesworth and A.C.T. Dust Collector partnership gives you access to a comprehensive, high-value package—combining superior machine tools with industrial-grade air quality.
Request a consultation today to design a total solution for your facility.
Imperial
| Flow Rate | 10,800 ft³/min. |
| Power | 15 hp |
| Dimensions | 96"H x 168"W x 96"L |
This model has:
• 96" Height x 168"/192"/216" or 240" Width x 96" Depth
• 8 Filters
• Filter Area of 2,800 Sq. Foot of Media
• Takes a DCF24201-C 80/20 Elite Booth Filter
Filter Specs (per filter):
DCF24201-C 80/20 Elite BOOTH FILTER:
• 13.8" x 36"
• 80/20 FR
• MERV 11
• 350 Sq. Foot of Media
• 350 Pleats
• Loading Dust: ASHRAE
• Shape: Round
• 200°F Temperature Limit
• Open/Closed
• Gasket Top
• Made in the USA
• Heavy Gauge Steel Structural Elements
*When ordering filters it comes 8 per pallet*
Standard Features:
Collector Design:
• Mild Steel Construction
• Venturi-Assisted Pulse Filter Cleaning System
• A.C.T. Nano-Elite Nanofiber Cartridges
• Dust Drawer/Tray Bottom Material Outlet
• Control Box w/ Solid State Timer Board in NEMA 12 Enclosure and Pressure Gauge
• Quick Lock, Easy-Access Filter Door
• Unique ACTion Inlet With Spark Arresting Technology
Paint System:
• Primed and Painted Interior
• Multi-Coat Paint Finish
• Custom Color..........Optional
Warranty:
• 10-Year Warranty
