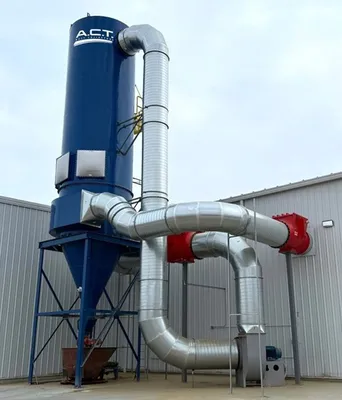

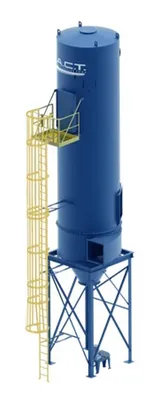

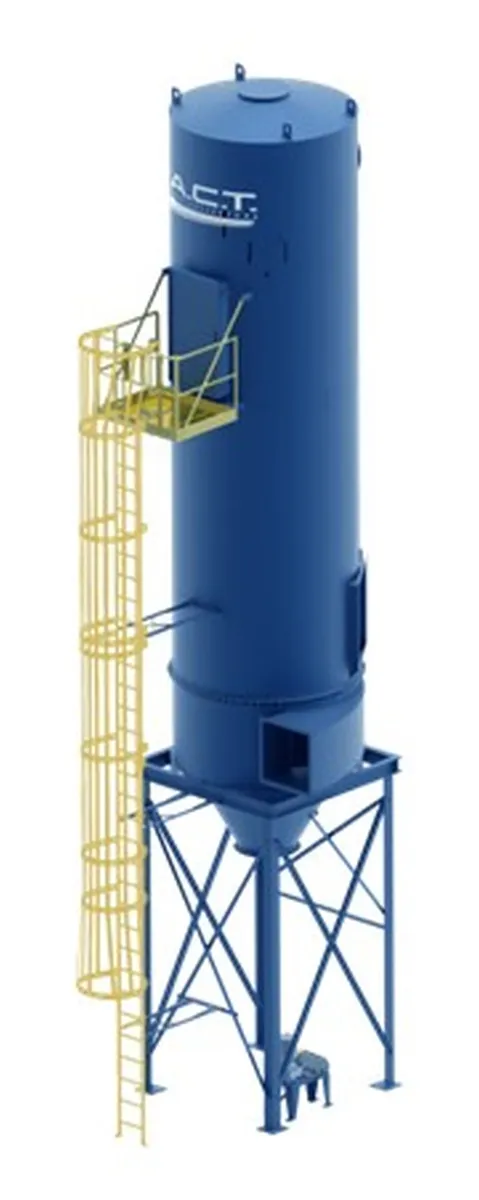

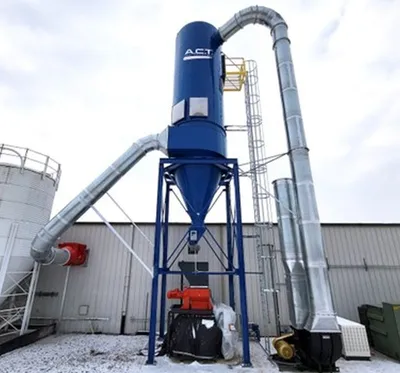

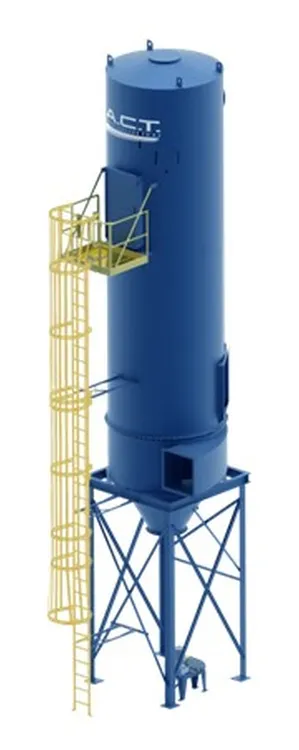

The ACT ARB 260-10-10 Round Baghouse is designed to meet the unique requirements of many applications including feed & grain, food processing, woodworking and recycling.
ARB series units do not require compressed air as the ARB comes standard with medium pressure cleaning system. The built-in cyclone promotes material drop out and extends filter life. Overall design is compact to minimize footprint.
The ARB Baghouse utilizes a round cyclonic design that enhances the initial separation of dust particles from the airstream.
Specifications:
• Nominal Airflow Range (CFM)..........25,000
• Filter Media (ft2)..........3,148
• # of Bags..........260
• Bag Length (ft)..........10'
• Bag Diameter (in)..........5"
• Weight (lbs)..........19,305 lbs
• Height..........39' 3"
• Footprint..........110" x 110"
Filter Specifications:
DCB1300 OEM Bag Filter:
• Snap Band Top
• 16 oz Singed Polyester
• 5" Diameter
• 10 ft long
• Disk Bottom
• 275°F Temperature Limit
• Shape: Round
DC79260 Baghouse Cage:
• 12 ft long
• 10 Vertical Wires
• 11 Gage Galvanized
• Cup Bottom
• Shape: Round
Standard Features:
• ARB SERIES Baghouse
• Medium Pressure Continuous Filter Cleaning
• Tool-Free Bag Replacement
• Clean Side, Top Access Snap Band Filter Bags with Grounding Wires
• Top Load Filter Change Out
• Hinged Filter Access Doors
• Explosion Venting
• OSHA Compliant Service Platform and Cage Access Ladder with Fall Protection System
• Vortex Breakers
• Medium Pressure Blower Package
• Replaceable Bolt-On Involute Inlet
• Premium Prime & Paint Exterior, High Gloss Enamel
• Rotary Airlocks and Transition..........Optional
• Filter Discharge Transition to Rotary Airlock..........Optional
• Screw Conveyors, Drag Conveyors or Pneumatic Conveyors..........Optional
• Extended/Modified Steel Support Structure..........Optional
• Custom Filter Media Options..........Optional
• Motor/Blower for Specific Performance..........Optional
• Exhaust Silencer..........Optional
• Steeper cone options..........Optional
• Ductwork and Inlet/Outlet Manifolds..........Optional
• After filter Plenums for HEPA or ASHRAE..........Optional
• NFPA 69 Compliant Backdraft Dampers / Explosion Isolation Valves..........Optional
• Motor Control Panels (Soft Start, VFD’s, etc.)..........Optional
• Spark Detection System..........Optional
• High Speed Abort Gates..........Optional
• High Temperature Operation Components..........Optional
• Custom Color Exterior, Paint Finishes & Coatings..........Optional
The ACT ARB 260-10-10 Round Baghouse is designed to meet the unique requirements of many applications including feed & grain, food processing, woodworking and recycling.
ARB series units do not require compressed air as the ARB comes standard with medium pressure cleaning system. The built-in cyclone promotes material drop out and extends filter life. Overall design is compact to minimize footprint.
The ARB Baghouse utilizes a round cyclonic design that enhances the initial separation of dust particles from the airstream.
T.R. Wigglesworth Machinery Co. is now in partnership with A.C.T. Dust Collectors.
Clean Air, Precision Performance: The Ultimate Machining Solution
For nearly a century, T.R. Wigglesworth Machinery Co. has supplied the finest machine tools to American manufacturers. Now, in partnership with A.C.T. Dust Collectors, we offer a total solution for your shop floor. Combine our high-precision machinery with A.C.T.'s industrial air filtration systems to achieve superior results, a safer workplace, and improved efficiency.
The power of our partnership
Advanced air quality
A.C.T. Dust Collectors' high-performance filtration systems capture dust, fumes, and debris right at the source, ensuring a clean and safe environment for your employees.
Reduced maintenance costs
Protect your valuable machinery from corrosive dust, particles and fumes, significantly reducing maintenance and extending equipment life.
Optimized performance
A clean work area leads to increased employee efficiency and higher-quality results from your machinery. A.C.T.'s specialized collectors are designed to handle demanding applications, so your machinery can operate at peak performance.
Key products
Cartridge dust collectors
Efficient and powerful, these are ideal for capturing fine dust from applications such as grinding, cutting tables, and thermal spray. ADC units are mounted to the ceiling to maximize floor space.
LaserPack and Weldpack dust collectors
Dust particles, fumes and various oxides generated during the laser cutting process are dangerous to breathe. A.C.T.'s specialized LaserPack systems are designed specifically for laser cutting applications, providing maximum suction and filtration for a safer, more productive environment.
Baghouse dust collectors
A reliable and robust solution for heavy-duty applications that produce large volumes of dust and bulk powders. A.C.T. Dust Collectors’ TLM series baghouse dust collectors are most effective when the particulate is larger, and the loading is extreme.
Real-world results
A leading North American metal fabrication shop needed a large-volume filtration solution for a metalizing booth. By partnering with A.C.T. Dust Collectors, they were able to implement a robust cartridge dust collection system, ensuring a clean environment for their bridge building and transportation projects.
Ready for a total shop solution?
The T.R. Wigglesworth and A.C.T. Dust Collector partnership gives you access to a comprehensive, high-value package—combining superior machine tools with industrial-grade air quality.
Request a consultation today to design a total solution for your facility.
Imperial
| Flow Rate | 25,000 ft³/min. |
| Dimensions | 110" x 110" x 39' 3" |
| Weight | 19,305Lbs. |
Specifications:
• Nominal Airflow Range (CFM)..........25,000
• Filter Media (ft2)..........3,148
• # of Bags..........260
• Bag Length (ft)..........10'
• Bag Diameter (in)..........5"
• Weight (lbs)..........19,305 lbs
• Height..........39' 3"
• Footprint..........110" x 110"
Filter Specifications:
DCB1300 OEM Bag Filter:
• Snap Band Top
• 16 oz Singed Polyester
• 5" Diameter
• 10 ft long
• Disk Bottom
• 275°F Temperature Limit
• Shape: Round
DC79260 Baghouse Cage:
• 12 ft long
• 10 Vertical Wires
• 11 Gage Galvanized
• Cup Bottom
• Shape: Round
Standard Features:
• ARB SERIES Baghouse
• Medium Pressure Continuous Filter Cleaning
• Tool-Free Bag Replacement
• Clean Side, Top Access Snap Band Filter Bags with Grounding Wires
• Top Load Filter Change Out
• Hinged Filter Access Doors
• Explosion Venting
• OSHA Compliant Service Platform and Cage Access Ladder with Fall Protection System
• Vortex Breakers
• Medium Pressure Blower Package
• Replaceable Bolt-On Involute Inlet
• Premium Prime & Paint Exterior, High Gloss Enamel
• Rotary Airlocks and Transition..........Optional
• Filter Discharge Transition to Rotary Airlock..........Optional
• Screw Conveyors, Drag Conveyors or Pneumatic Conveyors..........Optional
• Extended/Modified Steel Support Structure..........Optional
• Custom Filter Media Options..........Optional
• Motor/Blower for Specific Performance..........Optional
• Exhaust Silencer..........Optional
• Steeper cone options..........Optional
• Ductwork and Inlet/Outlet Manifolds..........Optional
• After filter Plenums for HEPA or ASHRAE..........Optional
• NFPA 69 Compliant Backdraft Dampers / Explosion Isolation Valves..........Optional
• Motor Control Panels (Soft Start, VFD’s, etc.)..........Optional
• Spark Detection System..........Optional
• High Speed Abort Gates..........Optional
• High Temperature Operation Components..........Optional
• Custom Color Exterior, Paint Finishes & Coatings..........Optional
