Cleveland Machinery AONE-2VSG Vertical Knee Mill - Manual
Have one to sell?
ConditionUsed
1 available

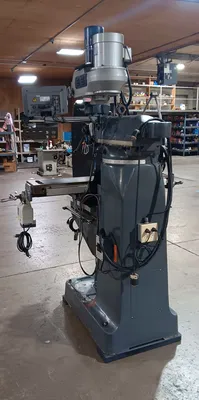

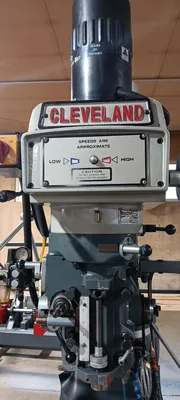

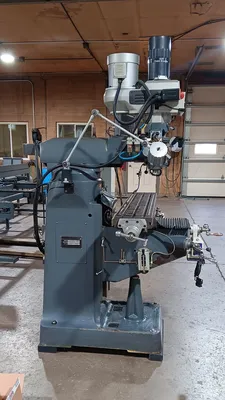

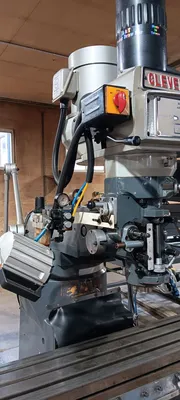

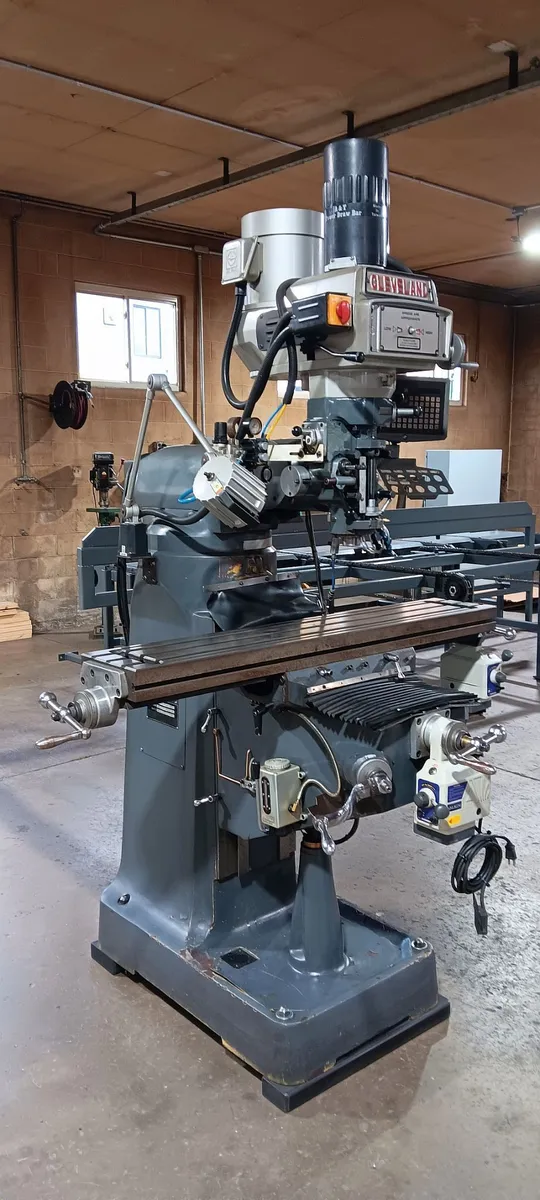

Cleveland Machinery AONE-2VSG Vertical Knee Mill, 2014, used. Features: 49" x 9" table, 36" X travel, 12" Y/Z travel, 3 HP spindle motor, R8 taper, 60-4,200 RPM. Head tilts ±45° front/back, 90° right/left. Dimensions: 101" x 70" x 82". Weight: 2,200 lbs.
SPECIFICATION DETAILS
Model Cleveland AONE-2VSG
Year 2014
Table Size 49" x 9"
Longitudinal Travel (X) 36"
Cross Travel (Y) 12"
Ram/Quill Travel (Z) 12"
Spindle Motor 3 HP
Spindle Taper R8
Spindle Speed Range 60 – 4,200 RPM (Variable Speed)
Head Tilt ±45° Front/Back, 90° Right/Left
Quill Diameter 3.37"
Overall Dimensions (L x W x H) 101" x 70" x 82"
Approx. Weight 2,200 lbs
