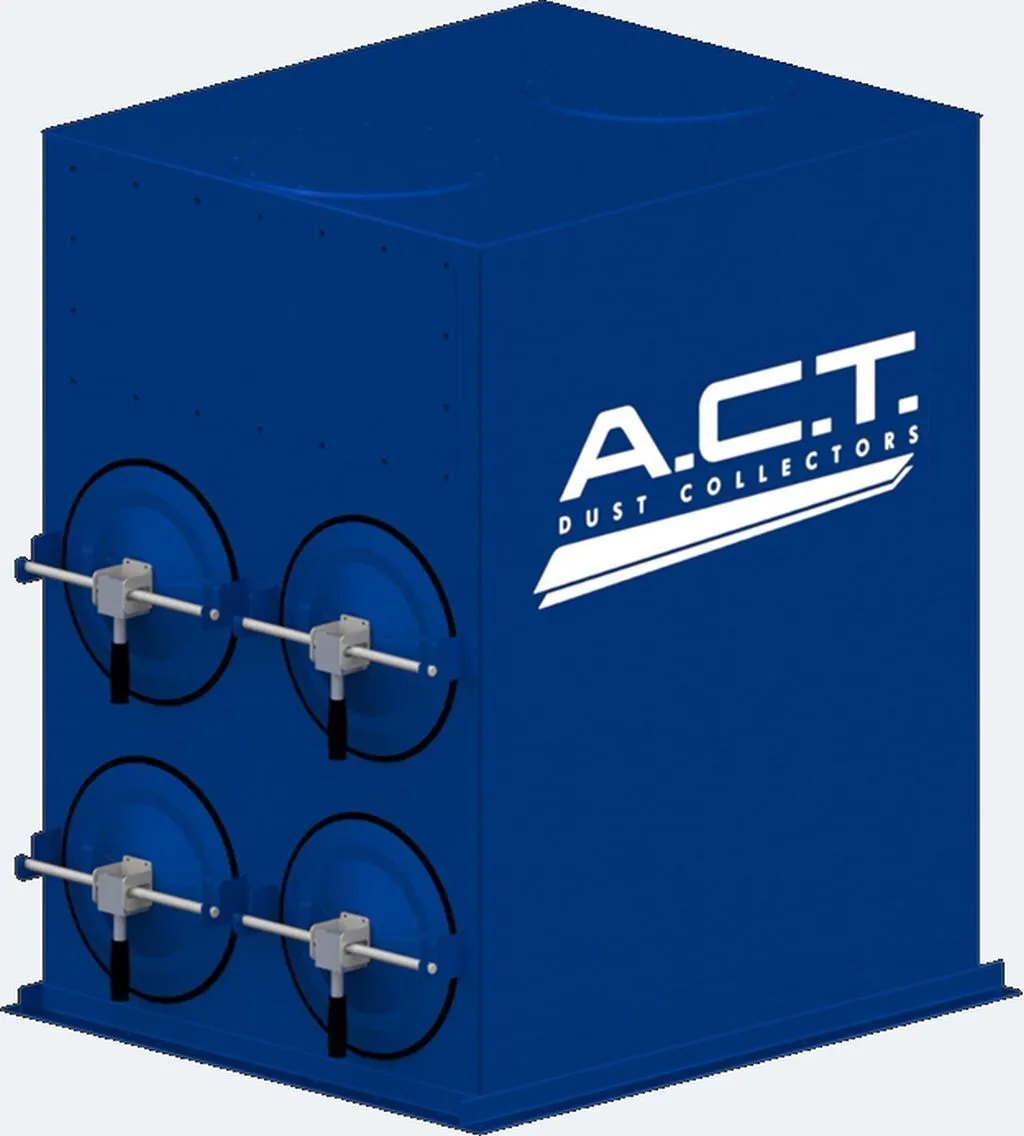

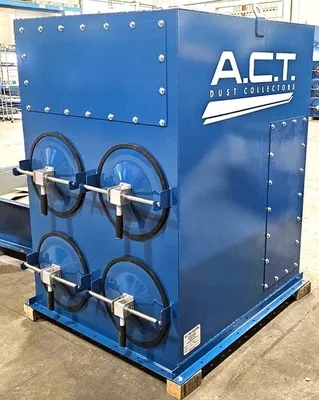

The ACT 2-4BV is a compact dust collector with a small footprint for applications including feed & grain and food processing.

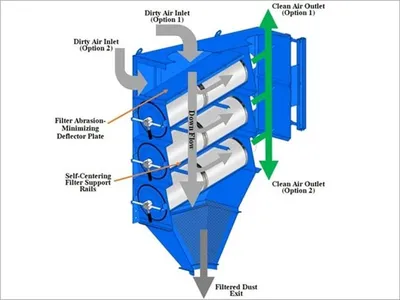

The downward airflow technology of this horizontal cartridge style dust collector, maximizes the airflow in the collector to assist with dust separation. The 1,016 square feet of media in the ACT 2-4BV will help to ensure the dust collection system is operating at optimum performance.
Specifications:
• Height..........62"
• Width..........42"
• Depth..........56"
• # of Filters..........4
• Filter Area..........1,016
• 2,000 CFM
• 5 HP
Standard Features:
• Mild Steel Construction

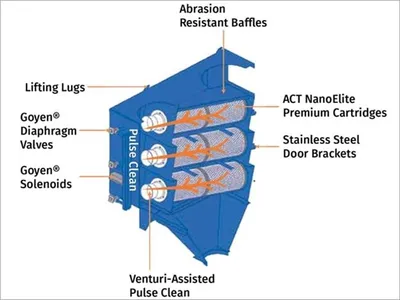

• Venturi-Assisted Pulse Filter Cleaning System
• ACTion-Lock Quick Release Filter Doors
• Inlets (2) Available
• A.C.T. Nano-Elite Nanofiber Cartridges
• Stainless Steel Construction..........Optional
• High Temperature Construction..........Optional
• Explosion Protected Models..........Optional
• Direct Drive Fans..........Optional
• Chamber and Exhaust Silencers..........Optional
• Air Management Modules..........Optional
• Steep-Sided Hopper..........Optional
• Multi-Module Hopper for Single Outlet..........Optional
• Service Platform (OSHA compliant)..........Optional
• Sprinkler Coupler..........Optional
• Alternate Filter Media Options..........Optional
• After Filter Housing..........Optional
• HSPA/ASHRAE Filters..........Optional
• Damper Pack..........Optional
• Bag-In/Bag-Out Kit (Filter & Discharge)..........Optional
• High Temp (MERV 13) Filter..........Optional
• HEPA/ASHRAE Afterfilters..........Optional
Paint System:
• Primed and Painted Interior
• Multi-Coat Paint Finish
• Custom Color..........Optional
• Epoxy Coating..........Optional
Electrical Controls, Gauges & Enclosures:
• Control Box w/Digital Timer in NEMA 4 Enclosure
• Control Panel with Magnetic Starter and Digital Timer Control..........Optional
• Control Panel with Variable Frequency Drive (VFD) and Digital Timer Control..........Optional
• Custom Panels..........Optional
• Solenoid Heater Kit..........Optional
Warranty:
• 10-Year Warranty
Filter Specifications:

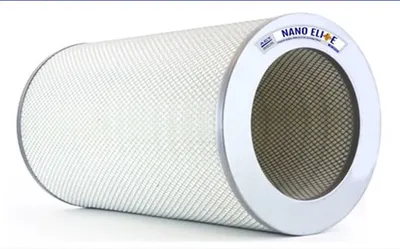

DCF22611 NANO-ELITE FILTER:
• 13.8" x 26"
• Nanofiber
• MERV 15
• 254 Sq. Foot of Media
• 350 Pleats
• Loading Dust: ASHRAE
• Shape: Round
• 200°F Temperature Limit
• Open/Open
• Gasket Top
• Made in the USA
• Heavy Gauge Steel Structural Elements
• 27 filters per pallet
DCF22711 NANO-ELITE FLAME RETARDANT FILTER:
• 13.8" x 26"
• Nanofiber
• MERV 15
• Flame Retardant Coating
• 254 Sq. Foot of Media
• 350 Pleats
• Loading Dust: ASHRAE
• Shape: Round
• Open/Open
• 200°F Temperature Limit
• Gasket Top
• Heavy Gauge Steel Structural Elements
• Made in the USA
• 27 Filters Per Pallet
