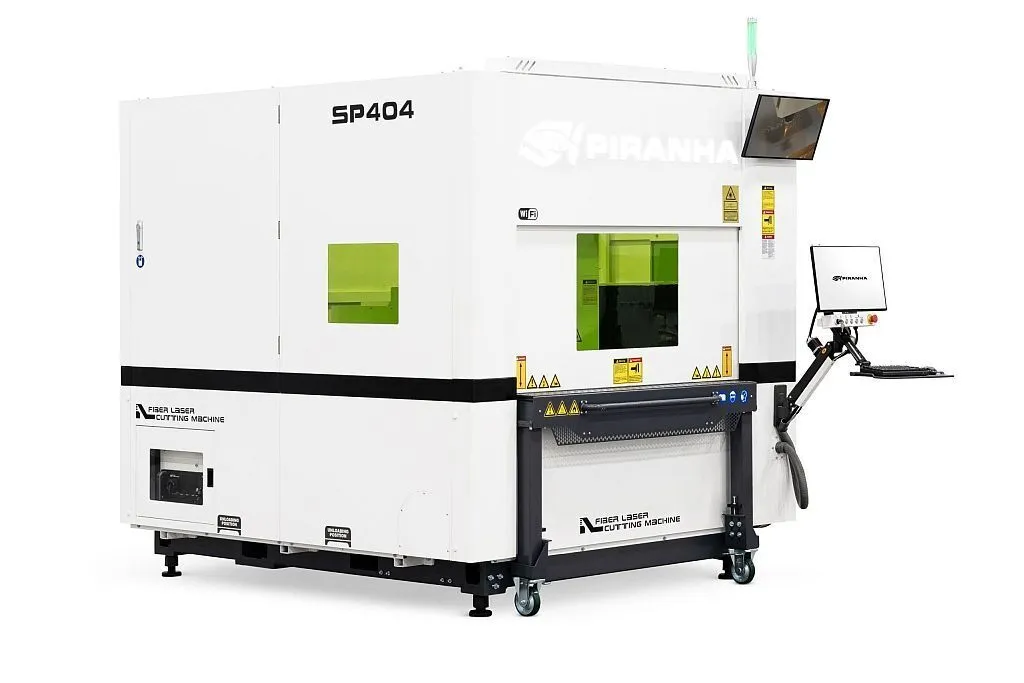

New Piranha SP404 3kW CNC Fiber Laser
Have one to sell?
ConditionNew
1 available
New
Compact Power. Industrial Precision.
The Piranha SP404 CNC Fiber Laser delivers everything you expect from an industrial fiber laser — speed, accuracy, and reliability — in a compact 4′×4′ footprint that fits seamlessly into any shop.
With 3kW or 6 kW of laser power, a rigid steel chassis, and U.S.-based service, the SP404 gives fabricators the precision and uptime they need — without the space, cost, or complexity of larger systems.
Includes everything you need to start cutting:
• Fiber Laser Resonator
• Industrial Chiller
• Dust Collector
• CypCut Software
• Hand Pendant
• Starter Consumables Kit
SP404 CNC Fiber LASER System Highlights:
• Compact single-table design for small-shop efficiency
• 4.43′ × 4.33′ (1350 × 1320 mm) cutting area
• 3 kW or 6 kW solid-state fiber resonator options
• Auto-focus cutting head with precision height sensing
• Graphical CNC control system with CypCut interface
• Helical rack-and-pinion motion system with auto lubrication
• 2,000 IPM (50 m/min) maximum travel rate per axis
• Red diode laser pointer for material alignment
• Automatic cutting-gas control with proportional valve
• Integrated downdraft fume extraction
• Full safety enclosure with interlocks meeting U.S. standards

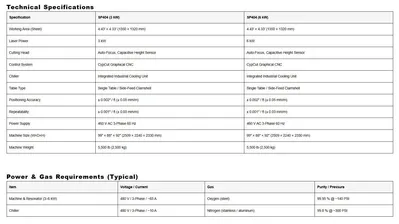

Technical Specifications:
• SP404 (3 kW)
• Working Area (Sheet) .......... 4.43′ × 4.33′ (1350 × 1320 mm)
• Laser Power .......... 3 kW
• Cutting Head .......... Auto-Focus, Capacitive Height Sensor
• Control System .......... CypCut Graphical CNC
• Chiller .......... Integrated Industrial Cooling Unit
• Table Type .......... Single Table / Side-Feed Clamshell
• Positioning Accuracy .......... ± 0.002″ / ft (± 0.05 mm/m)
• Repeatability .......... ± 0.001″ / ft (± 0.03 mm/m)
• Power Supply .......... 460 V AC 3-Phase 60 Hz
• Machine Size (W×D×H) .......... 99″ × 88″ × 92″ (2509 × 2240 × 2330 mm)
• Machine Weight .......... 5,500 lb (2,500 kg)
Power & Gas Requirements (Typical):
Item .......... Voltage / Current .......... Gas .......... Purity / Pressure
• Machine & Resonator (3–6 kW) ..........480 V/3-Phase/~65A .......... Oxygen (steel).......... 99.95 % @ ~140 PSI
• Chiller.......... 480V/3-Phase/~10A.......... Nitrogen (stainless/aluminum).......... 99.8 % @ ~300 PSI
Floor Space & Installation:
• No special foundation required.
• Install on a standard 6″ concrete slab, flat within 0.5″.
• Recommended working envelope: ~9′ × 7′ for service and access.
Budgetary Proposal:
• This information is provided for reference and subject to change without notice.
• A formal proposal with confirmed pricing and specifications will be issued upon request.
Cut Smarter. Cut Stronger.
The Piranha SP404 CNC Fiber Laser delivers the precision, reliability, and power of an industrial system — in a footprint that fits anywhere.
From first cut to full production, it’s backed by real people, real support, and the Piranha name trusted by fabricators nationwide.
Compact Power. Industrial Precision.
The Piranha SP404 CNC Fiber Laser delivers everything you expect from an industrial fiber laser — speed, accuracy, and reliability — in a compact 4′×4′ footprint that fits seamlessly into any shop.
With 3kW or 6 kW of laser power, a rigid steel chassis, and U.S.-based service, the SP404 gives fabricators the precision and uptime they need — without the space, cost, or complexity of larger systems.
Real Application Support, When You Need It
Buying a laser is one thing. Knowing how to get the best results out of it is another. That’s why our team is here to help with real-world cutting advice—like dialing in your settings, working with new materials, and adjusting for the perfect cut. You’ll have experts you can actually talk to—before and after the sale.
Ready for Automation — Now or Later
All of our fiber lasers are built with automation in mind. Whether you want to add material loading and unloading now or down the road, your machine is ready. That means you don’t need to buy a whole new system when it’s time to grow.
Built for Long-Term Value
Some lasers look cheaper—until you start running them. Piranha fiber lasers are designed to last, with fewer breakdowns, less downtime, and real savings on labor. You’ll get more done with fewer headaches—and a faster return on your investment.
Made by People Who Know Fabrication
We don’t just build lasers—we build equipment for real shops like yours. With decades of experience in fabrication, we understand how this laser fits into your entire process, from cutting to forming to finishing. We’re here to help your whole shop run better.
U.S. Service That Actually Shows Up
Need help? You won’t be stuck waiting on overseas tech support or reading through vague manuals. You’ll get fast answers from real people, right here in the U.S.—whether it’s installation, training, or troubleshooting.
Fast Delivery. Quick Setup.
Built for Real-World Fabrication
Key Advantages
Preventive Maintenance Program (Optional)
Protect uptime and ensure consistent cut quality with Piranha’s Preventive Maintenance (PM) Program, delivered by factory-trained Field Service Engineers.
Program Highlights
Imperial
| Sheet-W | 53.15" |
| Sheet-L | 51.97" |
| IPM | 2000 |
| X | 99" |
| Y | 88" |
| Z | 92" |
| Control | CNC |
| Dimensions | 99" × 88" × 92" |
| Weight | 5500Lbs. |
Includes everything you need to start cutting:
• Fiber Laser Resonator
• Industrial Chiller
• Dust Collector
• CypCut Software
• Hand Pendant
• Starter Consumables Kit
SP404 CNC Fiber LASER System Highlights:
• Compact single-table design for small-shop efficiency
• 4.43′ × 4.33′ (1350 × 1320 mm) cutting area
• 3 kW or 6 kW solid-state fiber resonator options
• Auto-focus cutting head with precision height sensing
• Graphical CNC control system with CypCut interface
• Helical rack-and-pinion motion system with auto lubrication
• 2,000 IPM (50 m/min) maximum travel rate per axis
• Red diode laser pointer for material alignment
• Automatic cutting-gas control with proportional valve
• Integrated downdraft fume extraction
• Full safety enclosure with interlocks meeting U.S. standards
Technical Specifications:
• SP404 (3 kW)
• Working Area (Sheet) .......... 4.43′ × 4.33′ (1350 × 1320 mm)
• Laser Power .......... 3 kW
• Cutting Head .......... Auto-Focus, Capacitive Height Sensor
• Control System .......... CypCut Graphical CNC
• Chiller .......... Integrated Industrial Cooling Unit
• Table Type .......... Single Table / Side-Feed Clamshell
• Positioning Accuracy .......... ± 0.002″ / ft (± 0.05 mm/m)
• Repeatability .......... ± 0.001″ / ft (± 0.03 mm/m)
• Power Supply .......... 460 V AC 3-Phase 60 Hz
• Machine Size (W×D×H) .......... 99″ × 88″ × 92″ (2509 × 2240 × 2330 mm)
• Machine Weight .......... 5,500 lb (2,500 kg)
Power & Gas Requirements (Typical):
Item .......... Voltage / Current .......... Gas .......... Purity / Pressure
• Machine & Resonator (3–6 kW) ..........480 V/3-Phase/~65A .......... Oxygen (steel).......... 99.95 % @ ~140 PSI
• Chiller.......... 480V/3-Phase/~10A.......... Nitrogen (stainless/aluminum).......... 99.8 % @ ~300 PSI
Floor Space & Installation:
• No special foundation required.
• Install on a standard 6″ concrete slab, flat within 0.5″.
• Recommended working envelope: ~9′ × 7′ for service and access.
Budgetary Proposal:
• This information is provided for reference and subject to change without notice.
• A formal proposal with confirmed pricing and specifications will be issued upon request.
Cut Smarter. Cut Stronger.
The Piranha SP404 CNC Fiber Laser delivers the precision, reliability, and power of an industrial system — in a footprint that fits anywhere.
From first cut to full production, it’s backed by real people, real support, and the Piranha name trusted by fabricators nationwide.
