New 2025 A.C.T. TLM 315-10 Baghouse Dust Collector
Have one to sell?
ConditionNew
New

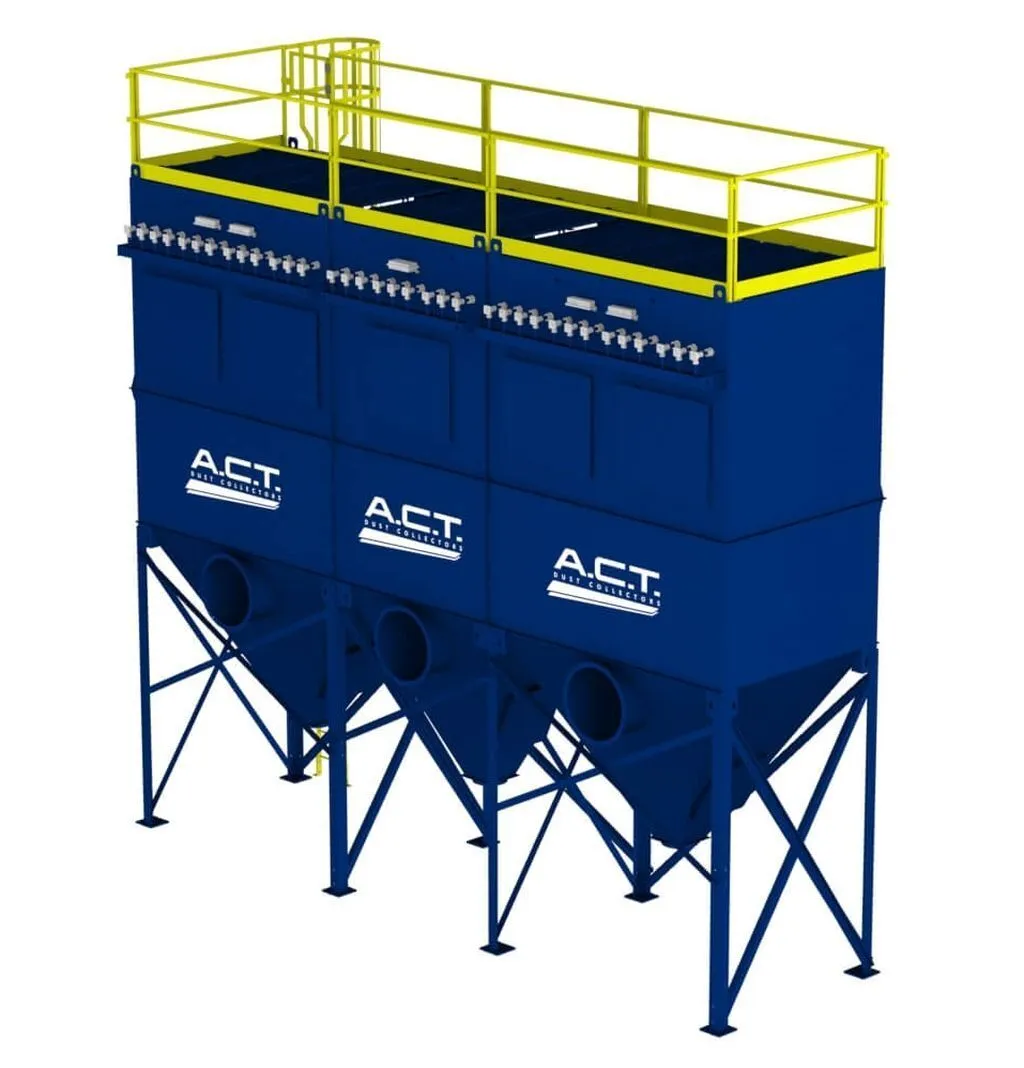

The ACT TLM 315-10 Modular Baghouse is designed to meet the unique requirements of many applications including woodworking, sanding, finishing, food processing, pharmaceutical and other industrial environments.
When it comes to transportation, the dimensions of the TLM Baghouse are such that trucking can be done without oversize permits. Installation is simple and straightforward with the modular design and integral lifting lugs. Overall design is compact to minimize footprint and overall height to fit in the tightest space available.

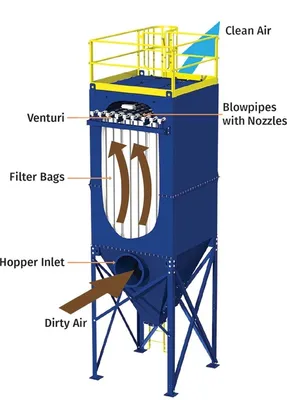

Utilizing computerized simulation software, the pulse-jet cleaning system operational design has been optimized for efficient cleaning and airflow. Hinged filter access doors and our exclusive tool-free bag replacement, allow for the quickest, easiest maintenance.
Specifications:
• Nominal Airflow Range (CFM)..........19,000 - 50,000
• Filter Media (ft2)..........4,948
• # TLM 81 Modules..........1
• # of TLM 117 Modules..........2
• # of Bags..........315
• # of Valves..........35
• Bag Length (ft)..........10'
• Bag Diameter (in)..........6"
• Estimated Shipping Weight (lbs)..........16,600
Filter Specifications:

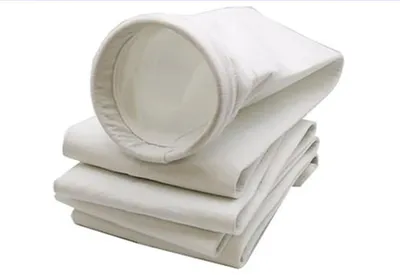

DCB1111 OEM Bag Filter:
• Snap Band Top
• 16 oz. Singed Poly Media
• 6.25" Diameter
• 10 ft long
• Disc Bottom
• 275°F Temperature Limit
• Shape: Round
DCB1112 OEM Bag Filter:
• Snap Band Top
• 14 oz. Aramid Media
• 6.25" Diameter
• 10 ft long
• Tuff Cuff Bottom
• 400°F Temperature Limit
• Shape: Round
DCB1131 OEM Bag Filter:
• Snap Band Top
• 16 oz. Singed Poly Media
• 6.25" Diameter
• 10 ft long
• Disc Bottom
• 275°F Temperature Limit
• Shape: Round

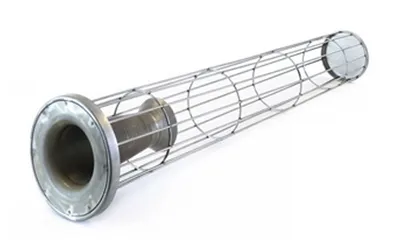

DC79250 Baghouse Cage:
• 10ft long
• Turn Down Flange (U-Channel)
• Top Load with Venturi
• 12 Vertical Wires
• 11 Gage Galvanized
• Cup Bottom
• Shape: Round
Standard Features:

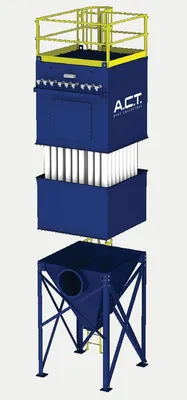

• Modular Design
• Venturi-Assisted Pulse Jet Cleaning
• Automatic Pulse Controls for both Online & DownTime Cleaning
• Exclusive Tool-Free Bag Replacement
• Clean Side, Top Access Snap Band Filter Bags
• Top Load Filter Change Out

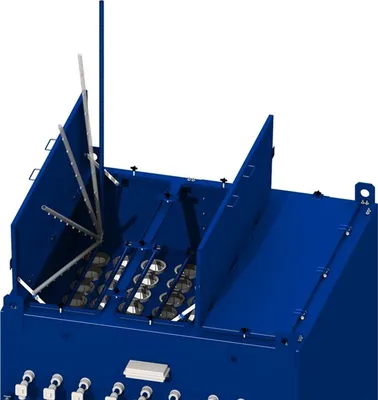

• Hinged Filter Access Doors
• No Confined Space Filter Access
• OSHA Compliant Hand Rail & Cages Access Ladder
• Replaceable Bolt-On Deflection Baffle
• Pressure/Vacuum Rating ±25” W.C.
• Premium Prime & Paint Exterior, High Gloss Enamel
• 16 oz Polyester Filter Bags with Stainless Steel Snapband
• Rotary Airlocks with Hopper, Mount Transitions..........Optional
• Screw Conveyors..........Optional
• Extended/Modified Steel Support Structure..........Optional
• Custom Filter Media Options..........Optional
• Motor/Blower for Specific Performance..........Optional
• Inlet or Outlet Dampers..........Optional
• Exhaust Silencer..........Optional
• Ductwork and Inlet/Outlet Manifolds..........Optional
• Afterfilter Plenums for HEPA or ASHRAE..........Optional
• NFPA 69 Compliant Backdraft Dampers / Explosion Isolation Valves..........Optional
• Explosion Venting..........Optional
• Motor Control Panels (Soft Start, VFD’s, etc.)..........Optional
• Spark Detection System..........Optional
• High Speed Abort Gates..........Optional
• High Temperature Operation Components..........Optional
• Stainless Steel Construction..........Optional
• Custom Color Exterior, Paint Finishes..........Optional
