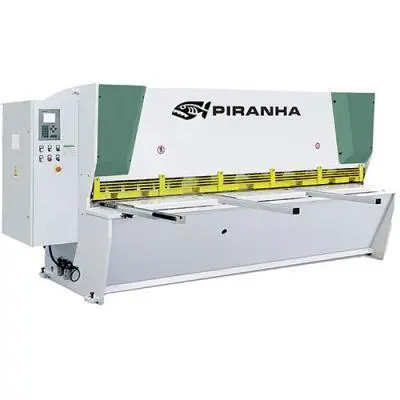

New 2026 1/4" x 8' Piranha Hydraulic Shear

1/4” X 8’ CNC Hydraulic Guillotine Style Shear
• Shearing from 1/4 Inch to One Inch Plate
• High Quality Alloy 2-piece Blades for Long Life
• Delem DAC-360 Control
• CNC Controlled Blade Gap
• CNC Controlled Rake Angle
• Leuze Light Curtain/Photocell
• 3 Front Sheet Supports
• Backgauge AC Servo w/Ball Screw
• Bosch (Rexroth) Hydraulics

GENERAL SPECIFICATIONS
• Capacity: 1/4" Mild Steel
• Capacity: 0.125" Stainless
• Cut Length: 8 Ft
• Rake Angle: 0.5-2 Degree
• Full Strokes No Load: 12 Per Minute
• Back Gauge Length: 39”
• Hold Down Cylinders: 14
• Overall Dimensions: 125” X 64” X 80”
• Oil Capacity: 73 Gallons
• Motor: 10 HP
• Machine Weight: 11,500 LBS
INCLUDES: Delem DAC 360 Controller, CNC Blade Gap Adjustment, CNC Rake Angle Adjustment, Leuze Light, Curtain/Photocell Switch, 3 Front Sheet Supports, Back gauge Driven by AC Motor w/Ball Screw and Linear Rod Guides.

Structural features
• European design
• Guillotine style
• Stress relieved
• Machined in one set up to assure parallelism and verticality of all mounting surfaces
• 3 Front sheet supports
RAM
• 3 Point roller guide system
